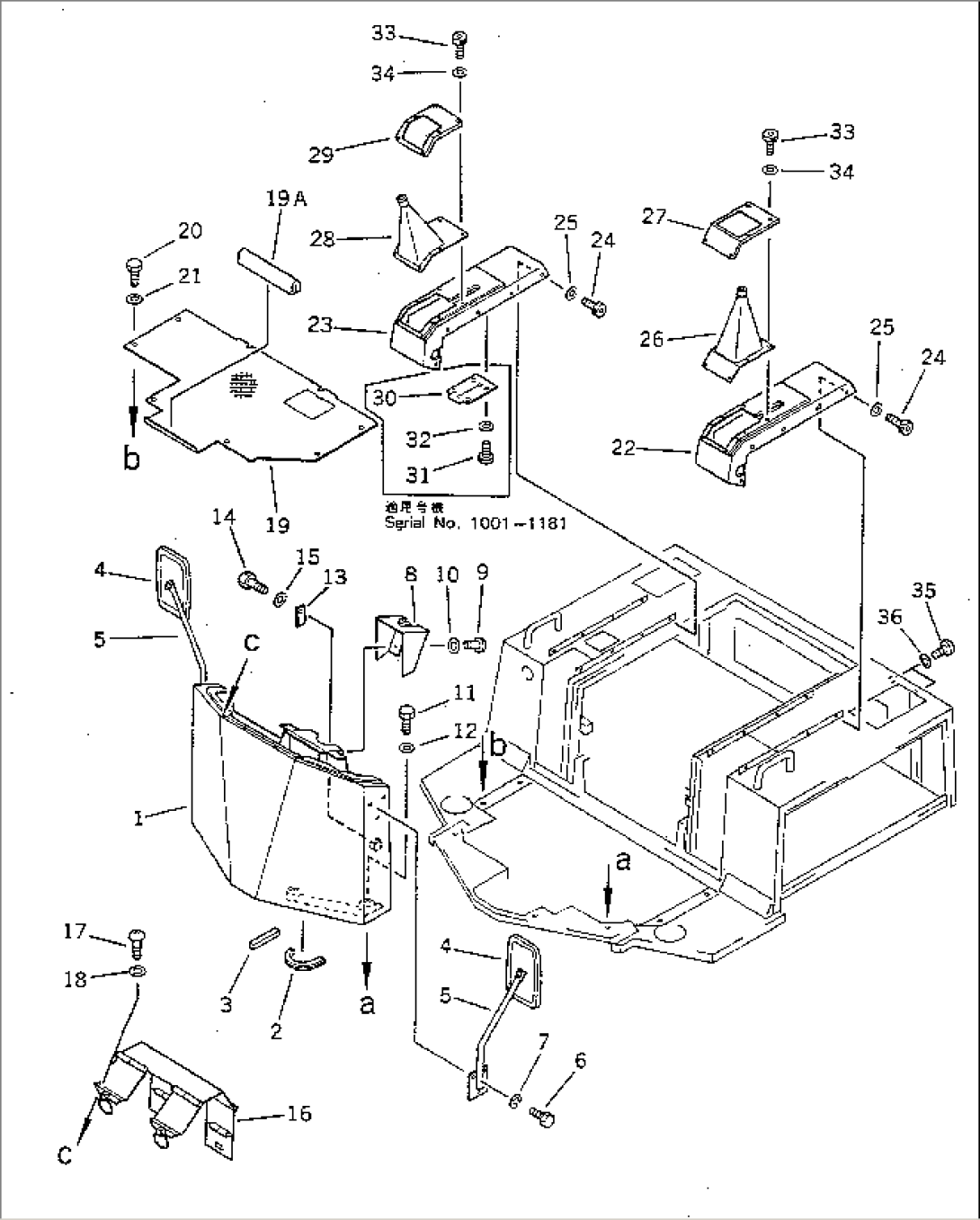

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-54-12310 | DASHBOARD | 2274- | |
| 1 | 362-54-22310 | DASHBOARD | 1001-2273 | |
| 2 | 363-54-12120 | SEAL | 1001- | |
| 3 | 363-54-12550 | SEAL | 1001- | |
| 4 | 362-54-16110 | MIRROR | 1001- | |
| 5 | 361-54-12210 | BRACKET | 2274- | |
| 5 | 362-54-26120 | BRACKET | 1001-2273 | |
| 6 | 01010-51020 | BOLT | 1001- | |
| 7 | 01602-21030 | WASHER,SPRING | 1001- | |
| 8 | 363-54-13150 | COVER | 1001- | |
| 9 | 01238-40612 | SCREW | 1001- | |
| 10 | 01643-30623 | WASHER | 1001- | |
| 11 | 01010-51250 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 361-54-14590 | PLATE | 2274- | |
| 13 | 362-54-24910 | PLATE | 1001-2273 | |
| 14 | 01010-51020 | BOLT | 1001- | |
| 15 | 01643-31032 | WASHER | 1001- | |
| 16 | 362-54-22320 | COVER | 1001- | |
| 17 | 01220-40610 | SCREW | 1001- | |
| 18 | 01641-20608 | WASHER | 1001- | |
| 19 | 362-54-23110 | PLATE | 1001- | |
| 19A | 417-54-11270 | SHEET | 2501- | |
| 20 | 01010-51016 | BOLT | 1001- | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 362-54-23510 | CONSOLE,L.H. | 1001- | |
| 23 | 362-54-23510 | CONSOLE,R.H. | 2274- | |
| 23 | \0\362-54-23520 | CONSOLE,R.H. | 1001-2273 | |
| 24 | 362-54-23530 | BOLT | 1001- | |
| 25 | 362-54-23540 | WASHER | 1001- | |
| 26 | 362-54-23650 | BELLOWS | 1001- | |
| 27 | 362-54-23660 | COVER | 1001- | |
| 28 | 362-54-23610 | BELLOWS | 1001- | |
| 29 | 362-54-23620 | COVER | 1001- | |
| 30 | 362-54-23670 | PLATE | 1001-1181 | |
| 31 | 01220-40410 | SCREW | 1001-1181 | |
| 32 | 362-54-23680 | WASHER | 1001-1181 | |
| 33 | 205-06-62170 | BOLT | 1001- | |
| 34 | 205-06-62190 | WASHER | 1001- | |
| 35 | 01220-40612 | SCREW | 1001- | |
| 36 | 01641-20608 | WASHER | 1001- |
