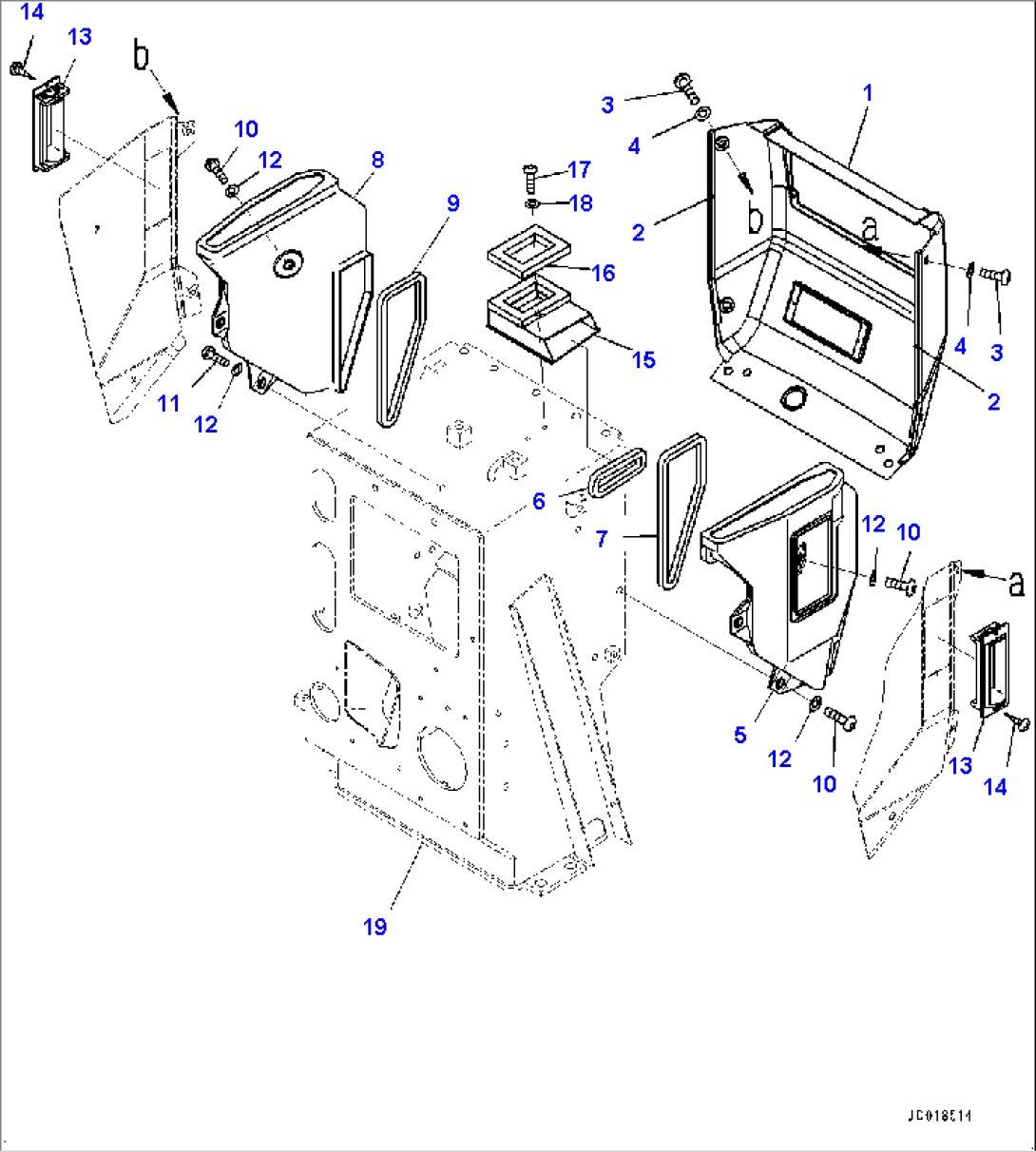

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-28661 | Cover | 11609- | |
| 2 | 14X-911-9240 | Sheet | 11609- | |
| 3 | 01245-00816 | Screw | 11609- | |
| 4 | 01643-70823 | Washer | 11609- | |
| 5 | 14X-54-28310 | Duct | 11609- | |
| 6 | 14X-911-9340 | Sheet | 11609- | |
| 7 | 14X-911-9350 | Sheet | 11609- | |
| 8 | 14X-54-28320 | Duct | 11609- | |
| 9 | 14X-911-9350 | Sheet | 11609- | |
| 10 | 01245-00816 | Screw | 11609- | |
| 11 | 01245-00820 | Screw | 11609- | |
| 12 | 01643-70823 | Washer | 11609- | |
| 13 | 17A-Z11-7161 | Louver | 11609- | |
| 14 | 01370-20308 | Screw | 11609- | |
| 15 | 17A-Z11-7421 | Duct | 11609- | |
| 16 | 17A-Z11-7440 | Sheet | 11609- | |
| 17 | 01245-00816 | Screw | 11609- | |
| 18 | 01643-70823 | Washer | 11609- | |
| 19 | (154-Z11-2131) | Bracket | - |
