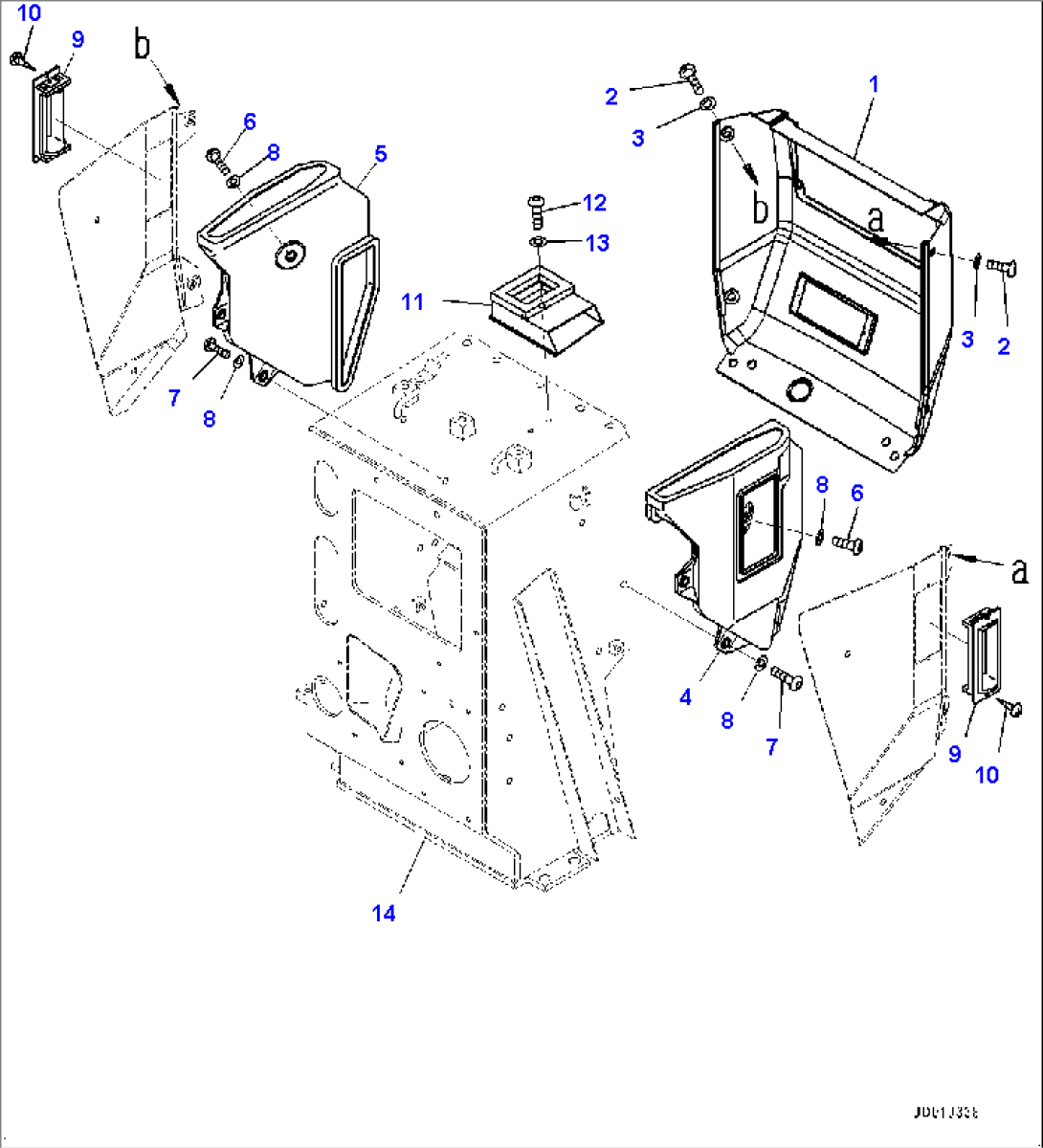

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-28661 | Cover | 11609- | |
| 2 | 01245-00816 | Screw | 11609- | |
| 3 | 01643-70823 | Washer | 11609- | |
| 4 | 14X-54-28310 | Duct | 11609- | |
| 5 | 14X-54-28320 | Duct | 11609- | |
| 6 | 01245-00816 | Screw | 11609- | |
| 7 | 01245-00820 | Screw | 11609- | |
| 8 | 01643-70823 | Washer | 11609- | |
| 9 | 17A-Z11-7161 | Louver | 11609- | |
| 10 | 01370-20308 | Screw | 11609- | |
| 11 | 17A-Z11-7421 | Duct | 11609- | |
| 12 | 01245-00816 | Screw | 11609- | |
| 13 | 01643-70823 | Washer | 11609- | |
| 14 | (17A-Z11-7220) | Cover | - |
