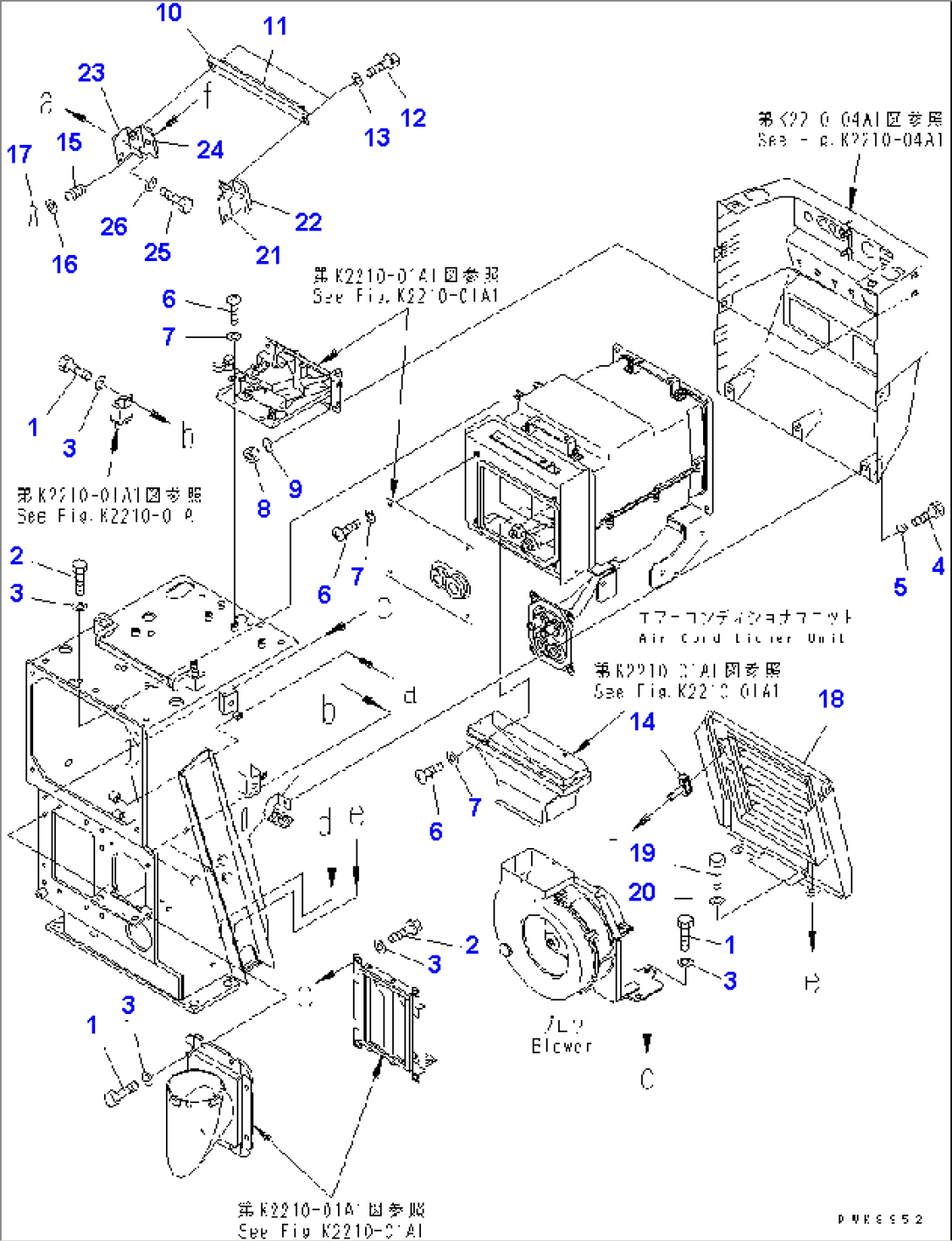

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-80816 | BOLT | B3001- | |
| 2 | 01010-80820 | BOLT | B3001- | |
| 3 | 01643-30823 | WASHER | B3001- | |
| 4 | 01010-81020 | BOLT | B3001- | |
| 5 | 01643-31032 | WASHER | B3001- | |
| 6 | 01220-40610 | SCREW | B3001- | |
| 7 | 01641-20608 | WASHER | B3001- | |
| 8 | 01580-10605 | NUT | B3001- | |
| 9 | 01641-20608 | WASHER | B3001- | |
| 10 | 14X-911-8181 | PLATE | B3001- | |
| 11 | 14X-911-8860 | SHEET | B3001- | |
| 12 | 01010-80816 | BOLT | B3001- | |
| 13 | 01643-30823 | WASHER | B3001- | |
| 14 | 09459-11033 | LOCK | B3001- | |
| 15 | 09459-01614 | SPRING | B3001- | |
| 16 | 01642-21016 | WASHER | B3001- | |
| 17 | 04050-13015 | PIN | B3001- | |
| 18 | 14X-911-8143 | COVER | B3001- | |
| 19 | 01010-80816 | BOLT | B3001- | |
| 20 | 01643-30823 | WASHER | B3001- | |
| 21 | 14X-911-8161 | BRACKET | B3001- | |
| 22 | 14X-911-8960 | SHEET | B3001- | |
| 23 | 14X-911-8171 | BRACKET | B3001- | |
| 24 | 14X-911-8960 | SHEET | B3001- | |
| 25 | 01010-80816 | BOLT | B3001- | |
| 26 | 01643-30823 | WASHER | B3001- |
