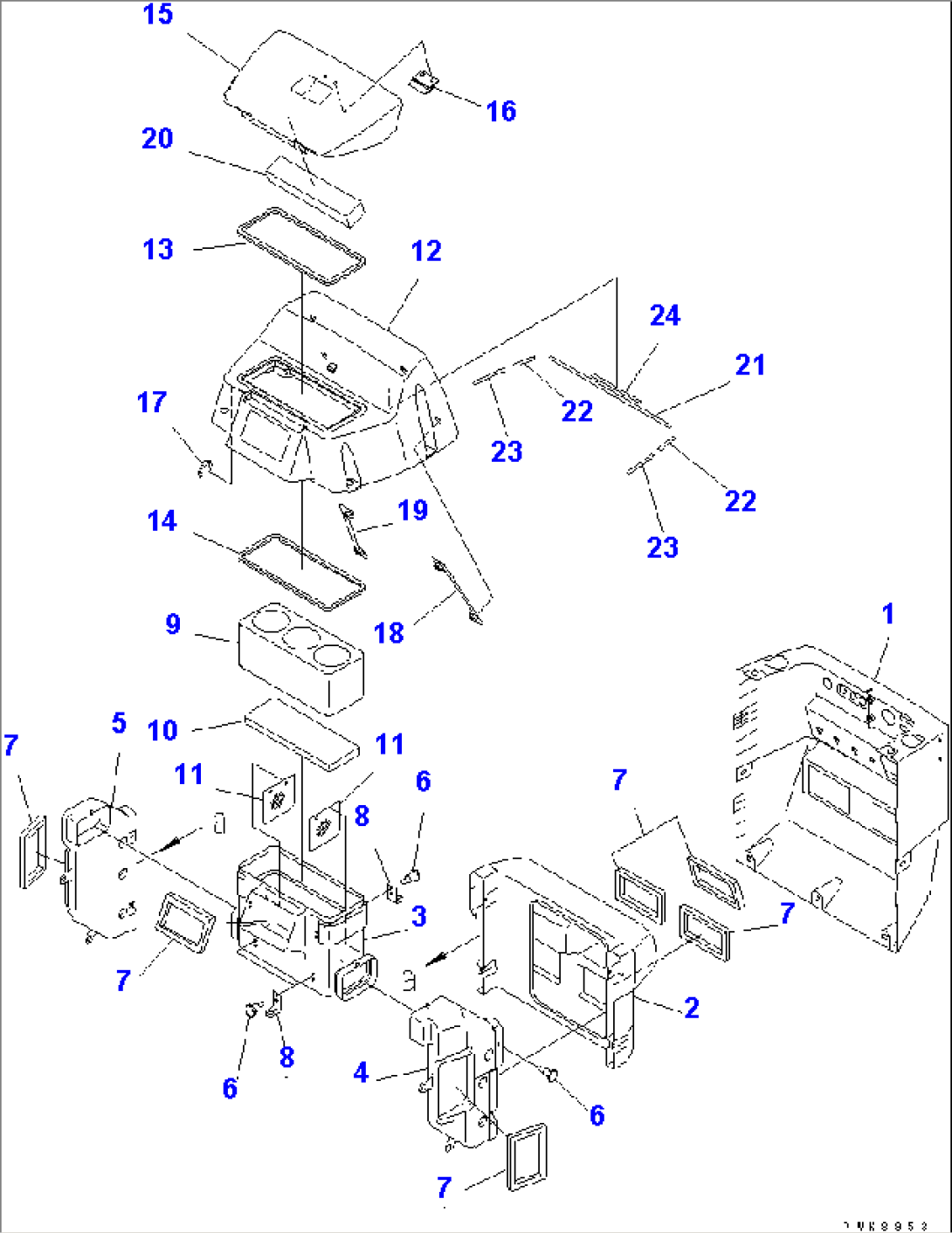

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-54-68211 | DASHBOARD ASS'Y | 1001- | |
| 14X-54-18310 | AIR DUCT ASS'Y | 1001- | ||
| 2 | 14X-54-18320 | DUCT | 1001- | |
| 3 | 14X-54-18330 | DUCT | 1001- | |
| 4 | 14X-54-18340 | DUCT,L.H. | 1001- | |
| 5 | 14X-54-18350 | DUCT,R.H. | 1001- | |
| 6 | 14X-54-18360 | RIVET | 1001- | |
| 7 | 14X-54-18370 | SEAL,1 (BONDED) | 1001- | |
| 8 | 14X-54-18390 | STAY | 1001- | |
| 9 | 14X-54-18410 | CUSHION,1 | 1001- | |
| 10 | 14X-54-18420 | CUSHION,2 | 1001- | |
| 11 | 14X-54-18460 | NET | 1001- | |
| 14X-54-18520 | METER COVER ASS'Y | 1001- | ||
| 12 | \6\ | METER COVER | 1001- | |
| 13 | 14X-54-18571 | PACKING (BONDED) | 1001- | |
| 14 | 14X-54-18580 | SEAL,3 (BONDED) | 1001- | |
| 15 | 14X-54-18530 | METER COVER CAP | 1001- | |
| 16 | 14X-54-18540 | LOCK ASS'Y | 1001- | |
| 17 | 14X-54-18551 | E-RING | 1001- | |
| 18 | 14X-54-19140 | PLATE,L.H. | 1001- | |
| 19 | 14X-54-19150 | PLATE,R.H. | 1001- | |
| 20 | 14X-54-18660 | CUSHION (BONDED) | 1001- | |
| 21 | 14X-54-18670 | FELT (BONDED) | 1001- | |
| 22 | 14X-54-18680 | FELT (BONDED) | 1001- | |
| 23 | 14X-54-18860 | FELT (BONDED) | 1001- | |
| 24 | 14X-54-18870 | FELT (BONDED) | 1001- |
