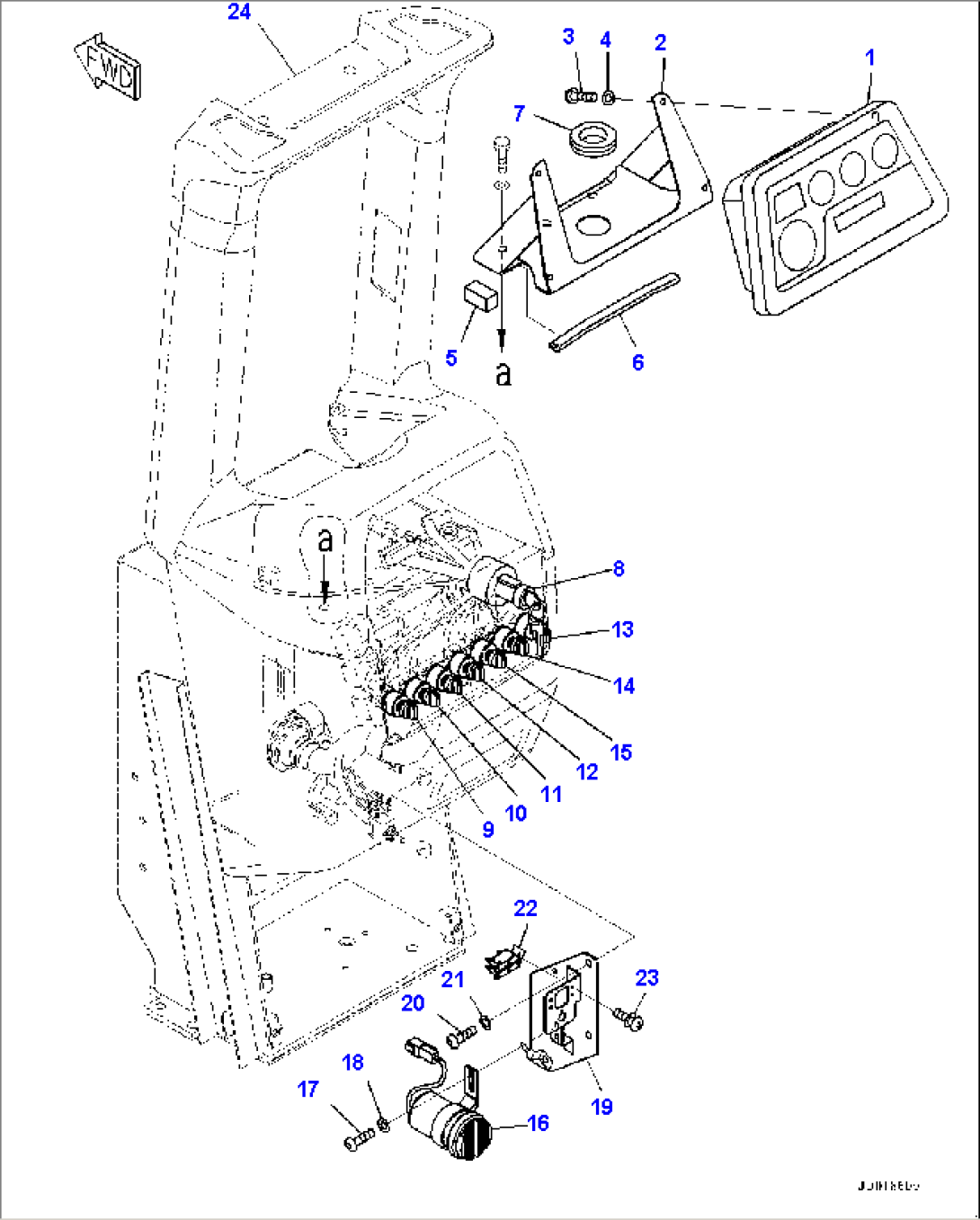

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7831-69-3801 | Monitor Panel | 11647- | |
| 1 | 7831-69-3800 | Monitor Panel | 11609-11646 | |
| 2 | 17A-Z11-7151 | Bracket | 11609- | |
| 3 | 01245-00612 | Screw | 11609- | |
| 4 | 01643-70623 | Washer | 11609- | |
| 5 | 17A-Z11-7660 | Sheet | 11609- | |
| 6 | 17A-Z11-7741 | Seal | 11609- | |
| 7 | 08037-05016 | Grommet | 11609- | |
| 8 | 08086-20000 | Switch, Starting | 11609- | |
| 9 | 14X-06-12160 | Switch, Auto Shift Down | 11609- | |
| 10 | 14X-06-12160 | Switch, Preset Mode | 11609- | |
| 11 | 14X-06-12160 | Switch, Headlamp | 11609- | |
| 12 | 14X-06-12160 | Switch, Rear Lamp | 11609- | |
| 13 | 7824-85-4810 | Switch, Buzzer Cancel | 11609- | |
| 13 | 7824-84-2890 | Knob | 11609- | |
| 14 | 7824-85-4810 | Switch, Information | 11609- | |
| 14 | 7824-84-2890 | Knob | 11609- | |
| 15 | 14X-06-12190 | Switch, Fan Rotation Selector | 11609- | |
| 16 | 198-06-56570 | Buzzer | 11609- | |
| 17 | 01245-00612 | Screw | 11609- | |
| 18 | 01643-70623 | Washer | 11609- | |
| 19 | 17A-Z11-7411 | Bracket | 11609- | |
| 20 | 01245-00816 | Screw | 11609- | |
| 21 | 01643-70823 | Washer | 11609- | |
| 22 | 195-979-8340 | Breaker | 11609- | |
| 23 | 01023-10308 | Screw | 11609- | |
| 24 | (17A-Z11-3811) | Duct | - | |
| (17A-Z11-3811) | Duct | - | ||
| (17A-Z11-3811) | Duct | - |
