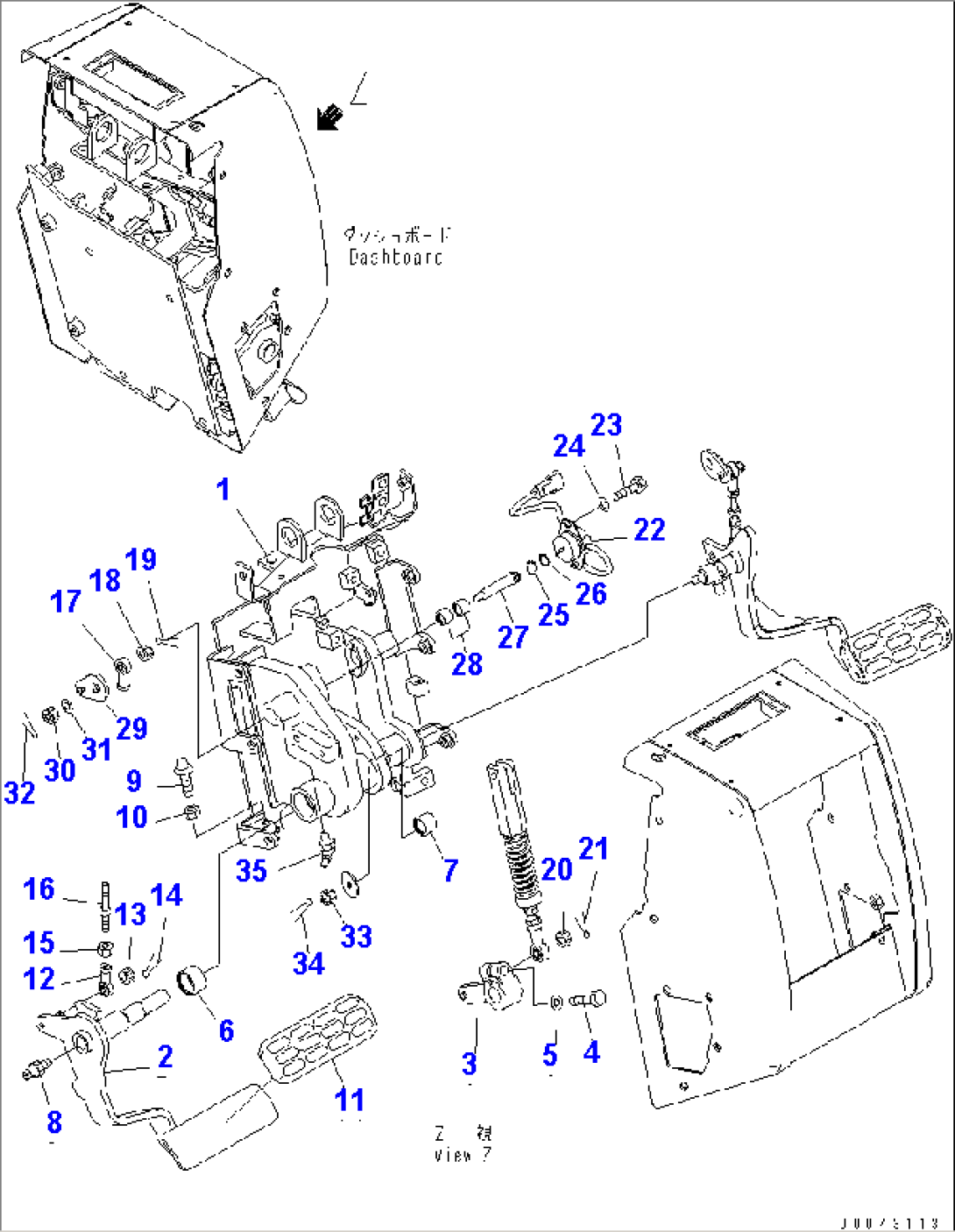

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-43-41112 | BRACKET | 80004-@ | |
| 1 | \0\17A-43-41111 | BRACKET | 80001-80003 | |
| 2 | 17A-43-41121 | PEDAL | 80001-@ | |
| 3 | 17A-43-41140 | LEVER | 80001-@ | |
| 4 | 01010-81245 | BOLT | 80001-@ | |
| 5 | 01643-31232 | WASHER | 80001-@ | |
| 6 | 06124-03020 | BEARING | 80001-@ | |
| 7 | 06124-02020 | BEARING | 80001-@ | |
| 8 | 07020-00000 | FITTING | 80001-@ | |
| 9 | 09311-41237 | BUMPER | 80001-@ | |
| 10 | 01580-11210 | NUT | 80001-@ | |
| 11 | 14X-43-12110 | PEDAL CAP | 80001-@ | |
| 12 | 04250-80847 | END | 80001-@ | |
| 13 | 01590-30809 | NUT | 80001-@ | |
| 14 | 04050-12015 | PIN | 80001-@ | |
| 15 | 01580-10806 | NUT | 80001-@ | |
| 16 | 04248-30808 | ROD | 80001-@ | |
| 17 | 04250-90847 | END | 80001-@ | |
| 18 | 01590-30809 | NUT | 80001-@ | |
| 19 | 04050-12015 | PIN | 80001-@ | |
| 20 | 01593-31008 | NUT | 80001-@ | |
| 21 | 04050-12018 | PIN | 80001-@ | |
| 22 | 7861-93-4130 | SENSOR | 80001-80772 | |
| 23 | 01010-80616 | BOLT | 80001-@ | |
| 24 | 01643-30623 | WASHER | 80001-@ | |
| 25 | 142-43-13180 | SPRING | 80001-@ | |
| 26 | 04064-01610 | RING | 80001-@ | |
| 27 | 17A-43-41182 | SHAFT | 80001-@ | |
| 28 | 06123-01414 | BEARING | 80001-@ | |
| 29 | 17A-43-41172 | PLATE | 80001-@ | |
| 30 | 01590-30809 | NUT | 80001-@ | |
| 31 | 01643-30823 | WASHER | 80001-@ | |
| 32 | 04050-12015 | PIN | 80001-@ | |
| 33 | 01593-31008 | NUT | 80001-80003 | |
| 34 | 04050-12018 | PIN | 80001-80003 | |
| 35 | 07020-00675 | FITTING | 80001-@ |
