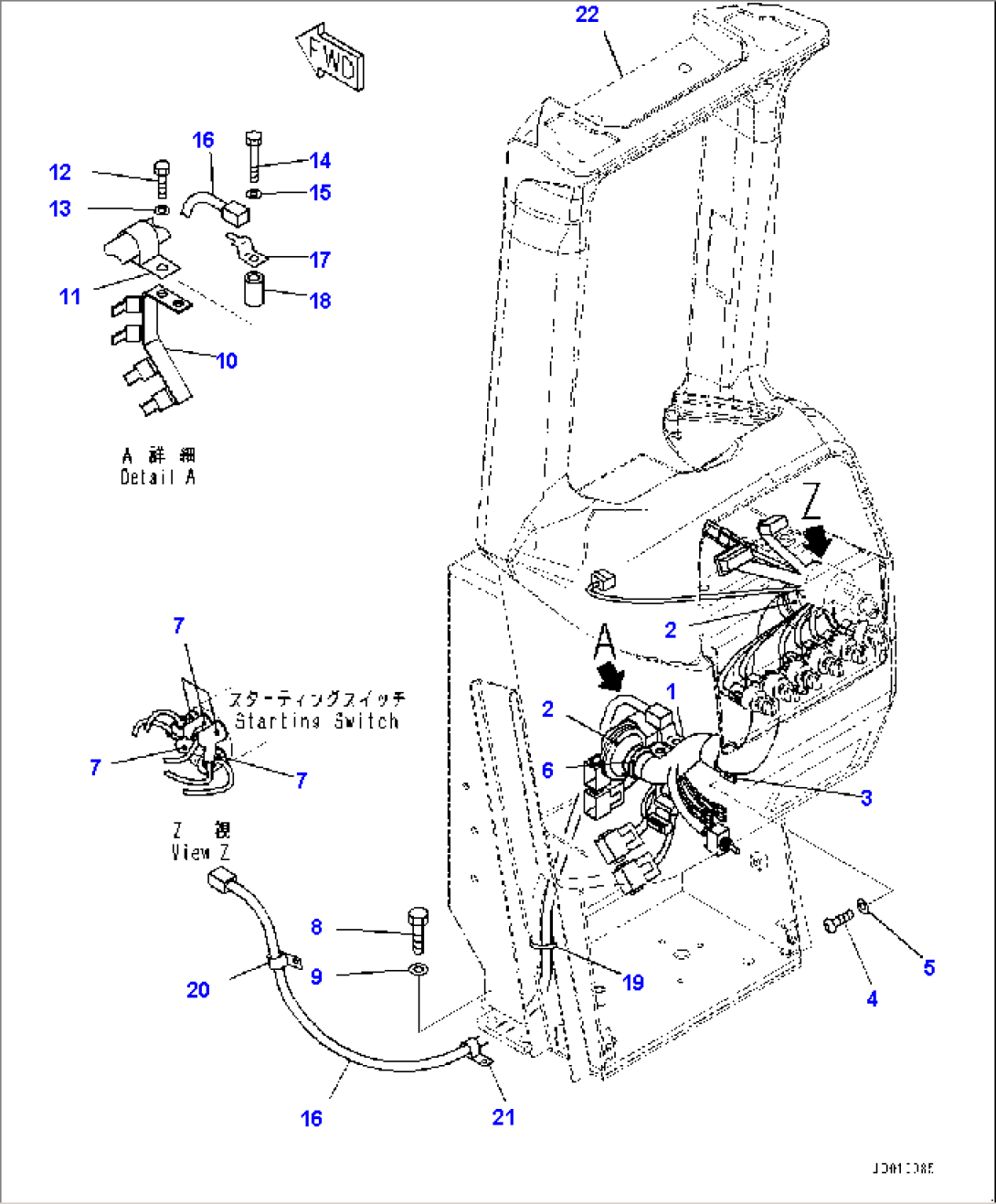

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-71341 | Wiring Harness | 1006- | |
| 2 | 08037-13550 | Grommet | 1006- | |
| 3 | 04434-53412 | Clip | 1006- | |
| 4 | 01245-00816 | Screw | 1006- | |
| 5 | 01643-70823 | Washer | 1006- | |
| 6 | 08034-00414 | Band | 1006- | |
| 7 | 08038-00518 | Cap | 1006- | |
| 8 | 01010-81235 | Bolt | 1006- | |
| 9 | 01643-31232 | Washer | 1006- | |
| 10 | 154-06-71461 | Bracket | 1006- | |
| 11 | 04434-53411 | Clip | 1006- | |
| 12 | 01010-81025 | Bolt | 1006- | |
| 13 | 01643-31032 | Washer | 1006- | |
| 14 | 01010-81060 | Bolt | 1006- | |
| 15 | 01643-31032 | Washer | 1006- | |
| 16 | 154-06-71141 | Wiring Harness | 1006- | |
| 17 | 08193-21012 | Clip | 1006- | |
| 18 | 20Y-03-11220 | Collar | 1006- | |
| 19 | 08034-20519 | Band | 1006- | |
| 20 | 04434-51212 | Clip | 1006- | |
| 21 | 04434-51012 | Clip | 1006- | |
| 22 | (17A-Z11-3811) | Duct | - |
