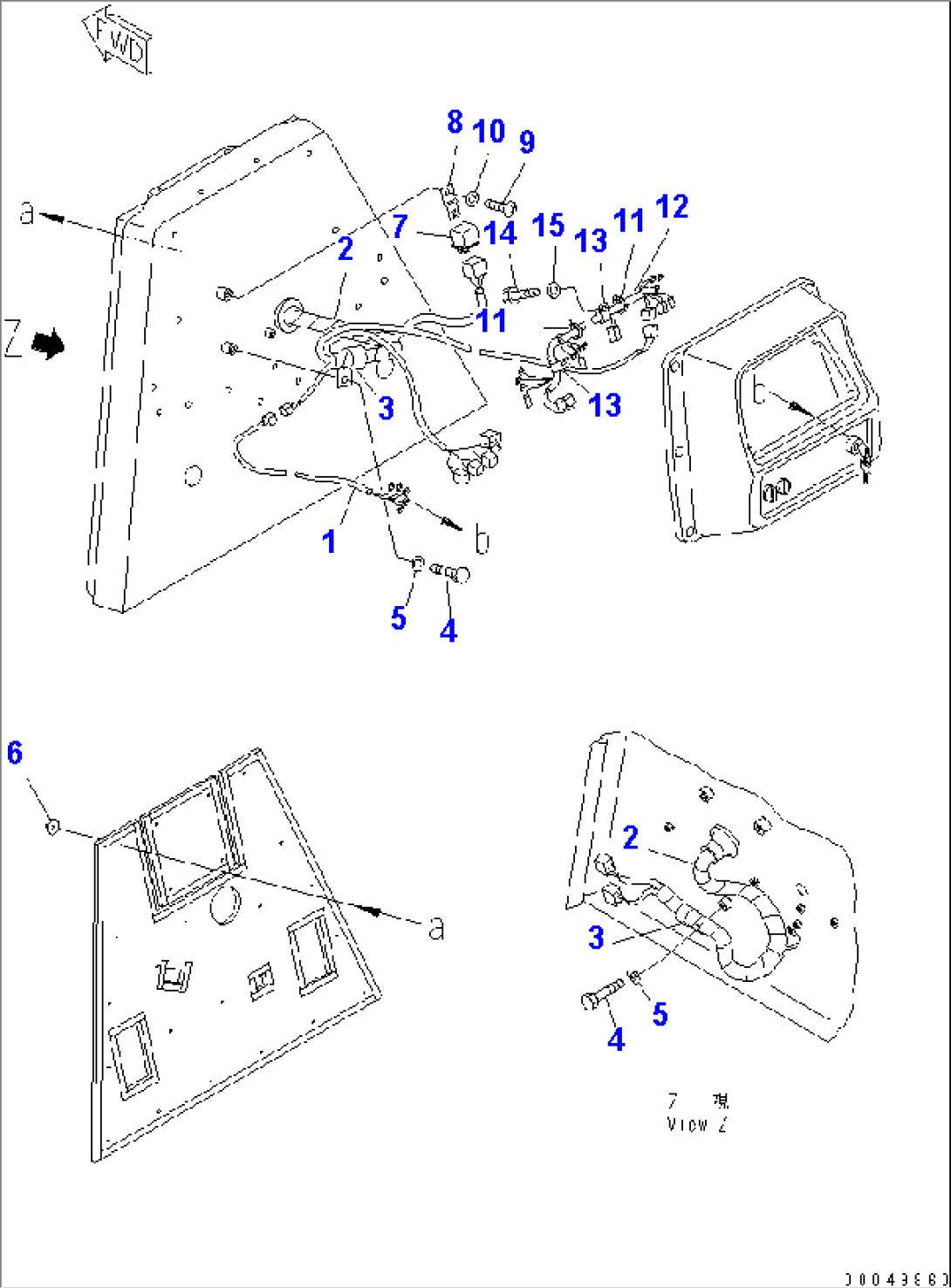

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 124-06-54250 | WIRING HARNESS | 1001-@ | |
| 2 | 134-06-63131 | WIRING HARNESS | 1001-1002 | |
| 3 | 08036-03014 | CLIP | 1001-@ | |
| 4 | 01010-81018 | BOLT | 1001-@ | |
| 5 | 01643-31032 | WASHER | 1001-@ | |
| 6 | 134-06-61612 | LAMP ASS'Y | 1001-@ | |
| 6 | 11Y-06-11560 | BULB, 3W | 1001-@ | |
| 6 | 134-06-61650 | LENS | 1001-@ | |
| 6 | 134-06-61660 | LENS | 1001-@ | |
| 6 | 134-06-61670 | LENS | 1001-@ | |
| 7 | 363-06-31130 | RELAY | 1001-@ | |
| 8 | 287-06-16420 | BRACKET | 1001-@ | |
| 9 | 01220-40512 | SCREW | 1001-@ | |
| 10 | 01641-20508 | WASHER | 1001-@ | |
| 11 | 08034-00519 | BAND | 1001-1002 | |
| 12 | 134-06-61530 | WIRING HARNESS | 1001-@ | |
| 13 | 08036-01414 | CLIP | 1001-@ | |
| 14 | 01010-80816 | BOLT | 1001-@ | |
| 15 | 01643-30823 | WASHER | 1001-@ |
