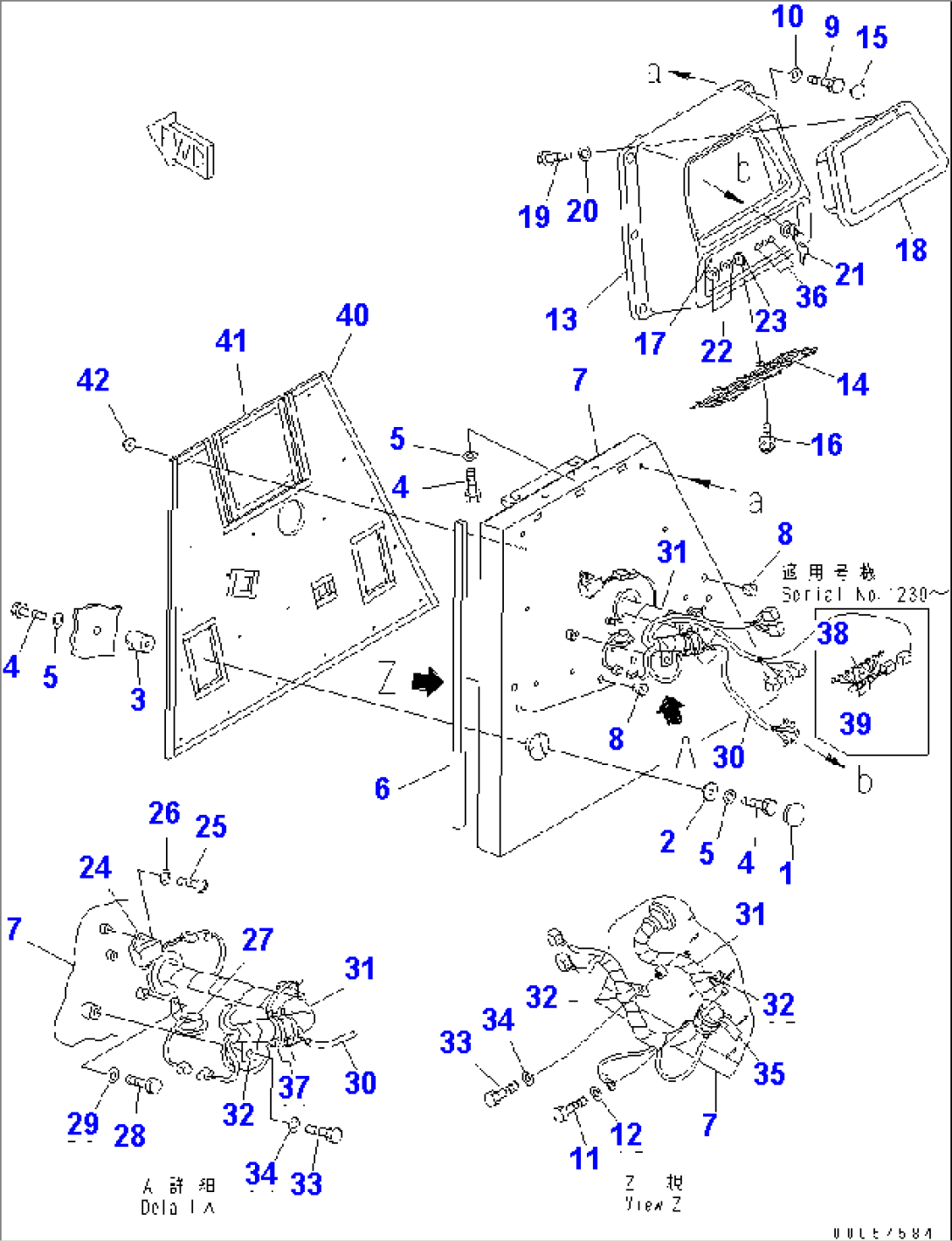

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-12590 | CAP | 1001- | |
| 2 | 134-54-68220 | COLLAR | 1001- | |
| 3 | 134-54-68190 | SPACER | 1001- | |
| 4 | 01010-81225 | BOLT | 1001- | |
| 5 | 01643-31232 | WASHER | 1001- | |
| 6 | 14X-54-12940 | SEAL | 1001- | |
| 7 | 134-54-68111 | COVER | 1001- | |
| 8 | 07049-01215 | PLUG | 1001- | |
| 8 | 07049-01215 | PLUG,(WITH HIGH MOUNT FOOT REST) | 1001- | |
| 9 | 01010-80820 | BOLT | 1001- | |
| 10 | 01643-30823 | WASHER | 1001- | |
| 11 | 01010-80610 | BOLT | 1001- | |
| 12 | 01643-30623 | WASHER | 1001- | |
| 13 | 134-54-69121 | DASHBOARD | 1166- | |
| 13 | \0\134-54-69120 | DASHBOARD | 1001-1165 | |
| 14 | 14X-54-19120 | COVER | 1001- | |
| 15 | 14X-54-19130 | CAP | 1001- | |
| 16 | 14X-54-19170 | BOLT | 1001- | |
| 17 | 134-54-61661 | PANEL | 1001- | |
| 18 | (7831-68-1000) | PANEL ASS'Y | 1001- | |
| 19 | 01010-80616 | BOLT | 1001- | |
| 20 | 01643-30623 | WASHER | 1001- | |
| 21 | 08086-10000 | SWITCH | 1001- | |
| 22 | 14X-06-12160 | SWITCH | 1001- | |
| 23 | 14X-06-12190 | SWITCH | 1001- | |
| 24 | 423-06-11212 | TIMER, BI-METAL | 1001- | |
| 25 | 01220-40512 | SCREW | 1001- | |
| 26 | 01641-20508 | WASHER | 1001- | |
| 27 | 14X-06-22150 | BUZZER ASS'Y | 1168- | |
| 27 | 14X-06-12150 | BUZZER ASS'Y | 1001-1167 | |
| 28 | 01010-80612 | BOLT | 1001- | |
| 29 | 01643-30623 | WASHER | 1001- | |
| 30 | 124-06-54250 | WIRING HARNESS | 1001- | |
| 31 | 134-06-64262 | WIRING HARNESS | 1168- | |
| 31 | 134-06-64261 | WIRING HARNESS | 1001-1167 | |
| 32 | 08036-03014 | CLIP | 1001- | |
| 33 | 01010-81018 | BOLT | 1001- | |
| 34 | 01643-31032 | WASHER | 1001- | |
| 35 | 08034-00519 | BAND | 1001- | |
| 36 | 134-06-61612 | LAMP ASS'Y | 1168- | |
| 36 | 134-06-61611 | LAMP ASS'Y | 1001-1167 | |
| 36 | 11Y-06-11560 | BULB, 3W | 1168- | |
| 36 | 134-06-61650 | LENS,1 | 1168- | |
| 36 | 134-06-61621 | LAMP,1 | 1001-1167 | |
| 36 | 08102-12403 | BULB, 3W | 1001-1167 | |
| 36 | 134-06-61660 | LENS,2 | 1168- | |
| 36 | 134-06-61631 | LAMP,2 | 1001-1167 | |
| 36 | 08102-12403 | BULB, 3W | 1001-1167 | |
| 36 | 134-06-61670 | LENS,3 | 1168- | |
| 36 | 134-06-61641 | LAMP,3 | 1001-1167 | |
| 36 | 08102-12403 | BULB, 3W | 1001-1167 | |
| 37 | 08034-00519 | BAND | 1001- | |
| 38 | 08023-04007 | TUBE | 1239- | |
| 39 | 08034-00414 | BAND | 1239- | |
| 40 | 134-54-68171 | ABSORBER | 1001- | |
| 41 | 134-54-68180 | ABSORBER | 1001- | |
| 42 | 124-A62-1920 | CAP | 1001- |
