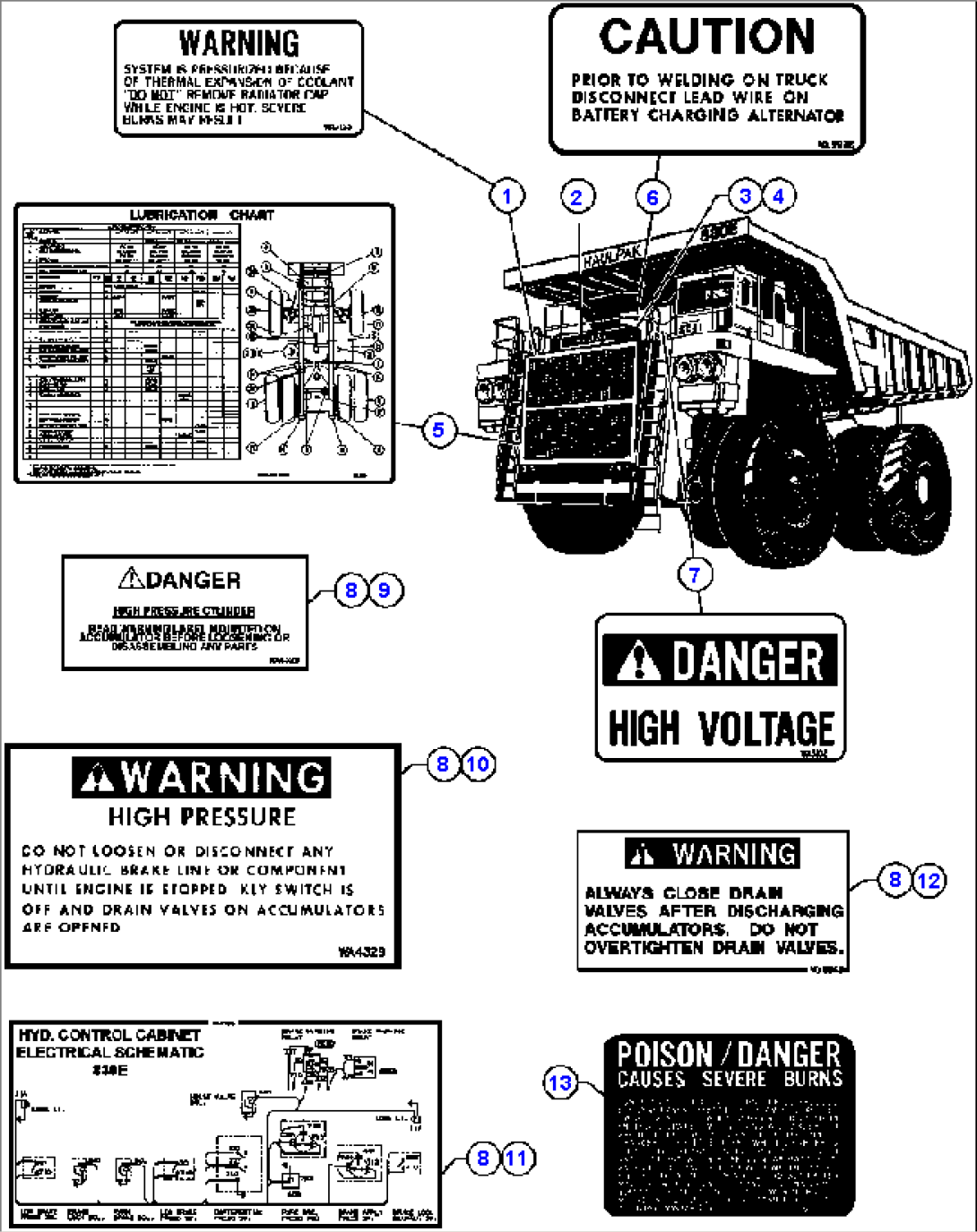

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA3123 | PLATE, CAUTION RAD. PRESSURE (TOP GRILLE HOUSING)(1) | | |
| 2 | WA4974 | DECAL, "HAULPAK" - FRONT GRILLE HOUSING | | |
| 3 | LW45387 | DECAL, STRIP (FRONT GRILLE HOUSING) | | |
| 4 | WA6665 | DECAL, "830E" (SIDE GRILLE HOUSING) | | |
| 5 | WB2100 | LUBE CHART - R.H. COVER AT LADDER | | |
| 6 | WA9998 | PLATE, CAUTION - WELDING ON TRUCK | | |
| 6 | | (INSIDE CONTROL CABINET DOORS) | | |
| 7 | WA3108 | PLATE, WARNING HIGH VOLTAGE (INSIDE | | |
| 7 | | CONTROL CABINET LEFT DOOR & BLOWN GRID DOOR) (1) | | |
| 8 | | BRAKE CABINET | | |
| 9 | WA4328 | PLATE, DANGER - HIGH PRESSURE CYLINDER | | |
| 9 | | (INSIDE BRAKE CABINET DOORS) (2) | | |
| 10 | WA4329 | PLATE, WARNING - HIGH PRESSURE HYDRAULIC | | |
| 10 | | (INSIDE BRAKE CABINET DOORS) (2) | | |
| 11 | WA9780 | DECAL, BRAKE CAB. ELECT. SCHEMATIC | | |
| 12 | WA6668 | PLATE, WARNING - ACCUM. DRAIN VALVES | | |
| 12 | | (ON BACK WALL OF BRAKE CABINET) (2) | | |
| 13 | WA3101 | PLATE, DANGER BATTERY FUMES/ACID | | |
| NS|19 | | NOTE: (1) USE DC9822 DRIVE SCREW AS REQUIRED. | | |
| NS|20 | | (2) USE WA3134 DRIVE SCREW AS REQUIRED. | | |
