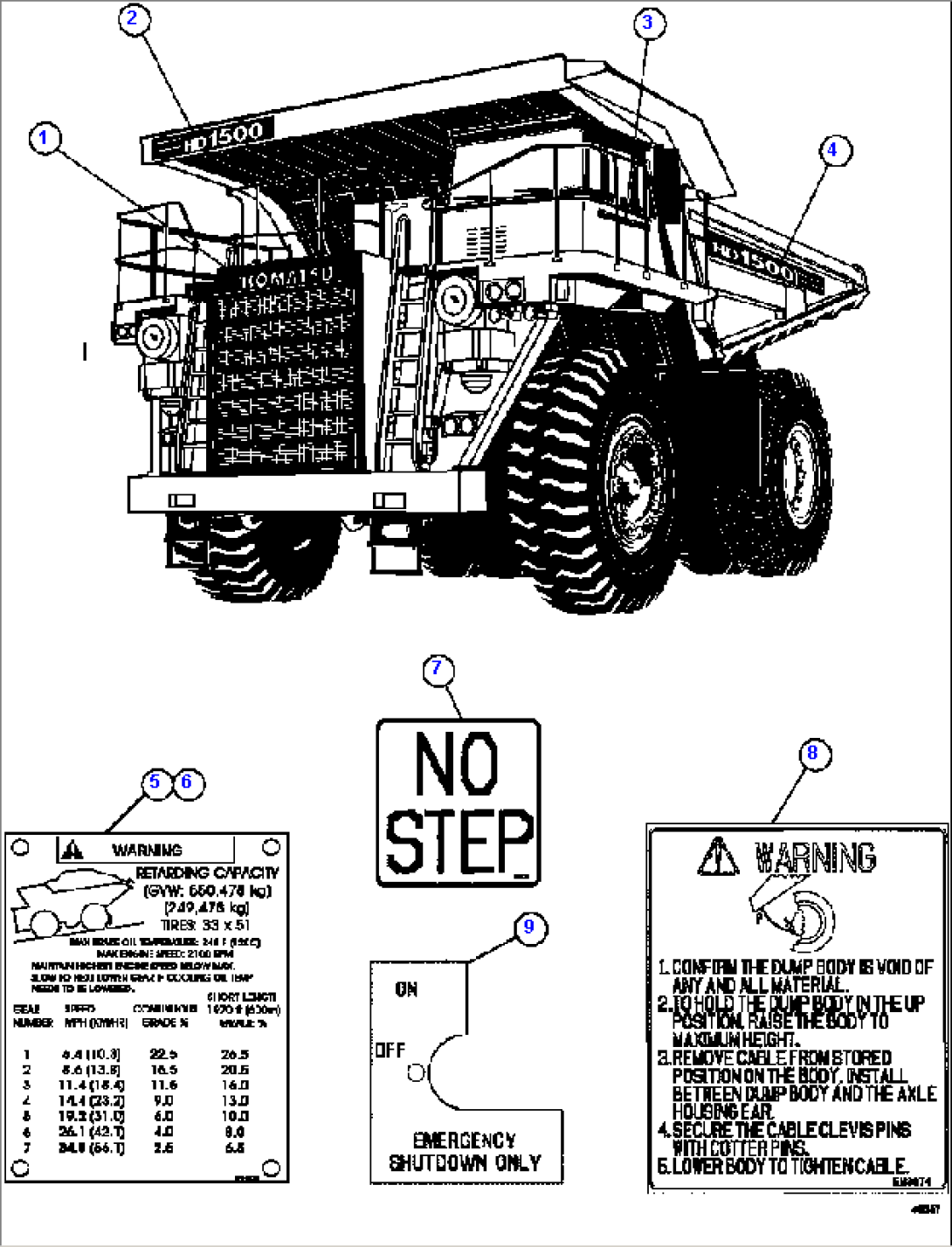

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09690-C0900 | DECAL, KOMATSU | ||
| 2 | EK9429 | DECAL, HD1500 | ||
| 3 | 09690-C0560 | DECAL, KOMATSU (LH DOOR ONLY) | ||
| 4 | EK9437 | DECAL, HD1500 | ||
| 5 | EG4433 | CHART, GRADE SPEED (RH INSIDE FRONT OF CAB) | ||
| 6 | MM0347 | SCREW, MACHINE - M5 (CHART MOUNTING) | ||
| 7 | EM3671 | DECAL, NO STEP | ||
| 8 | EM3674 | DECAL, DAMP BODY RETENTION | ||
| 9 | TZ6931 | TITLE PLATE, EMERGENCY SHUTDOWN ONLY (GROUND LEVEL SWITCH) | ||
| NS|10 | NOTE: NS = NOT SHOWN | |||
| NS|11 | 561-93-6A110 | PLATE, TRANS FILL INDICATOR (TRANSMISSION FILL TUBE) |
