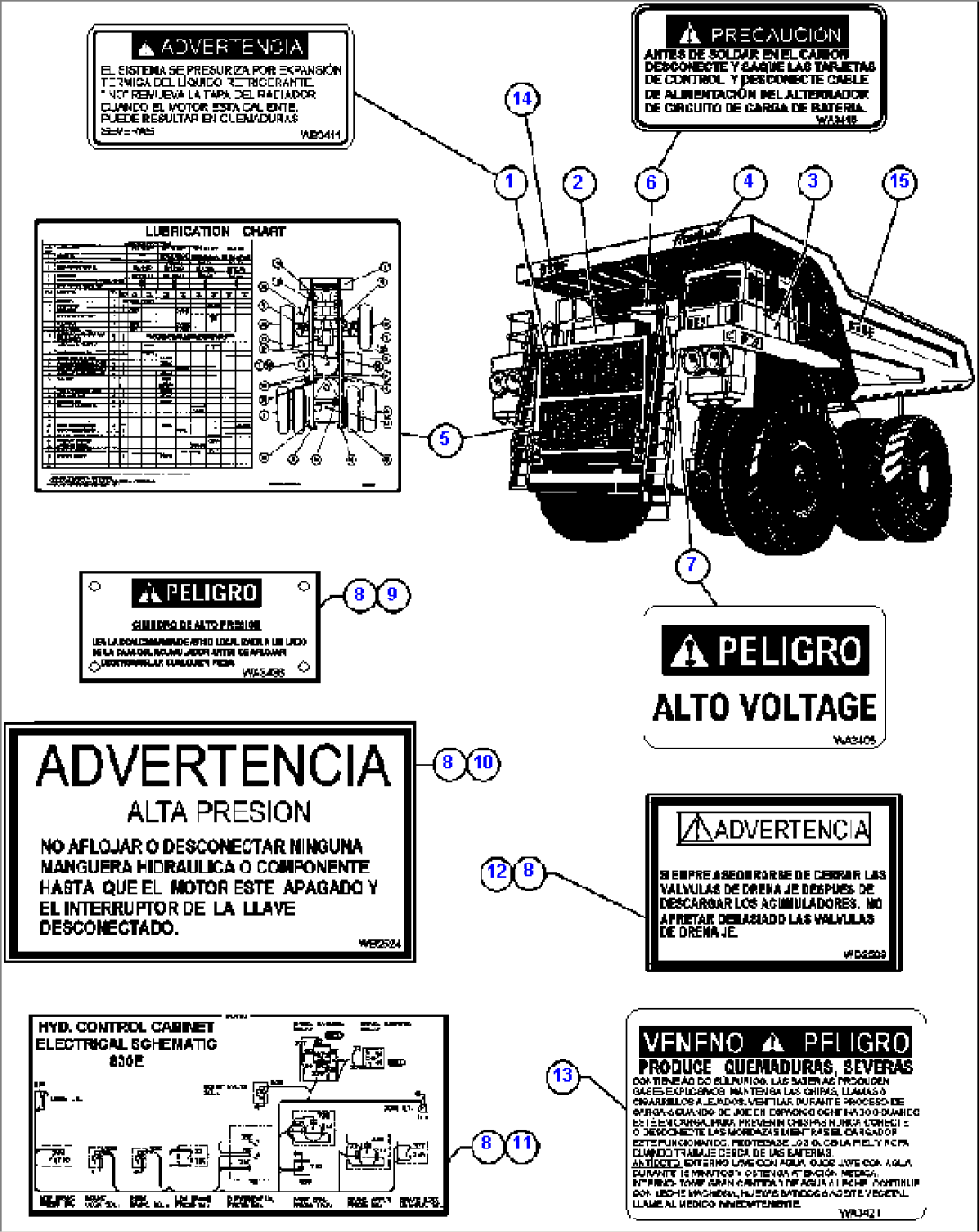

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA3411 | PLATE, RADIATOR PRESSURE WARNING (TOP OF GRILLE) (1) | | |
| 2 | 09690-C1120 | DECAL, KOMATSU (WHITE LETTERING) (FRONT OF GRILLE) | | |
| 2 | 09690-B1120 | DECAL, KOMATSU (BLACK LETTERING) (FRONT OF GRILLE) | | |
| 3 | 09690-C0560 | DECAL, KOMATSU (WHITE LETTERING) (BEHIND DRIVER'S DOOR) | | |
| 3 | 09690-B0560 | DECAL, KOMATSU (BLACK LETTERING) (BEHIND DRIVER'S DOOR) | | |
| 4 | WB2307 | DECAL, HAULPAK (L.H. FRONT OF CANOPY) | | |
| 5 | WB2601 | CHART, LUBE (NEXT TO R.H. LADDER) (2) | | |
| 6 | WA3415 | PLATE, WELDING CAUTION (INSIDE CONTROL CABINET DOORS) (1) | | |
| 7 | WA3405 | PLATE, HIGH VOLTAGE DANGER (INSIDE CONTROL CABINET | | |
| 7 | | & BLOWN GRID) (1) | | |
| 8 | | INSIDE HYDRAULIC BRAKE CABINET | | |
| 9 | WA3436 | PLATE, HIGH PRESSURE CYLINDER DANGER (2) | | |
| 10 | WB2524 | PLATE, HIGH PRESSURE WARNING (2) | | |
| 11 | WB2651 | DECAL, ELECTRICAL SCHEMATIC | | |
| 12 | WB2509 | PLATE, DRAIN VALVES WARNING (2) | | |
| 13 | WA3421 | PLATE, BATTERY FUMES/ACID DANGER (TOP OF BATTERY BOX) (1) | | |
| 14 | WA6666 | DECAL, 830E (R.H. FRONT OF CANOPY) | | |
| 15 | WB2404 | DECAL, 830E (BOTH SIDES OF BODY) | | |
| NS|19 | | NOTE: NS = NOT SHOWN | | |
| NS|20 | WA6550 | PLATE, NEGATIVE GROUND (TOP OF BATTERY BOX) (1) | | |
| NS|21 | WA6672 | DECAL, ON/OFF (SIDE OF BATTERY BOX) | | |
| NS|22 | WB0762 | CHART, GRADE SPEED (L.H. INSIDE FRONT OF CAB) (2) | | |
| NS|23 | | NOTE: (1) USE DC9822 DRIVE SCREW AS REQUIRED. | | |
| NS|24 | | (2) USE WA3134 DRIVE SCREW AS REQUIRED. | | |
