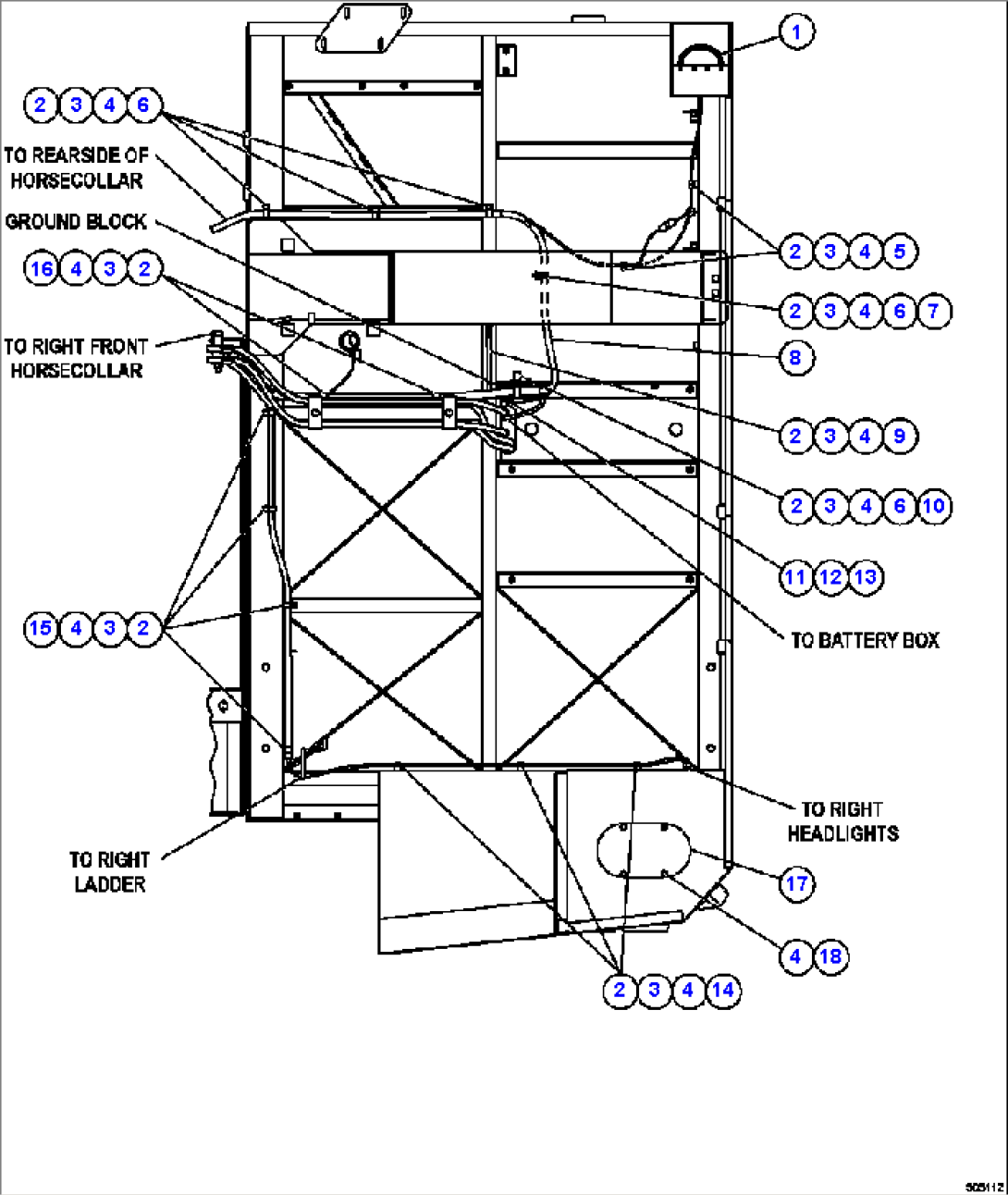

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AK7503 | LIGHT, FLOOD (SEE INDEX) | ||
| 2 | MM0461 | FLAT WASHER - M10 | ||
| 3 | MM0471 | LOCKWASHER - M10 | ||
| 4 | MM0036 | CAPSCREW - M10 X 1.50 X 20 | ||
| 5 | VN9907 | CLAMP, VINYL - 5/8" I.D. | ||
| 6 | TC6058 | CLAMP, VINYL - 1 1/2" I.D. | ||
| 7 | 426-06-11570 | BRACKET | ||
| 8 | EH5029 | HARNESS, DECK - R.H. | ||
| 9 | VN5153 | WIRE | ||
| 10 | EJ8015 | PLATE | ||
| 11 | MM0459 | FLAT WASHER - M6 | ||
| 12 | MM0469 | LOCKWASHER - M6 | ||
| 13 | MM0046 | CAPSCREW - M6 X 1.00 X 40 | ||
| 14 | TG2562 | CLAMP, VINYL - 1/2" I.D. | ||
| 15 | TF6925 | CLAMP, VINYL - 3/4" I.D. | ||
| 16 | VN9908 | CLAMP, VINYL - 1" I.D. | ||
| 17 | EG6689 | SHEET, COVER | ||
| 18 | MM0704 | FLAT WASHER - M10 |
