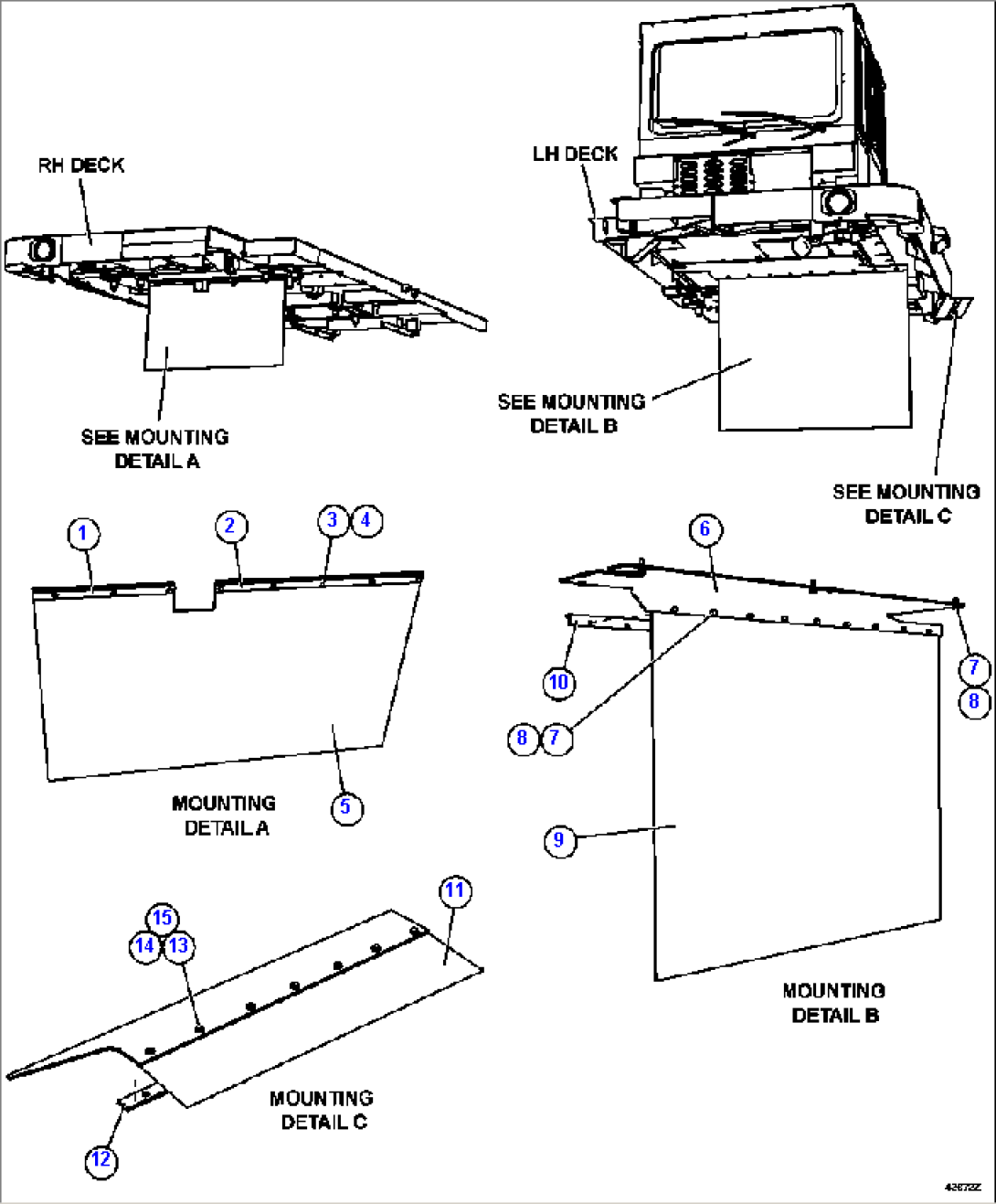

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TZ4998 | BAR | ||
| 2 | TZ1459 | BAR | ||
| 3 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 4 | C0312 | LOCKWASHER - 3/8" | ||
| 5 | XB6007 | FLAP, MUD | ||
| 6 | EL9271 | BRACKET | ||
| 7 | MM0047 | CAPSCREW - M10 X 1.50 X 30 | ||
| 8 | MM0471 | LOCKWASHER - M10 | ||
| 9 | XB6008 | FLAP, RUBBER | ||
| 10 | EL9273 | ANGLE, MOUNTING | ||
| 11 | EL9832 | FLAP, RUBBER | ||
| 12 | EL9833 | RETAINER | ||
| 13 | MM0067 | CAPSCREW - M10 X 1.50 X 50 | ||
| 14 | MM0461 | FLAT WASHER - M10 | ||
| 15 | MM0693 | LOCKNUT - M10 X 1.50 |
