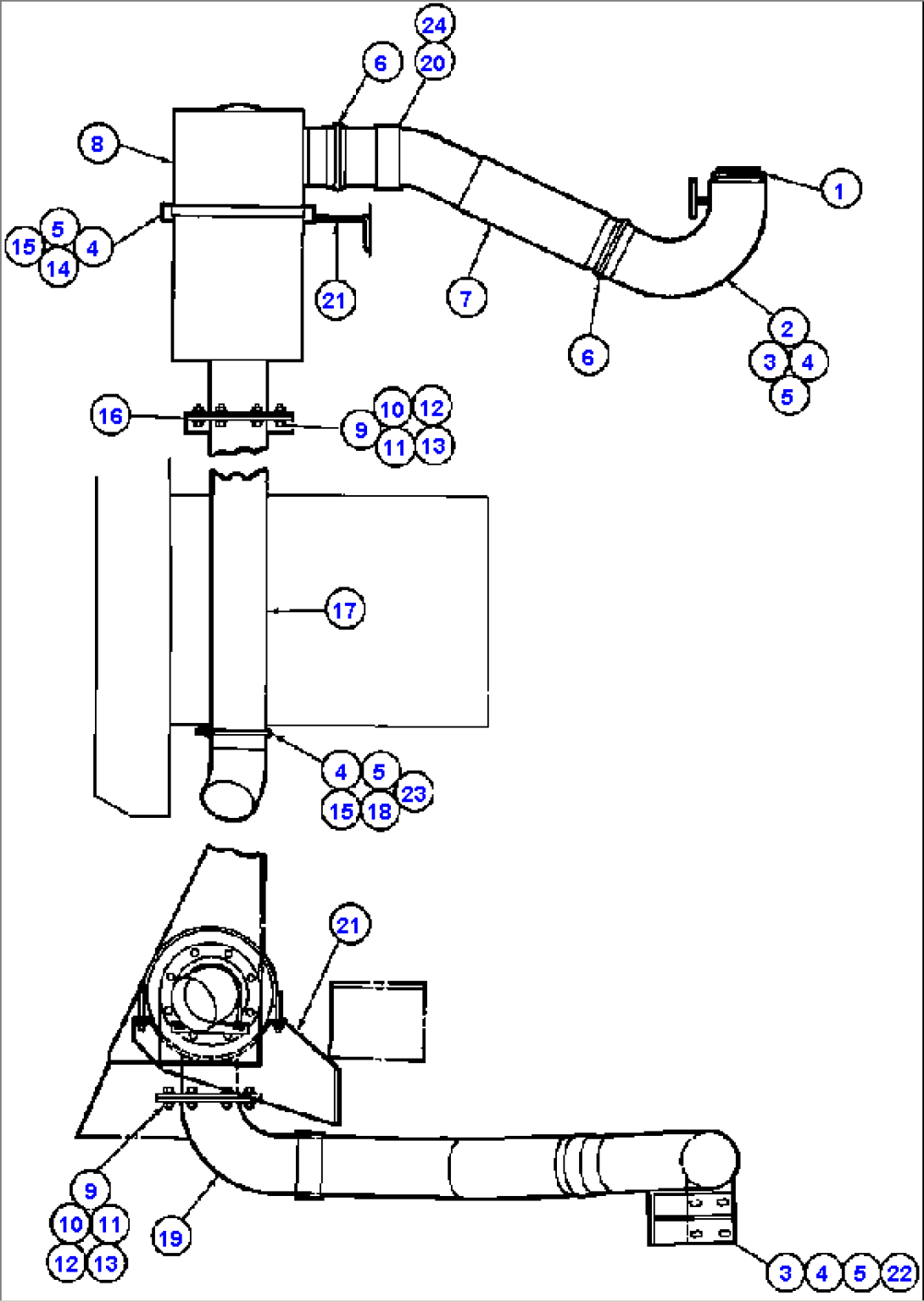

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB6092 | CLAMP, V-BAND | ||
| 2 | ED9060 | ELBOW | ||
| 3 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 4 | C0312 | LOCKWASHER - 3/8" | ||
| 5 | C1521 | NUT - 3/8" - 16NC | ||
| 6 | TL9052 | CLAMP | ||
| 7 | ED5600 | TUBE, EXHAUST | ||
| 8 | PB6855 | MUFFLER | ||
| 9 | C1616 | CAPSCREW - 1/2" - 13NC X 2" | ||
| 10 | C1523 | NUT - 1/2" - 13NC | ||
| 11 | WA0360 | FLAT WASHER - 1/2" | ||
| 12 | C1540 | LOCKWASHER - 1/2" | ||
| 13 | C1549 | FLAT WASHER - 1/2" | ||
| 14 | TY7329 | BAND | ||
| 15 | C1547 | FLAT WASHER - 3/8" | ||
| 16 | TZ8777 | BRACKET, MOUNTING | ||
| 17 | ED9074 | TUBE | ||
| 18 | TZ4132 | U-BOLT | ||
| 19 | TZ8778 | ELBOW | ||
| 20 | LW34051 | TAPE, INSULATING | ||
| 21 | ED9072 | SUPPORT | ||
| 22 | ED9064 | BRACKET, MOUNTING | ||
| 23 | ED9070 | BRACKET, MOUNTING | ||
| 24 | LW24051 | TUBE, BRAIDED SILICA |
