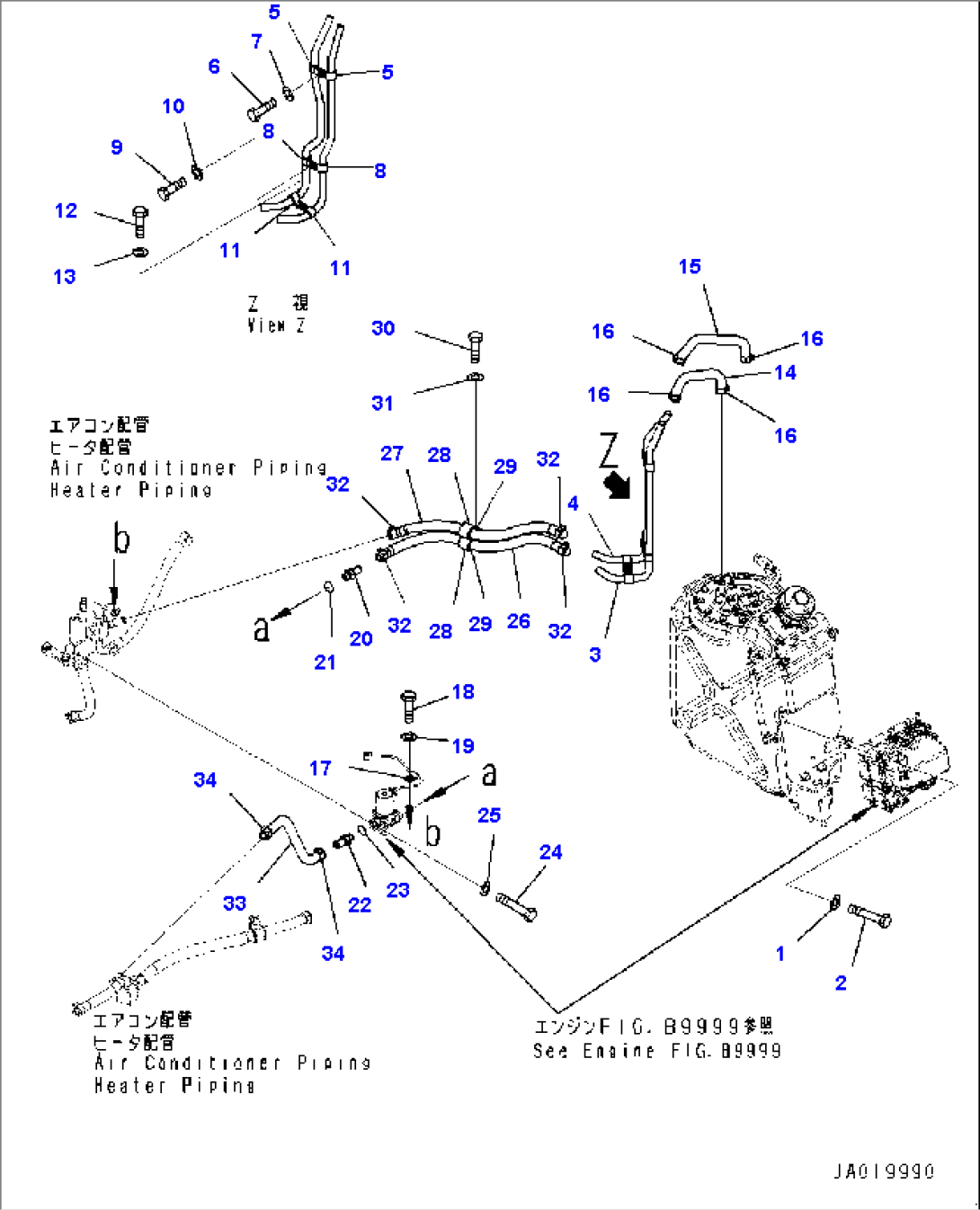

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01643-30823 | Washer | B60001- | |
| 2 | 01010-80890 | Bolt | B60001- | |
| 3 | 13Y-979-2511 | Tube | B60001- | |
| 4 | 13Y-979-2521 | Tube | B60001- | |
| 5 | 04434-51712 | Clip | B60001- | |
| 6 | 01010-81025 | Bolt | B60001- | |
| 7 | 01643-31032 | Washer | B60001- | |
| 8 | 04434-51712 | Clip | B60001- | |
| 9 | 01010-81025 | Bolt | B60001- | |
| 10 | 01643-31032 | Washer | B60001- | |
| 11 | 04434-51712 | Clip | B60001- | |
| 12 | 01010-81025 | Bolt | B60001- | |
| 13 | 01643-31032 | Washer | B60001- | |
| 14 | 13Y-979-2382 | Hose | B60001- | |
| 15 | 13Y-979-2392 | Hose | B60001- | |
| 16 | 09479-12400 | Clip | B60001- | |
| 17 | 04434-50510 | Clip | B60001- | |
| 18 | 01010-81020 | Bolt | B60001- | |
| 19 | 01643-31032 | Washer | B60001- | |
| 20 | 208-01-22360 | Joint | B60001- | |
| 21 | 07002-11623 | O-ring | B60001- | |
| 22 | 13Y-02-21221 | Joint | B60001- | |
| 23 | 07002-11623 | O-ring | B60001- | |
| 24 | 01010-80865 | Bolt | B60001- | |
| 25 | 01643-30823 | Washer | B60001- | |
| 26 | 13Y-979-2531 | Hose | B60001- | |
| 27 | 13Y-979-2541 | Hose | B60001- | |
| 28 | 04434-53211 | Clip | B60001- | |
| 29 | 07095-20523 | Cushion | B60001- | |
| 30 | 01010-81025 | Bolt | B60001- | |
| 31 | 01643-31032 | Washer | B60001- | |
| 32 | 09479-12400 | Clip | B60001- | |
| 33 | 13Y-979-2280 | Hose | B60001- | |
| 34 | 09479-12400 | Clip | B60001- |
