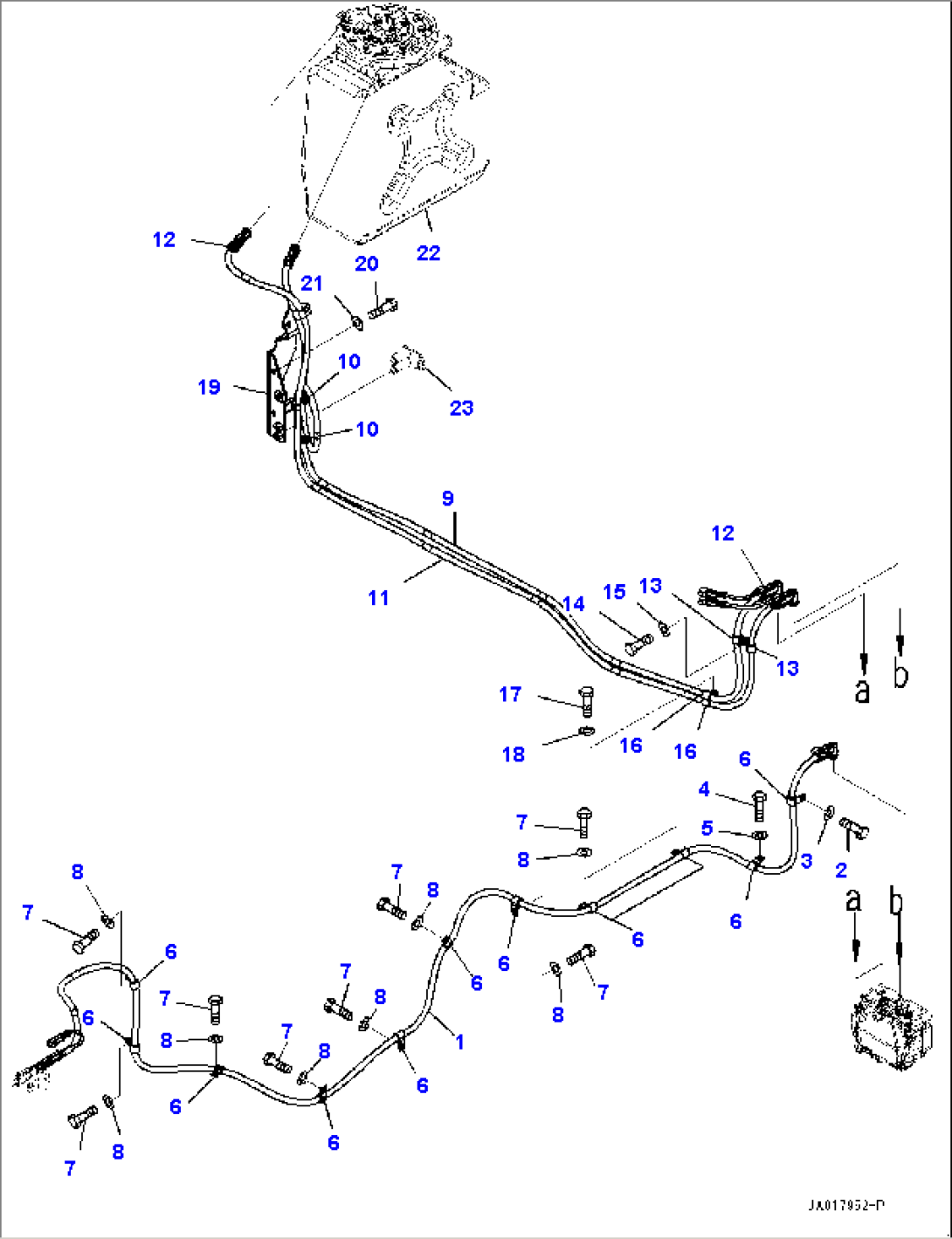

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-01-89981 | Hose | 22083- | |
| 2 | 01010-81225 | Bolt | 22083- | |
| 3 | 01643-31232 | Washer | 22083- | |
| 4 | 01010-81235 | Bolt | 22083- | |
| 5 | 01643-31232 | Washer | 22083- | |
| 6 | 04434-51612 | Clip | 22083- | |
| 7 | 01010-81225 | Bolt | 22083- | |
| 8 | 01643-31232 | Washer | 22083- | |
| 9 | 154-01-89881 | Hose Assembly | 22083- | |
| 10 | 08034-20834 | Band | 22083- | |
| 11 | 154-01-89972 | Hose | 22083- | |
| 12 | 20Y-62-22830 | Band, White | 22083- | |
| 13 | 04434-51612 | Clip | 22083- | |
| 14 | 01010-81225 | Bolt | 22083- | |
| 15 | 01643-31232 | Washer | 22083- | |
| 16 | 04434-51612 | Clip | 22083- | |
| 17 | 01010-81225 | Bolt | 22083- | |
| 18 | 01643-31232 | Washer | 22083- | |
| 19 | 154-01-85482 | Bracket | 22083- | |
| 20 | 01010-81225 | Bolt | 22083- | |
| 21 | 01643-31232 | Washer | 22083- | |
| 22 | (154-01-83110) | Tank | - | |
| 23 | (154-01-85511) | Bracket | - |
