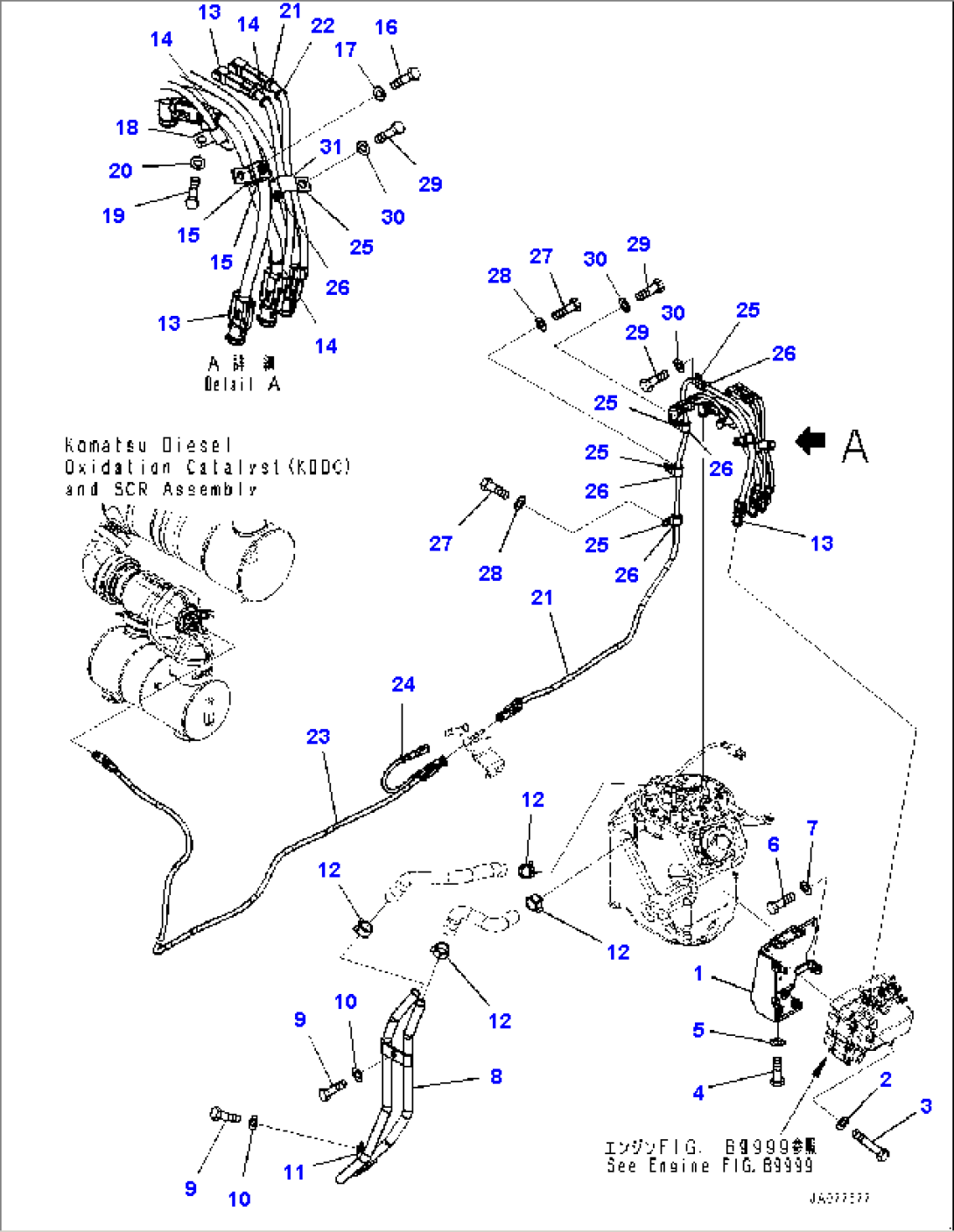

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-01-53512 | Bracket | 95001- | |
| 2 | 01643-30823 | Washer | 95001- | |
| 3 | 01010-80885 | Bolt | 95001- | |
| 4 | 01010-81235 | Bolt | 95001- | |
| 5 | 01643-31232 | Washer | 95001- | |
| 6 | 01010-81025 | Bolt | 95001- | |
| 7 | 01643-31032 | Washer | 95001- | |
| 8 | 11Y-979-9611 | Tube Assembly | 95001- | |
| 9 | 01010-81020 | Bolt | 95001- | |
| 10 | 01643-31032 | Washer | 95001- | |
| 11 | 04434-51710 | Clip | 95001- | |
| 12 | 09479-12400 | Clip | 95001- | |
| 13 | 11Y-01-53231 | Hose | 95001- | |
| 14 | 20Y-62-22830 | Band, White | 95001- | |
| 15 | 04434-51610 | Clip | 95001- | |
| 16 | 01010-81025 | Bolt | 95001- | |
| 17 | 01643-31032 | Washer | 95001- | |
| 18 | 04435-51010 | Clip | 95001- | |
| 19 | 01010-81020 | Bolt | 95001- | |
| 20 | 01643-31032 | Washer | 95001- | |
| 21 | 11Y-01-53321 | Hose | 95001- | |
| 22 | 21U-62-34760 | Band, Red | 95001- | |
| 23 | 11Y-01-53331 | Hose | 95001- | |
| 24 | 21U-62-34760 | Band, Red | 95001- | |
| 25 | 04434-51912 | Clip | 95001- | |
| 26 | 07095-40213 | Cushion | 95001- | |
| 27 | 01010-81020 | Bolt | 95001- | |
| 28 | 01643-31032 | Washer | 95001- | |
| 29 | 01010-81025 | Bolt | 95001- | |
| 30 | 01643-31032 | Washer | 95001- | |
| 31 | 04434-51010 | Clip | 95001- |
