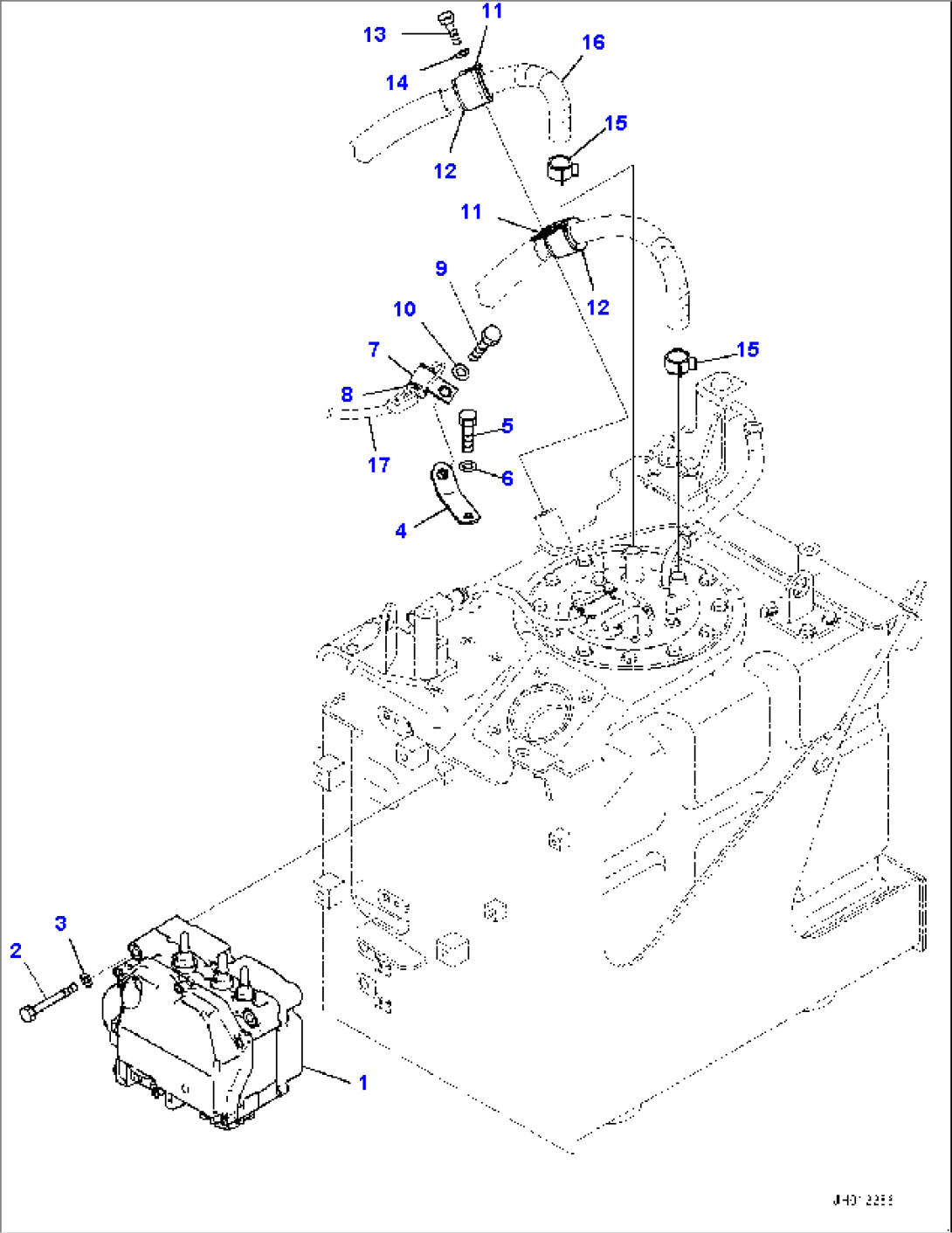

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6540-71-2510 | Pump | 100040- | |
| 6540-71-2320 | Filter Assembly | 100040- | ||
| 6540-71-2710 | Filter Cap | 100040- | ||
| 2 | 01010-80890 | Bolt | 100040- | |
| 3 | 01643-30823 | Washer | 100040- | |
| 4 | 17A-01-62430 | Bracket | 100040- | |
| 5 | 01010-80816 | Bolt | 100040- | |
| 6 | 01643-30823 | Washer | 100040- | |
| 7 | 04434-51710 | Clip | 100040- | |
| 8 | 07095-20211 | Cushion | 100040- | |
| 9 | 01010-81020 | Bolt | 100040- | |
| 10 | 01643-31032 | Washer | 100040- | |
| 11 | 04434-53212 | Clip | 100040- | |
| 12 | 07095-20523 | Cushion | 100040- | |
| 13 | 01010-81225 | Bolt | 100040- | |
| 14 | 01643-31232 | Washer | 100040- | |
| 15 | 09479-12400 | Clip | 100040- | |
| 16 | (17A-911-6821) | Hose | - | |
| 17 | (17A-06-62651) | Wiring Harness | - |
