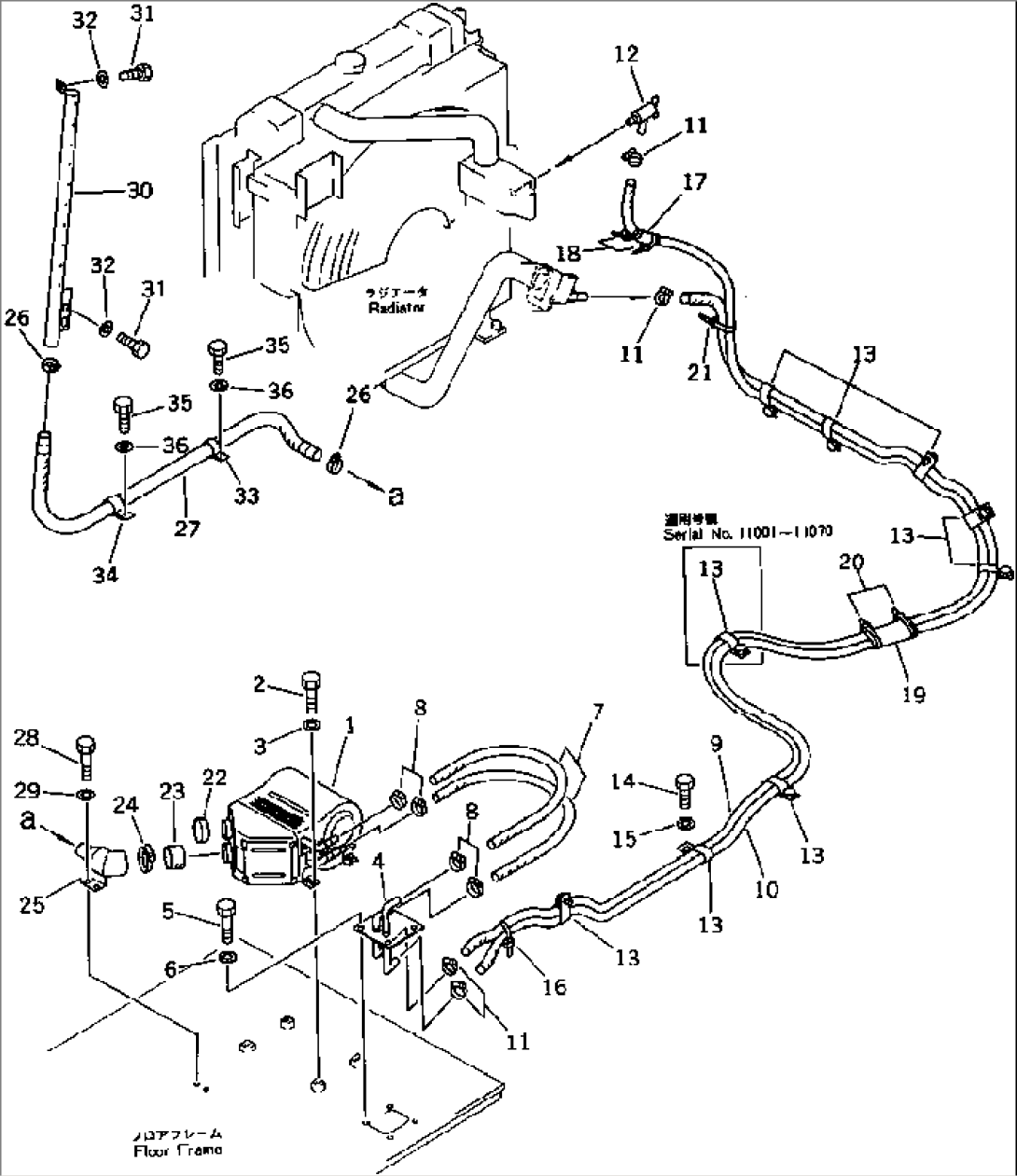

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 205-977-7180 | HEATER UNIT | 11001-@ | |
| 2 | 01010-51020 | BOLT | 11001-@ | |
| 3 | 01643-31032 | WASHER | 11001-@ | |
| 4 | 205-977-7133 | JOINT | 11001-11454 | |
| 5 | 01010-51025 | BOLT | 11001-11454 | |
| 6 | 01643-31032 | WASHER | 11001-11454 | |
| 7 | 205-977-7250 | HOSE | 11153-11454 | |
| 7 | 09483-00405 | HOSE | 11001-11152 | |
| 8 | 07281-00259 | CLAMP | 11001-11454 | |
| 9 | 09483-00451 | HOSE | 11001-11454 | |
| 10 | 09483-00446 | HOSE | 11001-11454 | |
| 11 | 07281-00259 | CLAMP | 11001-@ | |
| 12 | 09482-20000 | VALVE,HEATER | 11001-@ | |
| 13 | 141-06-11220 | CLIP | 11071-@ | |
| 13 | 141-06-11220 | CLIP | 11001-11070 | |
| 14 | 01010-51225 | BOLT | 11071-@ | |
| 14 | 01010-51225 | BOLT | 11001-11070 | |
| 15 | 01643-31232 | WASHER | 11071-@ | |
| 15 | 01643-31232 | WASHER | 11001-11070 | |
| 16 | 08034-00536 | BAND | 11001-@ | |
| 17 | 205-62-72240 | COVER | 11001-@ | |
| 18 | 08034-00823 | BAND | 11001-@ | |
| 19 | 205-62-53780 | COVER | 11001-@ | |
| 20 | 08034-00823 | BAND | 11001-@ | |
| 21 | 08034-00519 | BAND | 11001-@ | |
| 22 | 205-977-7190 | CAP | 11001-@ | |
| 23 | 198-911-5290 | HOSE | 11001-@ | |
| 24 | 07281-00709 | CLAMP | 11001-@ | |
| 25 | 205-977-7210 | DUCT | 11001-@ | |
| 26 | 07281-00419 | CLAMP | 11001-@ | |
| 27 | 09485-03717 | HOSE | 11001-@ | |
| 28 | 01010-51020 | BOLT | 11001-@ | |
| 29 | 01643-31032 | WASHER | 11001-@ | |
| 30 | 205-977-7220 | NOZZLE | 11001-@ | |
| 31 | 01010-51020 | BOLT | 11001-@ | |
| 32 | 01643-31032 | WASHER | 11001-@ | |
| 33 | 113-899-7950 | CLIP | 11001-@ | |
| 34 | 155-911-1790 | CLIP | 11001-@ | |
| 35 | 01010-51020 | BOLT | 11001-@ | |
| 36 | 01643-31032 | WASHER | 11001-@ |
