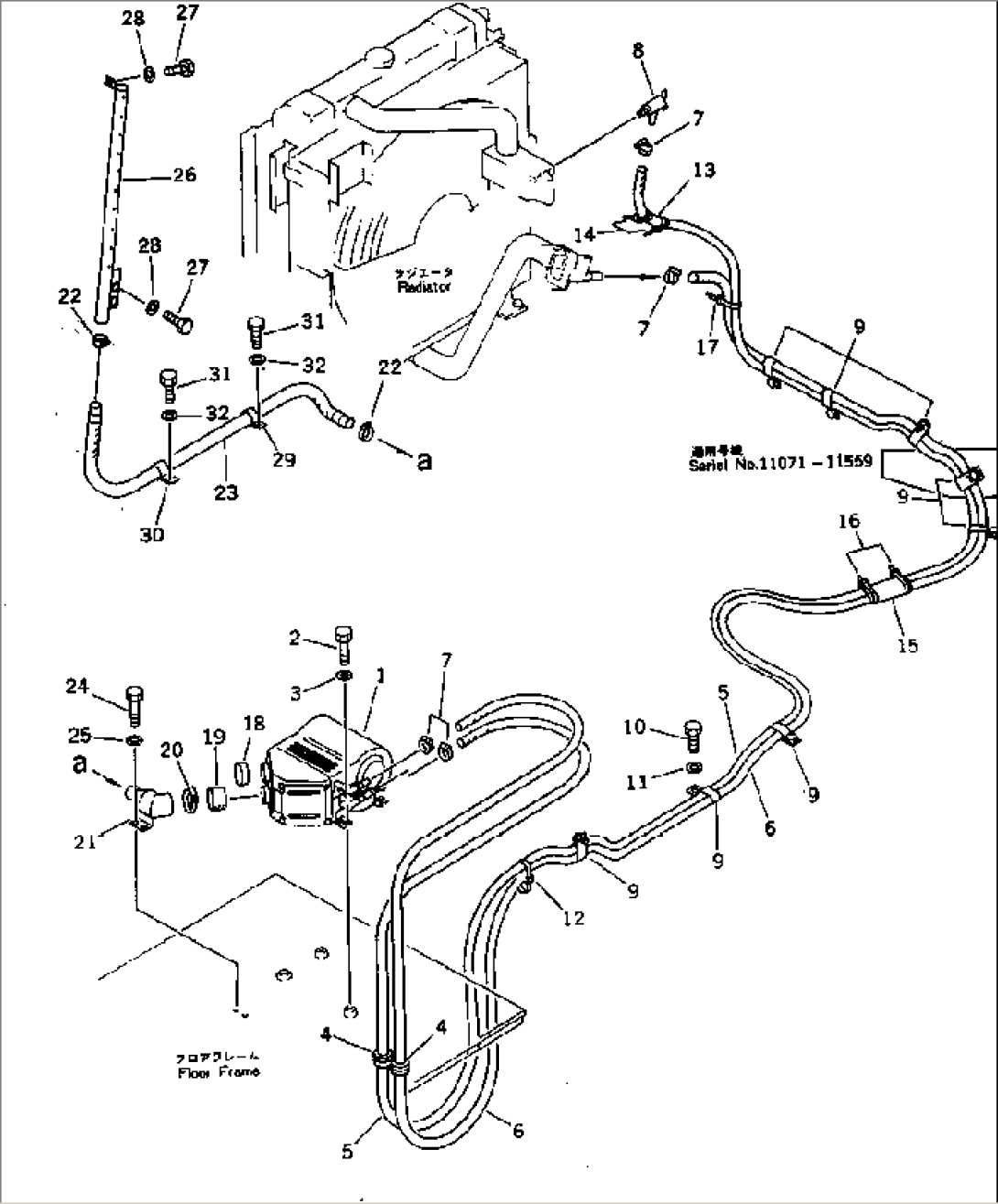

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 205-977-7180 | HEATER UNIT | 12001- | |
| 2 | 01010-51020 | BOLT | 12001- | |
| 3 | 01643-31032 | WASHER | 12001- | |
| 4 | 205-977-7310 | GROMMET | 12889- | |
| 5 | 09483-00456 | HOSE | 12889- | |
| 6 | 09483-00451 | HOSE | 12889- | |
| 7 | 07281-00259 | CLAMP | 12001- | |
| 8 | 09482-20000 | VALVE,HEATER | 12001- | |
| 9 | 141-06-11220 | CLIP | 13298- | |
| 9 | 141-06-11220 | CLIP | 12239-13297 | |
| 10 | 01010-51225 | BOLT | 13298- | |
| 10 | 01010-51225 | BOLT | 12239-13297 | |
| 11 | 01643-31232 | WASHER | 13298- | |
| 11 | 01643-31232 | WASHER | 12239-13297 | |
| 12 | 08034-00536 | BAND | 12001- | |
| 13 | 205-62-72240 | COVER | 12001- | |
| 14 | 08034-00823 | BAND | 12001- | |
| 15 | 205-62-53780 | COVER | 12001- | |
| 16 | 08034-00823 | BAND | 12001- | |
| 17 | 08034-00519 | BAND | 12001- | |
| 18 | 205-977-7190 | CAP | 12001- | |
| 19 | 198-911-5290 | HOSE | 12001- | |
| 20 | 07281-00709 | CLAMP | 12001- | |
| 21 | 205-977-7210 | DUCT | 12001- | |
| 22 | 07281-00419 | CLAMP | 12001- | |
| 23 | 09485-03717 | HOSE | 12001- | |
| 24 | 01010-51020 | BOLT | 12001- | |
| 25 | 01643-31032 | WASHER | 12001- | |
| 26 | 205-977-7220 | NOZZLE | 12001- | |
| 27 | 01010-51020 | BOLT | 12001- | |
| 28 | 01643-31032 | WASHER | 12001- | |
| 29 | 113-899-7950 | CLIP | 12001- | |
| 30 | 155-911-1790 | CLIP | 12001- | |
| 31 | 01010-51025 | BOLT | 12001- | |
| 32 | 01643-31032 | WASHER | 12001- |
