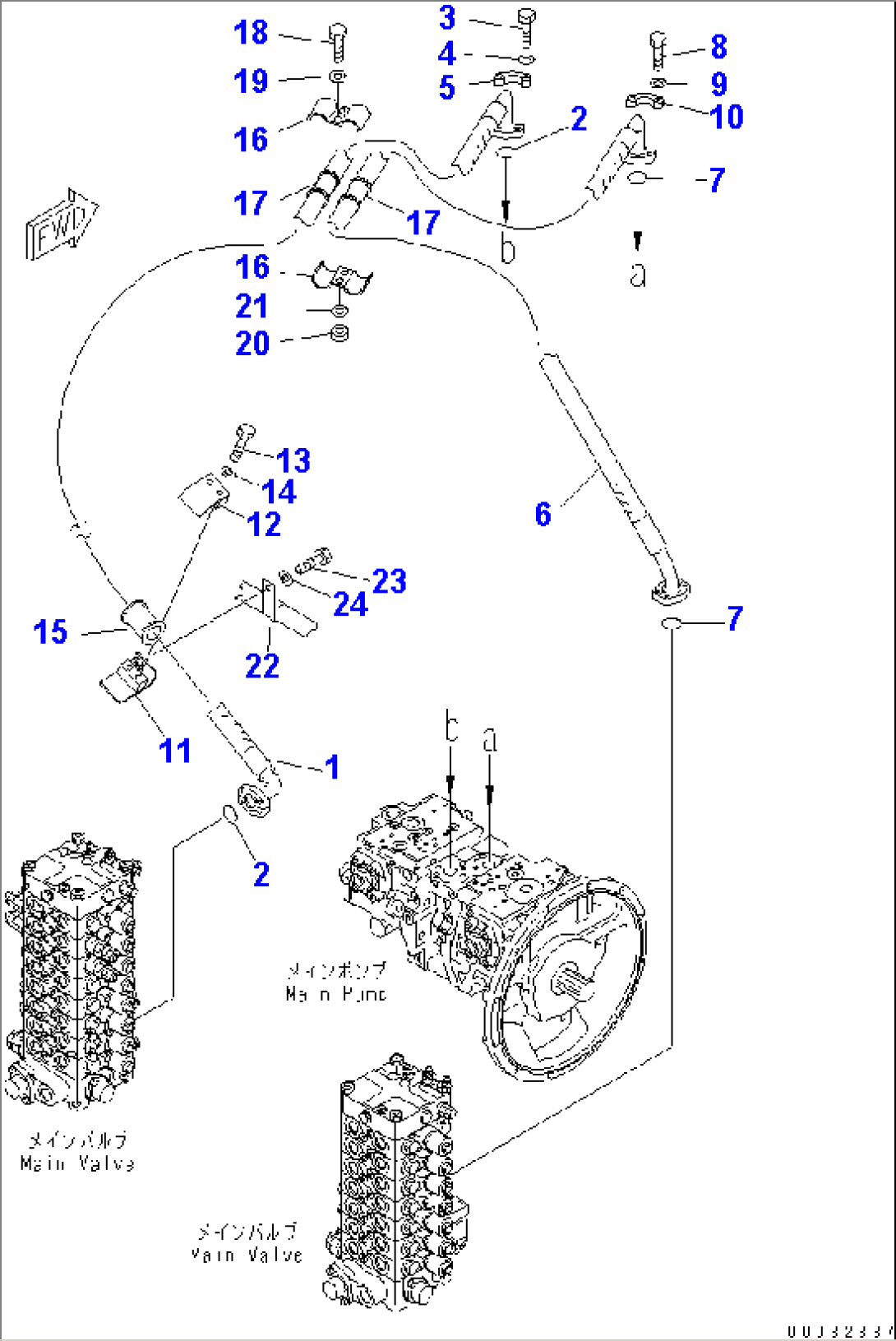

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8255-62-4411 | HOSE | 1001-@ | |
| 2 | 21T-09-11460 | O-RING | 1001-@ | |
| 3 | 07372-21035 | BOLT | 1001-@ | |
| 4 | 01643-51032 | WASHER | 1001-@ | |
| 5 | 07371-31049 | FLANGE | 1001-@ | |
| 6 | 8255-62-4420 | HOSE | 1001-@ | |
| 7 | 21T-09-11460 | O-RING | 1001-@ | |
| 8 | 07372-21035 | BOLT | 1001-@ | |
| 9 | 01643-51032 | WASHER | 1001-@ | |
| 10 | 07371-31049 | FLANGE | 1001-@ | |
| 11 | 8255-62-5150 | CLAMP | 1001-1014 | |
| 12 | 07094-11024 | CLAMP | 1001-1014 | |
| 13 | 01010-81255 | BOLT | 1001-1014 | |
| 14 | 01643-31232 | WASHER | 1001-@ | |
| 15 | 07095-01035 | CUSHION | 1001-1014 | |
| 16 | 07094-31024 | CLAMP | 1013-@ | |
| 17 | 07095-01035 | CUSHION | 1013-@ | |
| 18 | 01010-81280 | BOLT | 1013-@ | |
| 19 | 01643-31232 | WASHER | 1001-@ | |
| 20 | 01580-11210 | NUT | 1013-@ | |
| 21 | 01643-31232 | WASHER | 1013-@ | |
| 22 | 04434-53212 | CLIP | 1001-@ | |
| 23 | 01010-81225 | BOLT | 1001-1014 | |
| 24 | 01643-31232 | WASHER | 1001-1014 |
