| Item | Part No. | Part Name | Qty | Serial No. |

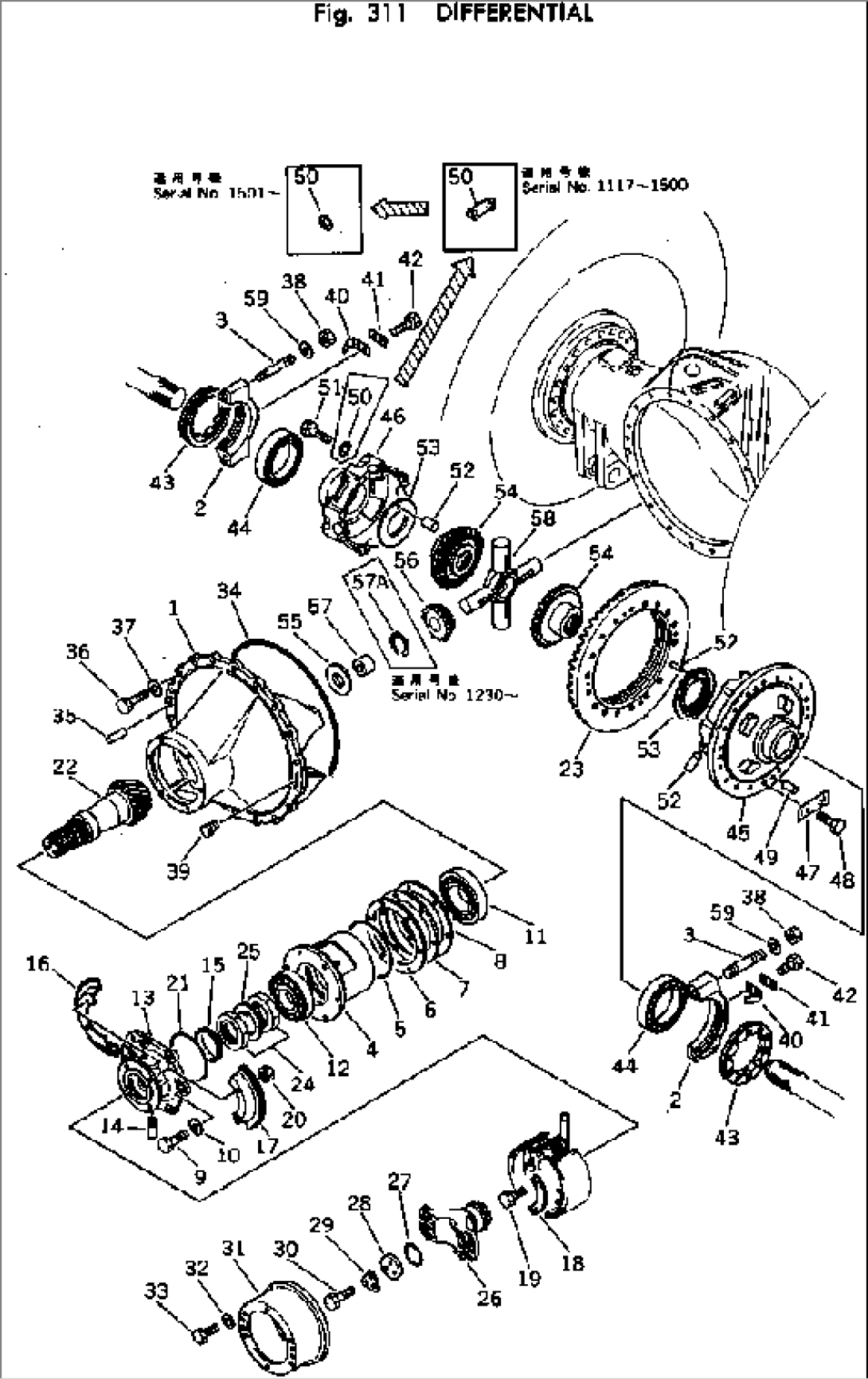

| 569-22-11001 | DIFFERENTIAL ASS'Y | 1102- | ||
| 566-22-00012 | CASE ASS'Y | 1102- | ||
| 1 | \6\ | CASE | 1102- | |
| 2 | \6\ | CAP | 1102- | |
| 3 | \6\ | STUD | 1102- | |
| 4 | 566-22-11740 | CAGE | 1102- | |
| 5 | 07000-05235 | O-RING (KIT) | 1102- | |
| 566-22-00030 | SHIM ASS'Y | 1102- | ||
| 6 | \6\ | SHIM, 1.0MM | 1102- | |
| 7 | \6\ | SHIM, 0.3MM | 1102- | |
| 8 | \6\ | SHIM, 0.2MM | 1102- | |
| 9 | 01010-31670 | BOLT | 1102- | |
| 10 | 01643-31645 | WASHER | 1102- | |
| 11 | 566-22-11811 | BEARING | 1102- | |
| 12 | 06000-32220 | BEARING | 1102- | |
| 13 | 566-22-11411 | CAGE | 1102- | |
| 14 | 566-22-11470 | TUBE | 1102- | |
| 15 | 07012-10100 | SEAL (KIT) | 1102- | |
| 16 | 566-22-11711 | PLATE | 1102- | |
| 17 | 566-22-11720 | PLATE | 1102- | |
| 18 | 566-22-11480 | LOCK (KIT) | 1102- | |
| 19 | 01090-31640 | BOLT | 1102- | |
| 20 | 01582-01613 | NUT | 1102- | |
| 21 | 07000-05190 | O-RING (KIT) | 1102- | |
| 569-22-00022 | BEVEL GEAR ASS'Y | 1102- | ||
| 22 | \6\ | PINION | 1102- | |
| 23 | \6\ | GEAR | 1102- | |
| 24 | 566-22-11340 | NUT | 1102- | |
| 25 | 566-22-11330 | LOCK (KIT) | 1102- | |
| 26 | 566-22-11460 | COUPLING | 1102- | |
| 27 | 07000-05075 | O-RING (KIT) | 1102- | |
| 28 | 566-22-11450 | RETAINER | 1102- | |
| 29 | 281-22-11280 | LOCK (KIT) | 1102- | |
| 30 | 01010-51665 | BOLT | 1501- | |
| 30 | 01010-31660 | BOLT | 1102-1500 | |
| 31 | 566-22-11430 | DRUM | 1102- | |
| 32 | 01643-31445 | WASHER | 1102- | |
| 33 | 01010-31435 | BOLT | 1102- | |
| 34 | 566-09-21110 | O-RING (KIT) | 1102- | |
| 35 | 04020-01842 | PIN | 1102- | |
| 36 | 01010-62055 | BOLT | 1102- | |
| 37 | 01602-32060 | WASHER | 1102- | |
| 38 | 01580-03024 | NUT | 1102- | |
| 39 | 07049-02025 | PLUG | 1102- | |
| 40 | 566-22-11251 | LOCK | 1102- | |
| 41 | 01643-31232 | WASHER | 1102- | |
| 42 | 01010-31235 | BOLT | 1102- | |
| 43 | 287-22-11631 | NUT | 1102- | |
| 44 | 569-22-11820 | BEARING | 1102- | |
| 569-22-00041 | CASE ASS'Y | 1102- | ||
| 45 | \6\ | CASE | 1102- | |
| 46 | \6\ | CASE | 1102- | |
| 47 | 566-22-11320 | LOCK | 1117- | |
| 48 | 01010-62055 | BOLT | 1117- | |
| 49 | 04020-01842 | PIN | 1102- | |
| 50 | 01643-32060 | WASHER | 1501- | |
| 50 | 560-22-14660 | PLATE | 1117-1500 | |
| 50 | 01643-32060 | WASHER | 1102-1116 | |
| 51 | 01051-62025 | BOLT | 1501- | |
| 51 | 01051-62020 | BOLT | 1117-1500 | |
| 51 | 01051-62025 | BOLT | 1102-1116 | |
| 52 | 565-22-11991 | PIN | 1102- | |
| 53 | 566-22-11211 | WASHER | 1102- | |
| 54 | 569-22-11180 | GEAR | 1102- | |
| 55 | 566-22-11191 | WASHER | 1102- | |
| 566-22-11591 | PINION ASS'Y | 1230- | ||
| 566-22-11590 | PINION ASS'Y | 1102-1229 | ||
| 56 | \6\ | PINION | 1230- | |
| 56 | \6\ | PINION | 1102-1229 | |
| 57 | \6\ | BUSHING | 1102- | |
| 57A | \6\ | RING | 1230- | |
| 58 | 566-22-11161 | SHAFT | 1230- | |
| 58 | 566-22-11160 | SHAFT | 1102-1229 | |
| 59 | 01643-33080 | WASHER | 1102- |
