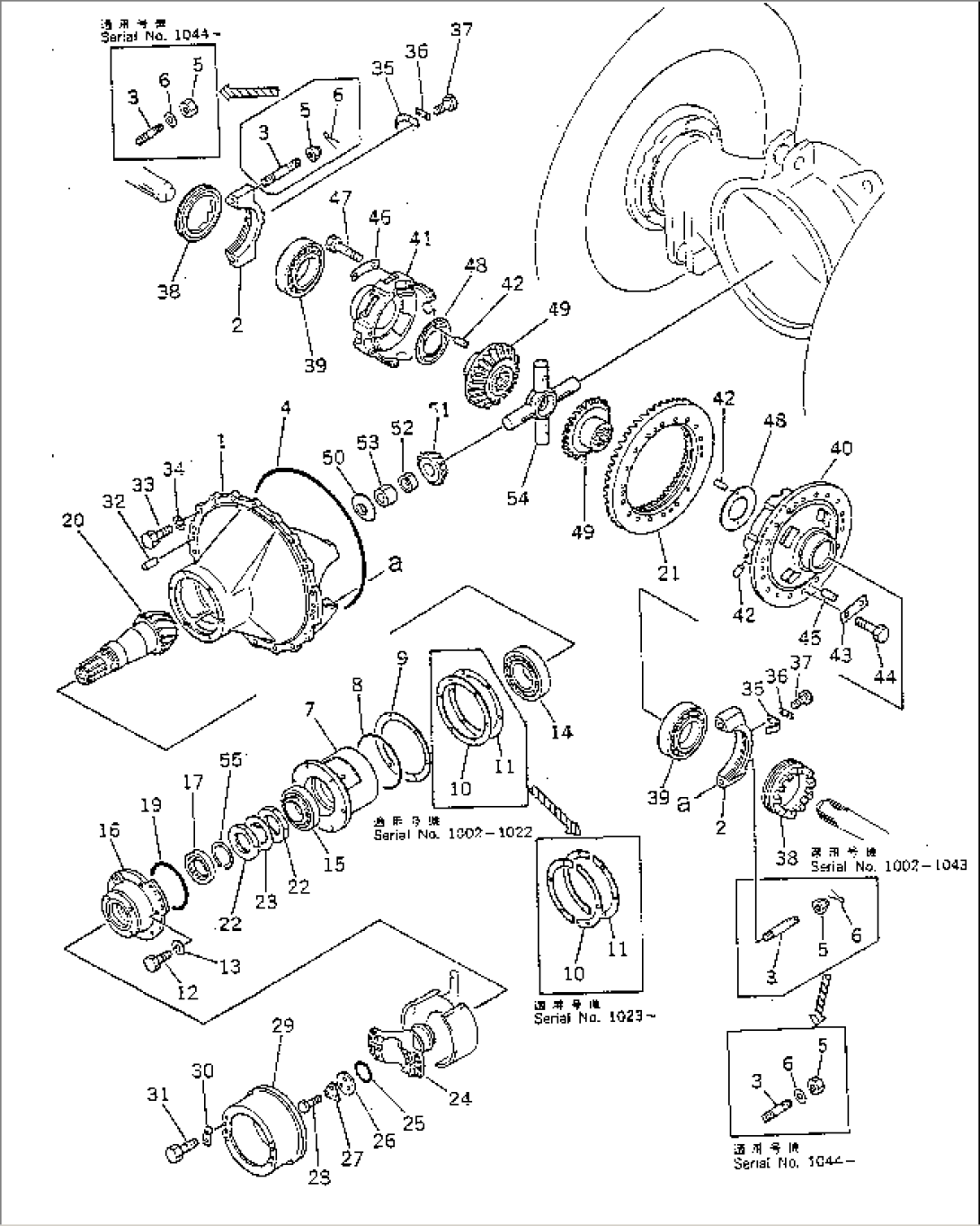

DIFFERENTIAL

DIFFERENTIAL
ItemPart No.Part NameQtySerial No.
568-22-11002DIFFERENTIAL ASS'Y1079-
\0\568-22-11001DIFFERENTIAL ASS'Y1002-1078
568-22-00012CASE ASS'Y1044-
\0\568-22-00011CASE ASS'Y1002-1043
1\6\CASE1002-
2\6\CAP1002-
301145-83680STUD1044-
01147-83675STUD1002-1043
4568-22-11630O-RING (KIT)1002-
501580-13629NUT1044-
01590-13638NUT1002-1043
601643-33690WASHER1044-
04050-06065PIN1002-1043
7568-22-11350CAGE1002-
807000-05320O-RING (KIT)1002-
568-22-00031SHIM ASS'Y1023-
\0\568-22-00030SHIM ASS'Y1002-1022
9568-22-11370SHIM¤ 1.0MM1002-
10568-22-11381SHIM¤ 0.2MM1023-
\0\568-22-11380SHIM1002-1022
11568-22-11391SHIM¤ 0.3MM1023-
\0\568-22-11390SHIM1002-1022
1201010-82090BOLT1002-
1301602-22060WASHER1002-
1406000-32232BEARING1002-
1506000-32224BEARING1002-
16568-22-11412CAGE1067-
\0\568-22-11411CAGE1002-1066
1707012-10110SEAL (KIT)1002-
1907000-05230O-RING (KIT)1002-
568-22-00022BEVEL GEAR ASS'Y1055-
\0\568-22-00021BEVEL GEAR ASS'Y1044-1054
\0\568-22-00020BEVEL GEAR ASS'Y1002-1043
20\6\PINION1055-
\6\PINION1044-1054
\6\PINION1002-1043
21\6\GEAR1055-
\6\GEAR1044-1054
\6\GEAR1002-1043
22285-22-11320NUT1002-
23285-22-11330LOCK (KIT)1002-
24568-22-11420COUPLING1002-
2507000-05085O-RING (KIT)1002-
26568-15-13240RETAINER1002-
27281-22-11280LOCK (KIT)1002-
2801010-81655BOLT1002-
29568-22-11431DRUM1002-
30568-22-11460LOCK (KIT)1002-
3101050-31840BOLT1002-
3204020-01842PIN1002-
3301010-82465BOLT1002-
3401602-22472WASHER1002-
35281-22-11640LOCK1002-
3604081-05512LOCK (KIT)1002-
3701010-51230BOLT1002-
38568-22-11611NUT1055-
\0\568-22-11610NUT1002-1054
39568-22-11960BEARING1055-
\0\06000-32036BEARING1002-1054
568-22-00043GEAR CASE ASS'Y1079-
\0\568-22-00042GEAR CASE ASS'Y1044-1078
\0\568-22-00041GEAR CASE ASS'Y1002-1043
40\6\CASE1079-
\6\CASE1002-1078
41\6\CASE1079-
\6\CASE1002-1078
42565-22-11991PIN1079-
\0\565-99-81190PIN1055-1078
\0\281-22-12270PIN1002-1054
43568-22-11320PLATE (KIT)1002-
4401010-82475BOLT1002-
45568-22-11280PIN1002-
46568-22-11480LOCK (KIT)1002-
4701011-82250BOLT1002-
48568-22-11211WASHER1079-
\0\568-22-11210WASHER1002-1078
49568-22-11180GEAR1002-
50568-22-11190WASHER1002-
568-22-11590PINION ASS'Y1002-
51568-22-11170PINION1002-
5207177-06033BUSHING1079-
\0\568-22-11240BUSHING1002-1078
53568-22-11250BUSHING1002-
54568-22-11160SHAFT1002-
5504064-09530RING1002-
