| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22T-61-11370 | SPACER | 2001- | |
| 2 | 01010-81070 | BOLT | 2001- | |
| 3 | 01643-31032 | WASHER | 2001- | |
| 4 | 56D-61-11710 | PLATE | 2001-2206 | |
| 5 | 07283-33442 | CLIP | 2001-2206 | |
| 6 | 01597-01009 | NUT | 2001-2206 | |
| 7 | 01643-31032 | WASHER | 2001-2206 |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2 s/n 2001 2218 (ecot3) (for eu)
- Hydraulic system
- Differential lock piping (spacer and plate) (for limited slip differential)(#2001 )
Поиск по каталогу

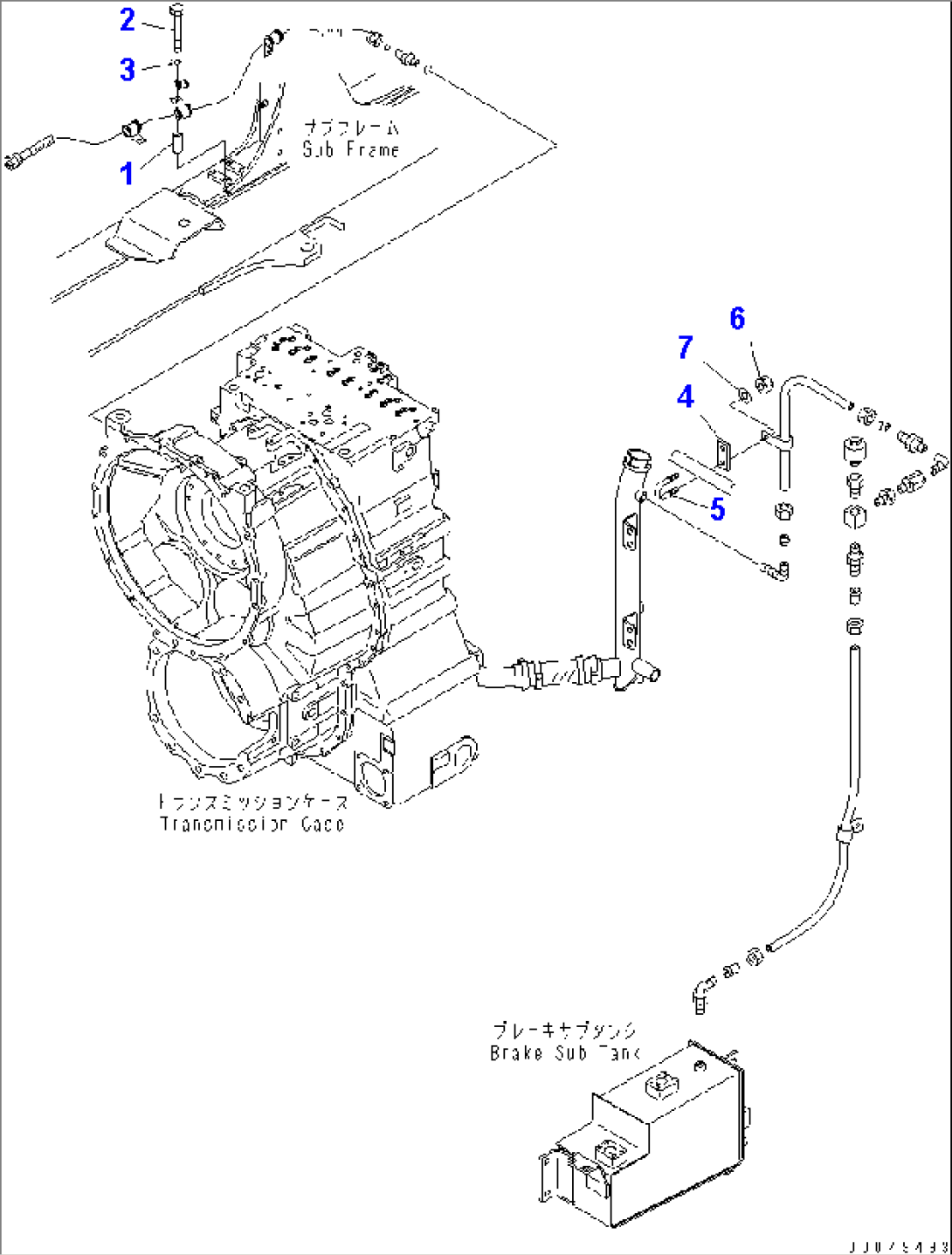

DIFFERENTIAL LOCK PIPING (SPACER AND PLATE) (FOR LIMITED SLIP DIFFERENTIAL)(#2001-)
