| Item | Part No. | Part Name | Qty | Serial No. |
| 21E-22-00011 | AXLE ASS'Y | 1603- | ||

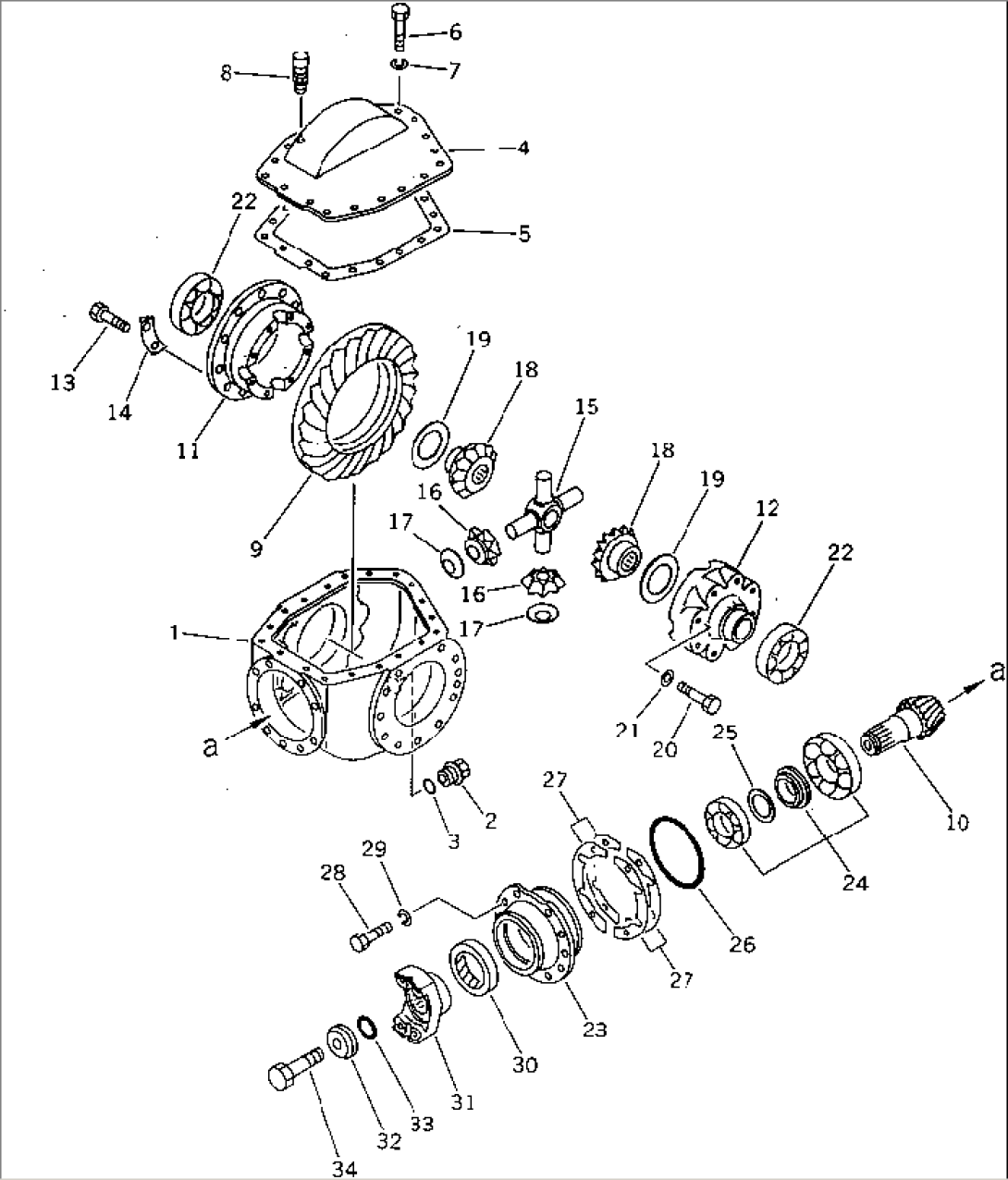

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2421 TO 2423. | ||||
| 1 | 21E-22-11110 | CASE | 1603- | |
| 2 | 07044-12412 | PLUG | 1603- | |
| 3 | 07002-02434 | O-RING | 1603- | |
| 4 | 361-22-11120 | COVER | 1603- | |
| 5 | 21E-22-11140 | GASKET | 1766- | |
| \0\361-22-11130 | GASKET | 1603-1765 | ||
| 6 | 01010-50820 | BOLT | 1603- | |
| 7 | 01602-20825 | WASHER,SPRING | 1603- | |
| 8 | 07030-01030 | BREATHER | 1603- | |
| 361-22-00011 | GEAR ASS'Y | 1603- | ||
| 9 | \6\ | GEAR | 1603- | |
| 10 | \6\ | SHAFT | 1603- | |
| 361-21-00011 | CASE ASS'Y | 1603- | ||
| 11 | \6\ | CASE | 1603- | |
| 12 | \6\ | CASE | 1003- | |
| 13 | 01050-61225 | BOLT | 1603- | |
| 14 | 361-21-11410 | LOCK | 1603- | |
| 15 | 361-21-11380 | SPIDER | 1603- | |
| 16 | 361-21-11270 | GEAR | 1603- | |
| 17 | 361-21-11320 | BUSHING | 1603- | |
| 18 | 361-21-11260 | GEAR | 1603- | |
| 19 | 361-21-11330 | BUSHING | 1603- | |
| 20 | 01010-50865 | BOLT | 1603- | |
| 21 | 01643-30823 | WASHER | 1603- | |
| 22 | 06002-30210 | BEARING | 1603- | |
| 23 | 361-21-11110 | CAGE | 1603- | |
| 24 | 361-21-11200 | BEARING | 1603- | |
| 25 | 361-21-11520 | SPACER (NO. K) | 1603- | |
| 361-21-11210 | SPACER (NO. 0) | 1603- | ||
| 361-21-11220 | SPACER (NO. 1) | 1603- | ||
| 361-21-11230 | SPACER (NO. 2) | 1603- | ||
| 26 | 07000-02115 | O-RING | 1603- | |
| 27 | 361-21-05010 | SHIM ASS'Y | 1603- | |
| \6\ | SHIM¤ 0.15MM | 1603- | ||
| \6\ | SHIM¤ 0.2MM | 1603- | ||
| \6\ | SHIM¤ 0.5MM | 1603- | ||
| 28 | 01010-51030 | BOLT | 1603- | |
| 29 | 01602-21030 | WASHER,SPRING | 1603- | |
| 30 | 07012-10062 | SEAL,OIL | 1603- | |
| 31 | 361-15-13280 | YOKE | 1603- | |
| 32 | 361-21-11710 | PLATE | 1603- | |
| 33 | 07000-73035 | O-RING | 1603- | |
| 34 | 01050-61490 | BOLT | 1603- |
