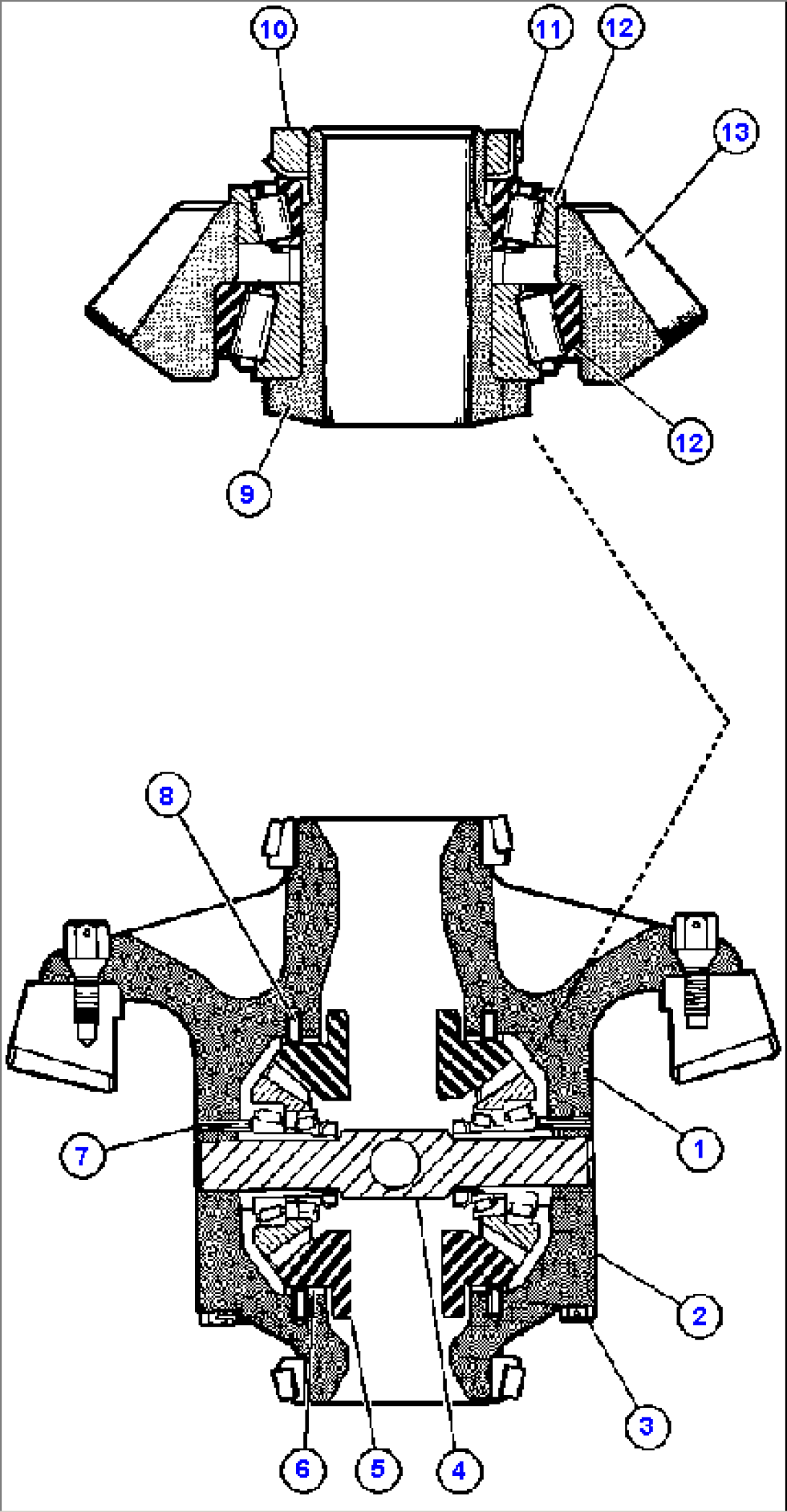

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TX3320 | CARRIER ASSM | ||
| 1 | CARRIER (1) | |||
| 2 | CAP (1) | |||
| 3 | WA4640 | CAPSCREW | ||
| 4 | TX3322 | CROSS | ||
| 5 | TX3325 | GEAR, BEVEL | ||
| 6 | TX4148 | WASHER, THRUST | ||
| 7 | 727816 | PIN, ROLL | ||
| 8 | KC4104 | PIN, ROLL | ||
| 9 | TX4786 | PINION ASSM | ||
| 9 | TX3323 | SLEEVE | ||
| 10 | SD5375 | LOCKNUT, BEARING | ||
| 11 | SD5376 | LOCKWASHER, BEARING | ||
| 12 | PB6090 | BEARING ASSM | ||
| 13 | TX3324 | PINION, BEVEL | ||
| NS|16 | NOTE: (1) NOT SERVICED SEPERATELY. | |||
| NS|17 | (DIFFERENTIAL TX4789 IS INCLUDED IN DIFF. ASSM TX4790) |
