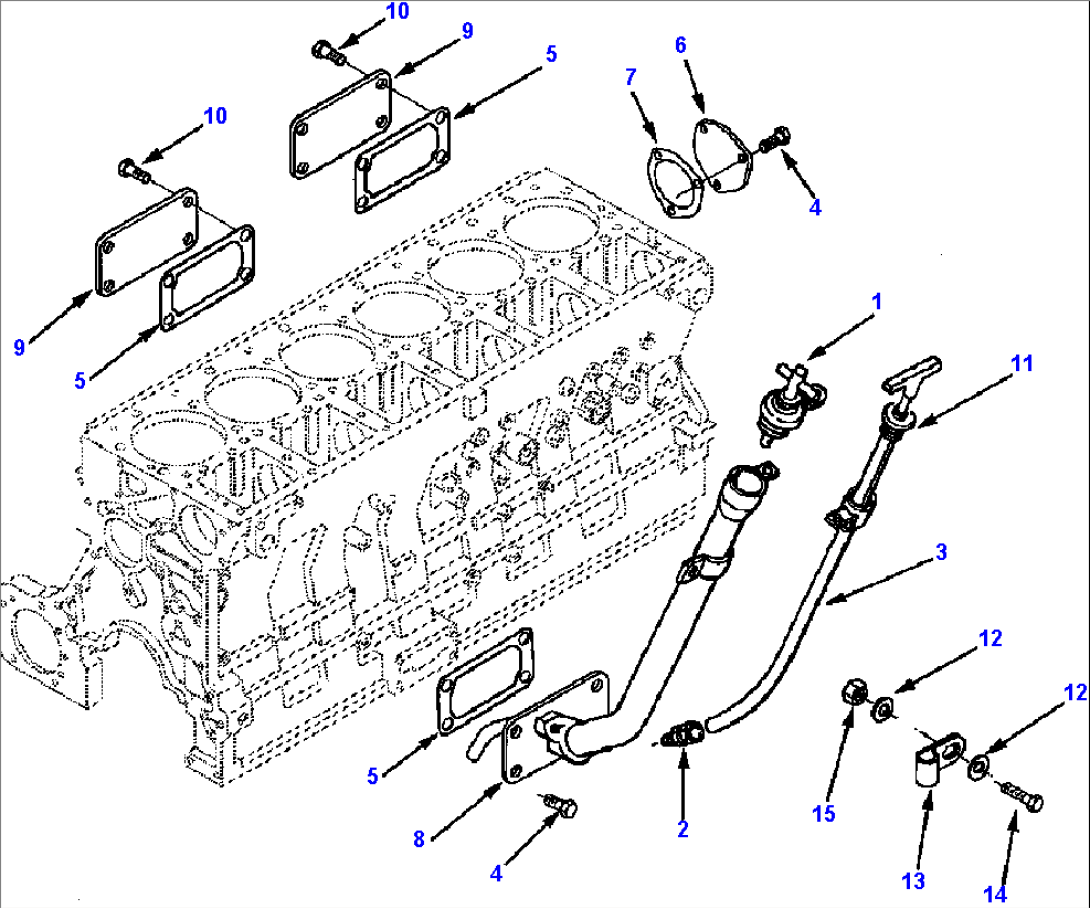

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1246 393 H1 | CAP, FILLER | ||
| 2 | 1246 384 H1 | CONNECTOR, TUBE | ||
| 3 | 1246 388 H91 | TUBE, OIL GAUGE | ||
| 4 | 1294 005 H1 | BOLT (M10x1.50x25) | ||
| 5 | 1295 235 H1 | GASKET, HAND HOLE | ||
| 6 | 1246 385 H1 | COVER, CAMSHAFT | ||
| 7 | 1246 386 H1 | GASKET, COVER PLATE | ||
| 8 | 1296 070 H1 | COVER, HAND HOLE | ||
| 9 | 1246 387 H1 | COVER, HAND HOLE | ||
| 10 | 1246 130 H1 | BOLT (M10x1.50x20) | ||
| 11 | 1310 215 H1 | DIPSTICK | ||
| 12 | 1238 113 H1 | WASHER, PLAIN | ||
| 13 | 1238 174 H1 | CLIP | ||
| 14 | 1238 011 H1 | BOLT (1/4 - 20x3/4 INCH) | ||
| 15 | 1246 355 H1 | NUT, HEAVY HEXAGON |
