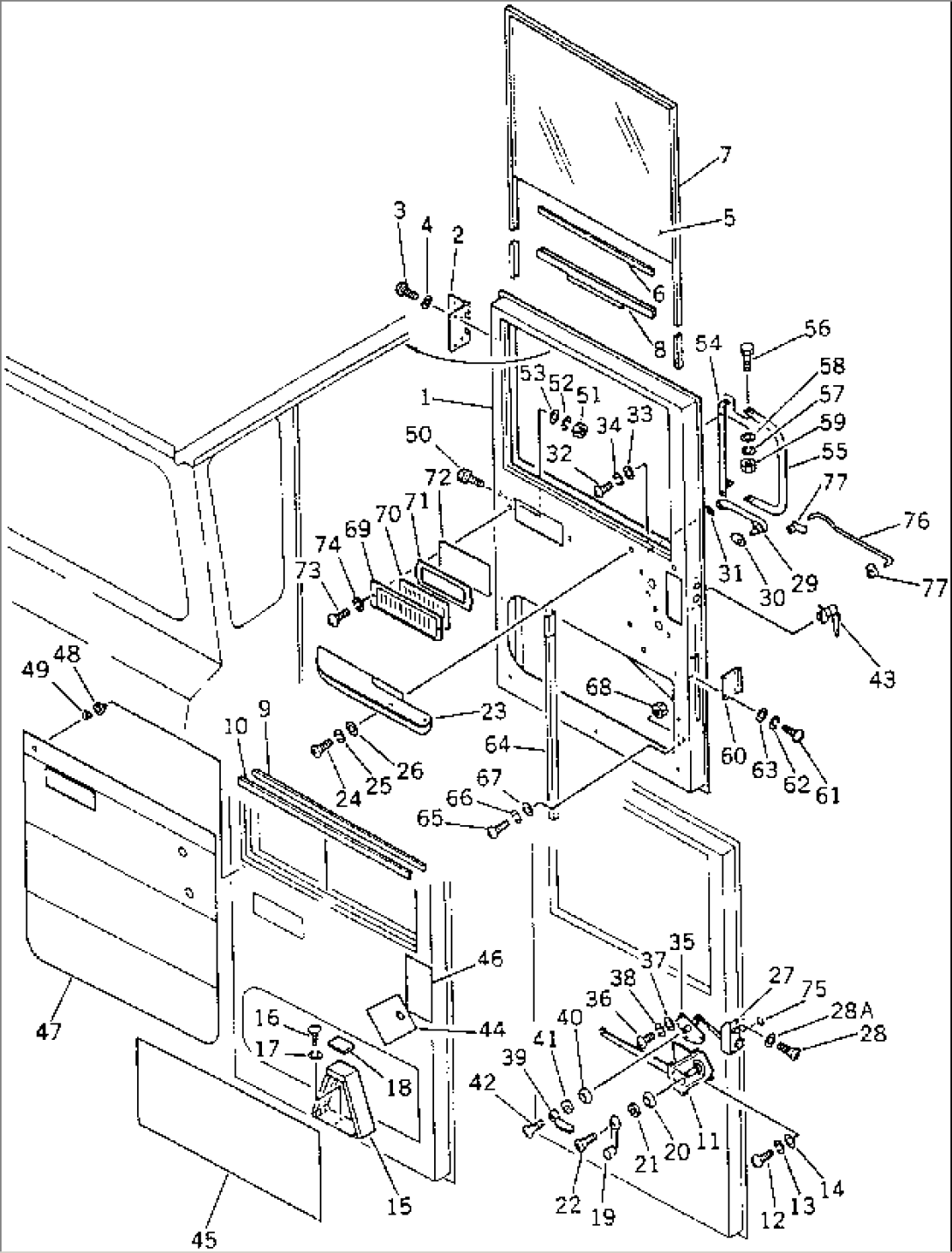

| Item | Part No. | Part Name | Qty | Serial No. |
| (566-54-23001) | CAB ASS'Y | 1002- | ||
| 566-54-33500 | DOOR ASS'Y | 1002- | ||
| 1 | 566-54-24112 | DOOR | 1002- | |
| 2 | 566-54-24240 | HINGE | 1002- | |
| 3 | 01225-30820 | SCREW | 1002- | |
| 4 | 566-54-13570 | WASHER | 1002- | |
| 5 | 566-54-25120 | GLASS | 1002- | |
| 6 | 566-54-24220 | RUBBER | 1002- | |
| 7 | 566-54-24710 | RUN | 1002- | |
| 8 | 566-54-24450 | CHANNEL | 1002- | |
| 9 | 566-54-24720 | SEAL | 1002- | |
| 10 | 566-54-24730 | ANTIRATTLER | 1002- | |
| 11 | 566-54-24210 | REGULATOR | 1002- | |
| 12 | 01220-30612 | SCREW | 1002- | |
| 13 | 01602-20619 | WASHER | 1002- | |
| 14 | 01642-20608 | WASHER | 1002- | |
| 15 | 566-54-24131 | STOPPER | 1002- | |
| 16 | 01370-00510 | SCREW | 1002- | |
| 17 | 01601-20513 | WASHER | 1002- | |
| 18 | 566-54-24140 | STOPPER | 1002- | |
| 19 | 566-54-24411 | HANDLE | 1002- | |
| 20 | 566-54-24260 | BASE | 1002- | |
| 21 | 566-54-24270 | ESCUTCHEON | 1002- | |
| 22 | 01225-30516 | SCREW | 1002- | |
| 23 | 566-54-24850 | REST,ARM | 1002- | |
| 24 | 01225-40630 | SCREW | 1002- | |
| 25 | 01602-20619 | WASHER | 1002- | |
| 26 | 01640-20610 | WASHER | 1002- | |
| 27 | 566-54-24421 | LOCK ASS'Y | 1002- | |
| 28 | 01225-30612 | SCREW | 1002- | |
| 28A | 566-54-13580 | WASHER | 1002- | |
| 29 | 566-54-24540 | HANDLE | 1002- | |
| 30 | 566-54-24610 | SEAT | 1002- | |
| 31 | 566-54-24620 | SEAT | 1002- | |
| 32 | 01220-30516 | SCREW | 1002- | |
| 33 | 01642-20508 | WASHER | 1002- | |
| 34 | 01601-20513 | WASHER | 1002- | |
| 35 | 566-54-24431 | CONTROL | 1002- | |
| 36 | 01220-30612 | SCREW | 1002- | |
| 37 | 01642-20608 | WASHER | 1002- | |
| 38 | 01602-20619 | WASHER | 1002- | |
| 39 | 566-54-24550 | HANDLE | 1002- | |
| 40 | 566-54-24260 | BASE | 1002- | |
| 41 | 566-54-24270 | ESCUTCHEON | 1002- | |
| 42 | 01225-30516 | SCREW | 1002- | |
| 43 | 566-54-24441 | KEY ASS'Y | 1002- | |
| 44 | 566-54-24190 | SEAL | 1002- | |
| 45 | 566-54-24170 | SEAL | 1002- | |
| 46 | 566-54-24180 | SEAL | 1002- | |
| 47 | 566-54-24232 | PAD | 1002- | |
| 48 | 566-54-23960 | GROMMET | 1002- | |
| 49 | 566-54-23950 | CLIP | 1002- | |
| 50 | 566-54-24320 | BOLT | 1002- | |
| 51 | 01580-10806 | NUT | 1002- | |
| 52 | 01602-20825 | WASHER | 1002- | |
| 53 | 01642-20810 | WASHER | 1002- | |
| 54 | 581-54-13580 | SUPPORT | 1002- | |
| 55 | 566-54-23570 | PIPE | 1002- | |
| 56 | 01010-50820 | BOLT | 1002- | |
| 57 | 01602-20825 | WASHER | 1002- | |
| 58 | 01642-20810 | WASHER | 1002- | |
| 59 | 01580-10806 | NUT | 1002- | |
| 60 | 566-54-24250 | COVER | 1002- | |
| 61 | 01370-00510 | SCREW | 1002- | |
| 62 | 01601-20513 | WASHER | 1002- | |
| 63 | 01642-20508 | WASHER | 1002- | |
| 64 | 566-54-24160 | CHANNEL | 1002- | |
| 65 | 01220-30516 | SCREW | 1002- | |
| 66 | 01601-20513 | WASHER | 1002- | |
| 67 | 01642-20508 | WASHER | 1002- | |
| 68 | 01580-10504 | NUT | 1002- | |
| 69 | 566-54-24810 | GRILLE | 1002- | |
| 70 | 566-54-24820 | SHUTTER ASS'Y | 1002- | |
| 71 | 566-54-24740 | SHEET | 1002- | |
| 72 | 566-54-24180 | SEAL | 1002- | |
| 73 | 01220-30416 | SCREW | 1002- | |
| 74 | 01601-20410 | WASHER | 1002- | |
| 75 | 566-54-24280 | RING | 1002- | |
| 76 | 566-54-24830 | ROD | 1002- | |
| 77 | 566-54-24840 | SNAP | 1002- |
