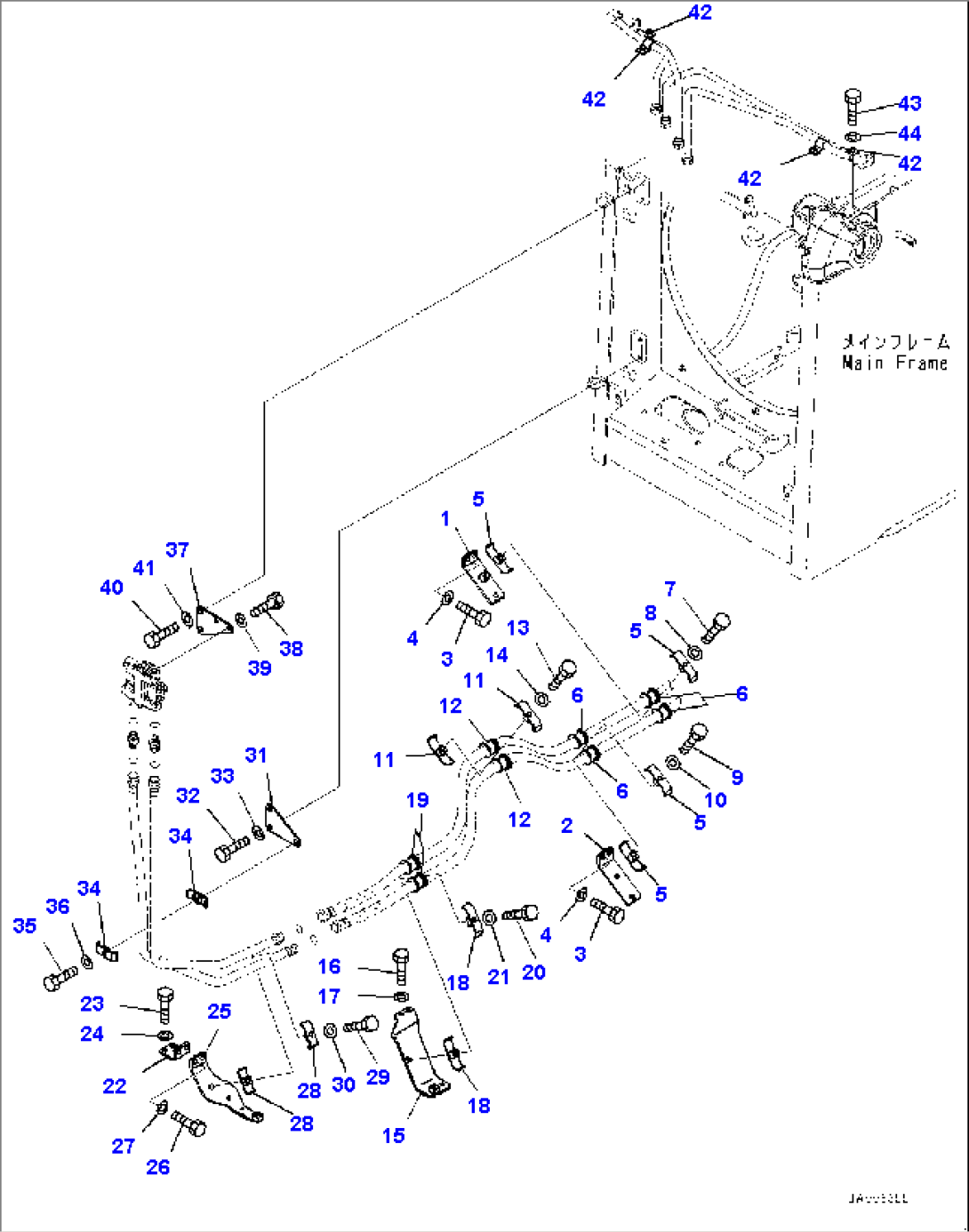

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-62-52621 | Bracket | 1001- | |
| 2 | 14X-62-62621 | Bracket | 1001- | |
| 3 | 01010-81230 | Bolt | 1001- | |
| 4 | 01643-31232 | Washer | 1001- | |
| 5 | 07094-30620 | Clamp | 1001- | |
| 6 | 07095-00628 | Cushion | 1001- | |
| 7 | 01010-81270 | Bolt | 1001- | |
| 8 | 01643-31232 | Washer | 1001- | |
| 9 | 01010-81280 | Bolt | 1001- | |
| 10 | 01643-31232 | Washer | 1001- | |
| 11 | 07094-30620 | Clamp | 1001- | |
| 12 | 07095-00628 | Cushion | 1001- | |
| 13 | 01010-81270 | Bolt | 1001- | |
| 14 | 01643-31232 | Washer | 1001- | |
| 15 | 14X-62-62611 | Bracket | 1001- | |
| 16 | 01010-81230 | Bolt | 1001- | |
| 17 | 01643-31232 | Washer | 1001- | |
| 18 | 07094-30620 | Clamp | 1001- | |
| 19 | 07095-00628 | Cushion | 1001- | |
| 20 | 01010-81280 | Bolt | 1001- | |
| 21 | 01643-31232 | Washer | 1001- | |
| 22 | 14X-62-51271 | Bracket | 1001- | |
| 23 | 01010-81230 | Bolt | 1001- | |
| 24 | 01643-31232 | Washer | 1001- | |
| 25 | 14X-62-61171 | Bracket | 1001- | |
| 26 | 01010-81235 | Bolt | 1001- | |
| 27 | 01643-31232 | Washer | 1001- | |
| 28 | 14X-62-51230 | Clamp | 1001- | |
| 29 | 01010-81260 | Bolt | 1001- | |
| 30 | 01643-31232 | Washer | 1001- | |
| 31 | 14X-62-51191 | Bracket | 1001- | |
| 32 | 01010-81225 | Bolt | 1001- | |
| 33 | 01643-31232 | Washer | 1001- | |
| 34 | 14X-62-51230 | Clamp | 1001- | |
| 35 | 01010-81260 | Bolt | 1001- | |
| 36 | 01643-31232 | Washer | 1001- | |
| 37 | 14X-62-51221 | Plate | 1001- | |
| 38 | 01010-81225 | Bolt | 1001- | |
| 39 | 01643-31232 | Washer | 1001- | |
| 40 | 01010-81225 | Bolt | 1001- | |
| 41 | 01643-31232 | Washer | 1001- | |
| 42 | 10E-60-16330 | Clip | 1001- | |
| 43 | 01010-81225 | Bolt | 1001- | |
| 44 | 01643-31232 | Washer | 1001- |
