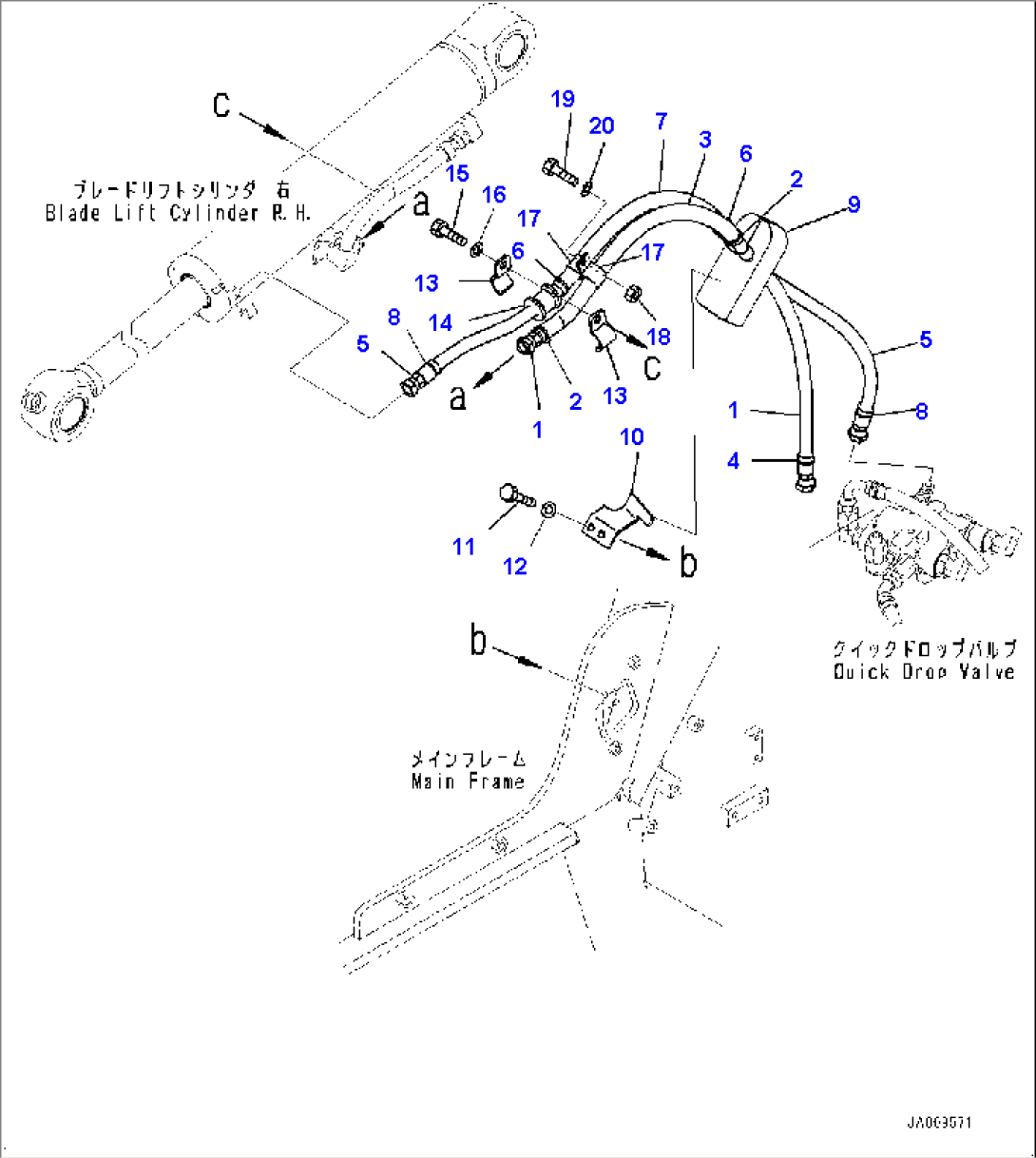

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13Y-62-12214 | Hose | 30001- | |
| 2 | 08034-20414 | Band, Black | 30001- | |
| 3 | 13Y-62-13940 | Cover | 30001- | |
| 4 | 21U-62-34710 | Band, Yellow | 30001- | |
| 5 | 13Y-62-12234 | Hose | 30001- | |
| 6 | 08034-20414 | Band, Black | 30001- | |
| 7 | 13Y-62-13930 | Cover | 30001- | |
| 8 | 21U-62-34730 | Band, Green | 30001- | |
| 9 | 13Y-62-12790 | Bracket | 30001- | |
| 10 | 01010-81035 | Bolt | 30001- | |
| 11 | 01643-31032 | Washer | 30001- | |
| 12 | 418-03-43880 | Clamp | 30001- | |
| 13 | 07095-00420 | Cushion | 30001- | |
| 14 | 01010-81265 | Bolt | 30001- | |
| 15 | 01643-31232 | Washer | 30001- | |
| 16 | 425-43-48220 | Clamp | 30001- | |
| 17 | 07095-00420 | Cushion | 30001- | |
| 18 | 01010-81260 | Bolt | 30001- | |
| 19 | 01643-31232 | Washer | 30001- | |
| 20 | 13Y-62-12250 | Rubber | 30001- | |
| 21 | 13Y-62-12261 | Plate | 30001- | |
| 22 | 01010-81020 | Bolt | 30001- | |
| 23 | 01643-31032 | Washer | 30001- | |
| 24 | 11Y-62-33591 | Clamp | 30001- | |
| 25 | 07095-00420 | Cushion | 30001- | |
| 26 | 01010-81030 | Bolt | 30001- | |
| 27 | 01643-31032 | Washer | 30001- | |
| 28 | 04434-52711 | Clip | 30001- | |
| 29 | 01580-11008 | Nut | 30001- | |
| 30 | 01010-81025 | Bolt | 30001- | |
| 31 | 01643-31032 | Washer | 30001- |
