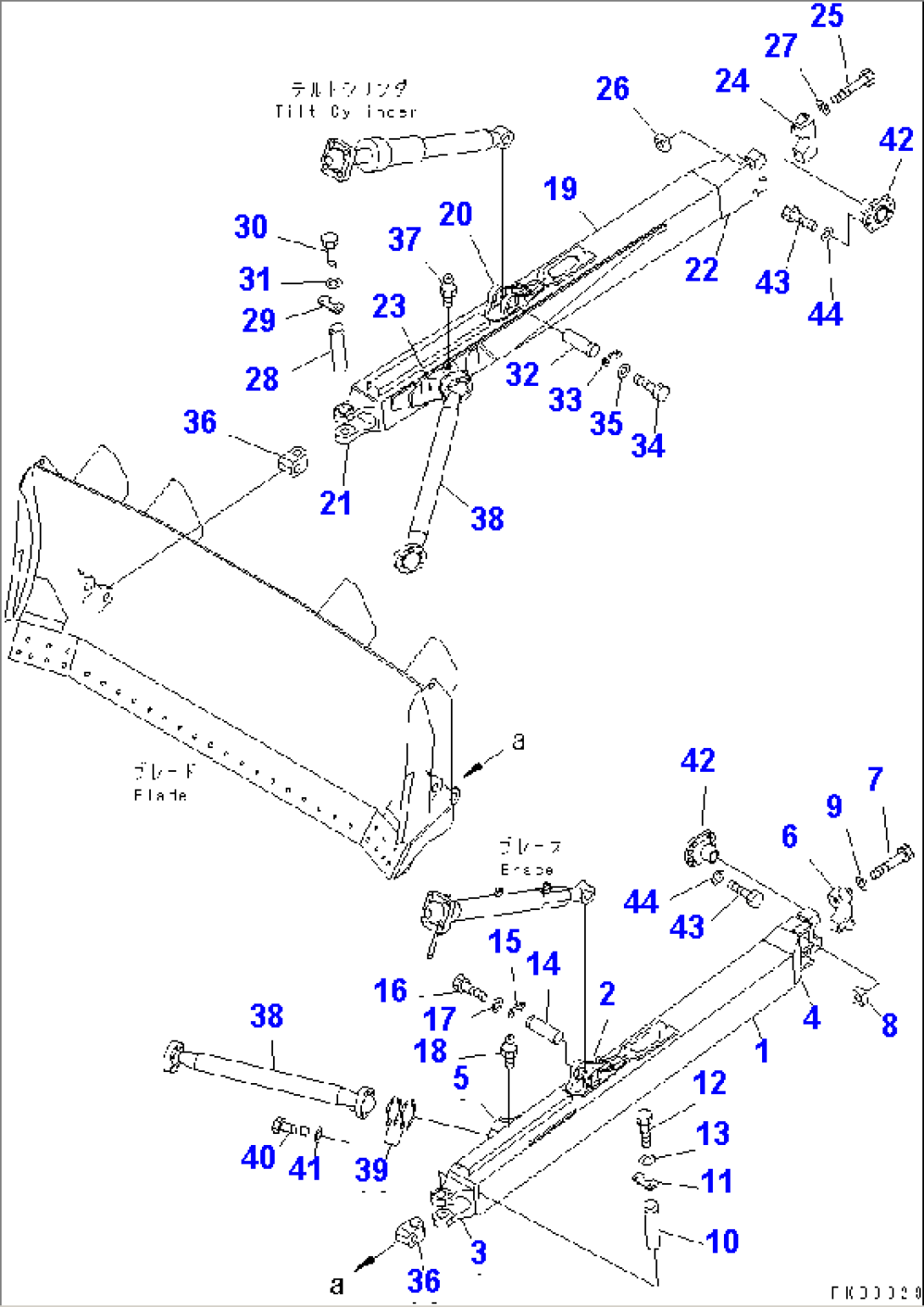

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-71-00010 | STRAIGHT FRAME ASS'Y,L.H. | 60001- | ||
| 1 | \6\ | FRAME,L.H. | 61084- | |
| 1 | \6\ | FRAME,L.H. | 60001-61083 | |
| 2 | 17A-71-12131 | BRACKET (WELDED) | 60001- | |
| 3 | 17A-71-12231 | BRACKET (WELDED) | 60001- | |
| 4 | 17A-71-12241 | BRACKET (WELDED) | 60001- | |
| 5 | 17A-71-12251 | BRACKET,L.H. (WELDED) | 60001- | |
| 6 | 17A-71-12280 | CAP | 60001- | |
| 7 | 175-71-11491 | BOLT | 60001- | |
| 8 | 175-71-11520 | NUT | 60001- | |
| 9 | 01643-32260 | WASHER | 60001- | |
| 10 | 154-71-22470 | PIN | 60001- | |
| 11 | 17A-71-12361 | LOCK | 60001- | |
| 12 | 01010-61635 | BOLT | 60001- | |
| 13 | 01643-31645 | WASHER | 60001- | |
| 14 | 154-71-21290 | PIN | 60001- | |
| 15 | 17A-71-12361 | LOCK | 61048- | |
| 15 | 17A-71-12461 | LOCK | 60001-61047 | |
| 16 | 01010-61435 | BOLT | 60001- | |
| 17 | 01643-31445 | WASHER | 60001- | |
| 18 | 07020-00000 | FITTING,GREASE | 60001- | |
| 17A-71-00020 | STRAIGHT FRAME ASS'Y,R.H. | 60001- | ||
| 19 | \6\ | FRAME,R.H. | 61084- | |
| 19 | \6\ | FRAME,R.H. | 60001-61083 | |
| 20 | 17A-71-12131 | BRACKET (WELDED) | 60001- | |
| 21 | 17A-71-12231 | BRACKET (WELDED) | 60001- | |
| 22 | 17A-71-12241 | BRACKET (WELDED) | 60001- | |
| 23 | 17A-71-12151 | BRACKET,R.H. (WELDED) | 60001- | |
| 24 | 17A-71-12280 | CAP | 60001- | |
| 25 | 175-71-11491 | BOLT | 60001- | |
| 26 | 175-71-11520 | NUT | 60001- | |
| 27 | 01643-32260 | WASHER | 60001- | |
| 28 | 154-71-22470 | PIN | 60001- | |
| 29 | 17A-71-12361 | LOCK | 60001- | |
| 30 | 01010-61635 | BOLT | 60001- | |
| 31 | 01643-31645 | WASHER | 60001- | |
| 32 | 154-71-21290 | PIN | 60001- | |
| 33 | 17A-71-12361 | LOCK | 60001- | |
| 34 | 01010-61435 | BOLT | 60001- | |
| 35 | 01643-31445 | WASHER | 60001- | |
| 36 | 154-71-22261 | JOINT | 60001- | |
| 37 | 07020-00000 | FITTING,GREASE | 60001- | |
| 38 | 17A-71-12521 | ARM | 60001- | |
| 38 | 17A-71-12541 | CAP (WELDED) | 60001- | |
| 38 | 175-71-31563 | STUD,BALL (WELDED) | 60001- | |
| 39 | 17A-71-00030 | SHIM ASS'Y | 60001- | |
| 39 | \6\ | SHIM, 0.5MM | 60001- | |
| 39 | \6\ | SHIM, 1.0MM | 60001- | |
| 39 | \6\ | SHIM, 2.0MM | 60001- | |
| 40 | 01010-62490 | BOLT | 60001- | |
| 41 | 01643-32460 | WASHER | 60001- | |
| 42 | 17A-71-12262 | TRUNNION | 61048- | |
| 42 | 17A-71-12261 | TRUNNION | 60001-61047 | |
| 43 | 01010-62450 | BOLT | 60001- | |
| 44 | 01643-32460 | WASHER | 60001- |
