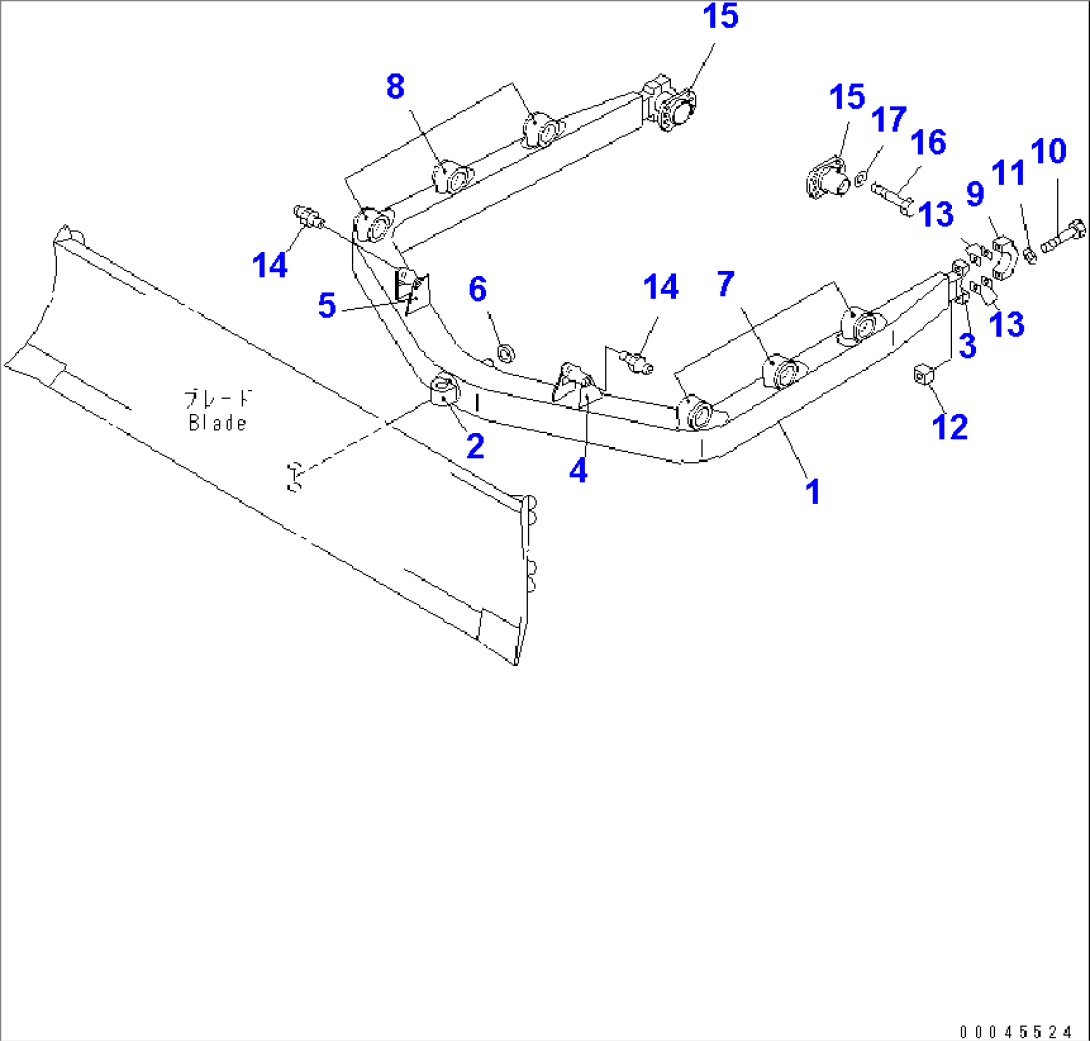

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-70-00010 | C-FRAME ASS'Y,ANGLE | 1001- | ||
| 1 | \6\ | FRAME,ANGLE | 1001- | |
| 2 | 14U-70-12120 | PIN | 1001- | |
| 3 | \6\ | PIVOT,(WELDED) (KIT) | 1001- | |
| 4 | 134-70-61230 | BRACKET,L.H. (WELDED) | 1001- | |
| 5 | 134-70-61220 | BRACKET,R.H. (WELDED) | 1001- | |
| 6 | 140-70-13130 | COLLAR (WELDED) | 1001- | |
| 7 | 144-70-13210 | BRACKET,L.H. (WELDED) | 1001- | |
| 8 | 144-70-13220 | BRACKET,R.H. (WELDED) | 1001- | |
| 9 | 14Y-71-22150 | CAP (KIT) | 1001- | |
| 10 | 01011-82465 | BOLT (KIT) | 1001- | |
| 11 | 01643-32460 | WASHER (KIT) | 1001- | |
| 12 | 130-70-13241 | NUT (KIT) | 1001- | |
| 13 | 14Y-71-22280 | SHIM, T=1.0 (KIT) | 1001- | |
| 14 | 07020-00000 | FITTING,GREASE | 1001- | |
| 15 | 14Z-71-33212 | TRUNNION | 1003- | |
| 15 | 14Y-71-13211 | TRUNNION | 1001-1002 | |
| 16 | 01010-82065 | BOLT | 1001- | |
| 17 | 01643-32060 | WASHER | 1001- | |
| SERVICE PARTS | ||||
| 3 | 14X-70-00071 | PIVOT ASS'Y | 1001- | |
| 3 | \6\ | PIVOT (WELDED) | 1001- | |
| 9 | 14Y-71-12150 | CAP | 1001- | |
| 10 | 01011-82465 | BOLT | 1001- | |
| 11 | 01643-32460 | WASHER | 1001- | |
| 12 | 130-70-13241 | NUT | 1001- | |
| 13 | 14Y-71-22280 | SHIM, T=1.0 | 1001- |
