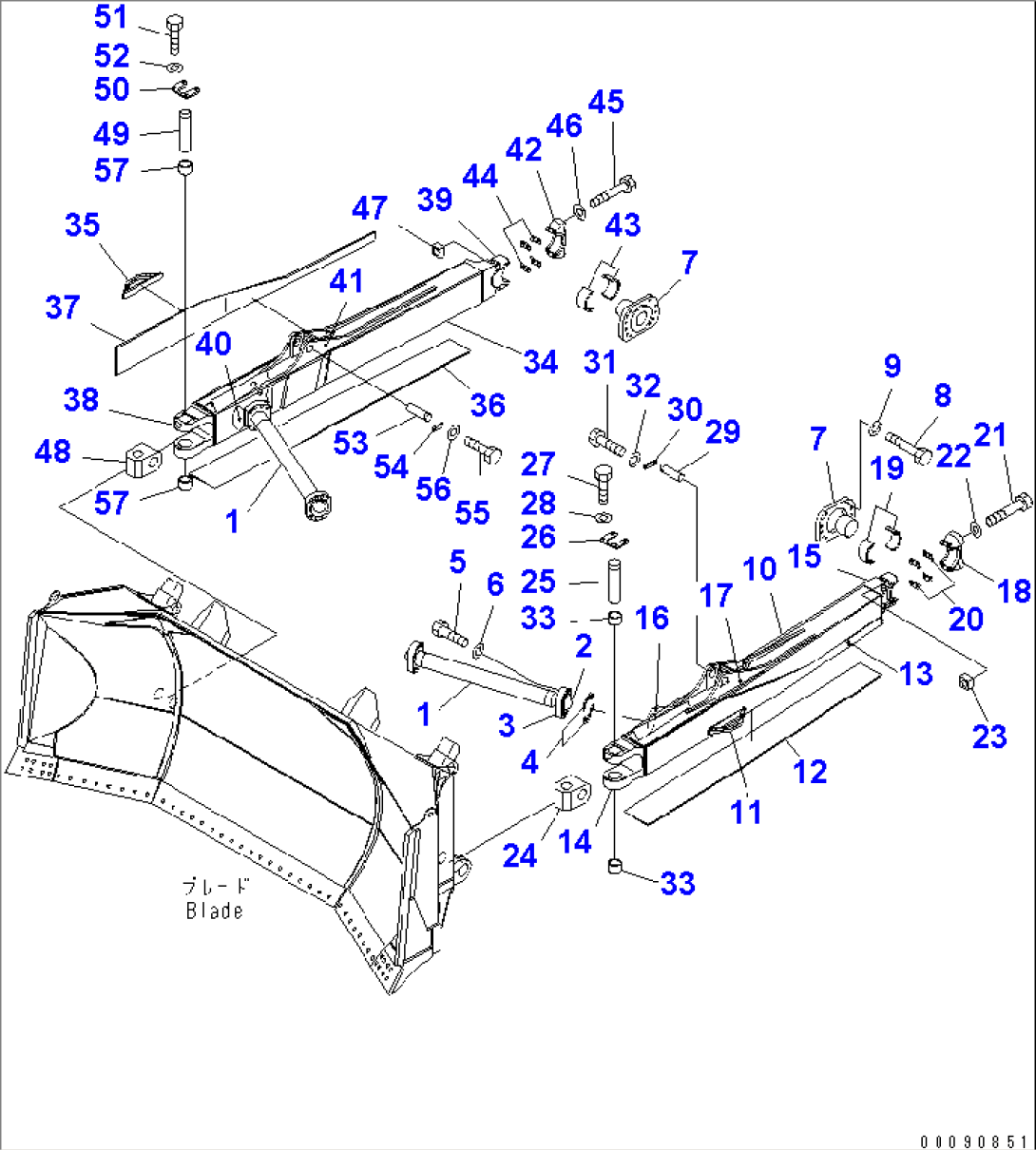

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-72-51350 | ARM | 30001- | |
| 2 | 198-71-31271 | BALL (WELDED) | 30001- | |
| 3 | 198-71-31291 | CAP | 30001- | |
| 4 | 198-71-00340 | SHIM ASS'Y | 30001- | |
| 4 | \6\ | SHIM, 2.0MM | 30001- | |
| 4 | \6\ | SHIM, 1.0MM | 30001- | |
| 4 | \6\ | SHIM, 0.5MM | 30001- | |
| 5 | 01011-83335 | BOLT | 30001- | |
| 6 | 01643-33380 | WASHER | 30001- | |
| 7 | 198-71-21292 | TRUNNION | 30001- | |
| 8 | 01011-83005 | BOLT | 30001- | |
| 9 | 01643-33080 | WASHER | 30001- | |
| 10 | 198-71-66710 | FRAME | 30001- | |
| 11 | 198-71-51250 | STEP (WELDED) | 30001- | |
| 12 | 198-71-63120 | PLATE (WELDED) | 30001- | |
| 13 | 198-71-63130 | PLATE (WELDED) | 30001- | |
| 14 | 198-71-31181 | BRACKET (WELDED) | 30001- | |
| 15 | 198-71-51380 | BRACKET (WELDED) | 30001- | |
| 16 | 198-71-65161 | BRACKET (WELDED) | 30001- | |
| 17 | 198-71-63151 | BRACKET (WELDED) | 30001- | |
| 18 | 198-71-51390 | CAP | 30001- | |
| 19 | 198-71-51340 | BUSHING | 30001- | |
| 20 | 198-72-00110 | SHIM ASS'Y | 30001- | |
| 20 | \6\ | SPACER | 30001- | |
| 21 | 198-61-11250 | BOLT | 30001- | |
| 22 | 01643-33380 | WASHER | 30001- | |
| 23 | 195-71-11510 | NUT | 30001- | |
| 24 | 198-71-31380 | JOINT | 30001- | |
| 25 | 198-72-51810 | PIN | 30001- | |
| 26 | 09257-01219 | LOCK | 30001- | |
| 27 | 01010-82460 | BOLT | 30001- | |
| 28 | 01643-32460 | WASHER | 30001- | |
| 29 | 198-71-21561 | PIN | 30001- | |
| 30 | 198-71-21620 | LOCK | 30001- | |
| 31 | 01010-82050 | BOLT | 30001- | |
| 32 | 01643-32060 | WASHER | 30001- | |
| 33 | 19M-72-11621 | BUSHING | 30001- | |
| 34 | 198-71-66730 | FRAME | 30001- | |
| 35 | 198-71-51250 | STEP (WELDED) | 30001- | |
| 36 | 198-71-64120 | PLATE (WELDED) | 30001- | |
| 37 | 198-71-64130 | PLATE (WELDED) | 30001- | |
| 38 | 198-71-31191 | BRACKET (WELDED) | 30001- | |
| 39 | 198-71-51380 | BRACKET (WELDED) | 30001- | |
| 40 | 198-71-66161 | BRACKET (WELDED) | 30001- | |
| 41 | 198-71-64151 | BRACKET (WELDED) | 30001- | |
| 42 | 198-71-51390 | CAP | 30001- | |
| 43 | 198-71-51340 | BUSHING | 30001- | |
| 44 | 198-72-00110 | SHIM ASS'Y | 30001- | |
| 44 | \6\ | SPACER | 30001- | |
| 45 | 198-61-11250 | BOLT | 30001- | |
| 46 | 01643-33380 | WASHER | 30001- | |
| 47 | 195-71-11510 | NUT | 30001- | |
| 48 | 198-71-31380 | JOINT | 30001- | |
| 49 | 198-72-51810 | PIN | 30001- | |
| 50 | 09257-01219 | LOCK | 30001- | |
| 51 | 01010-82460 | BOLT | 30001- | |
| 52 | 01643-32460 | WASHER | 30001- | |
| 53 | 198-71-21561 | PIN | 30001- | |
| 54 | 198-71-21620 | LOCK | 30001- | |
| 55 | 01010-82050 | BOLT | 30001- | |
| 56 | 01643-32060 | WASHER | 30001- | |
| 57 | 19M-72-11621 | BUSHING | 30001- |
