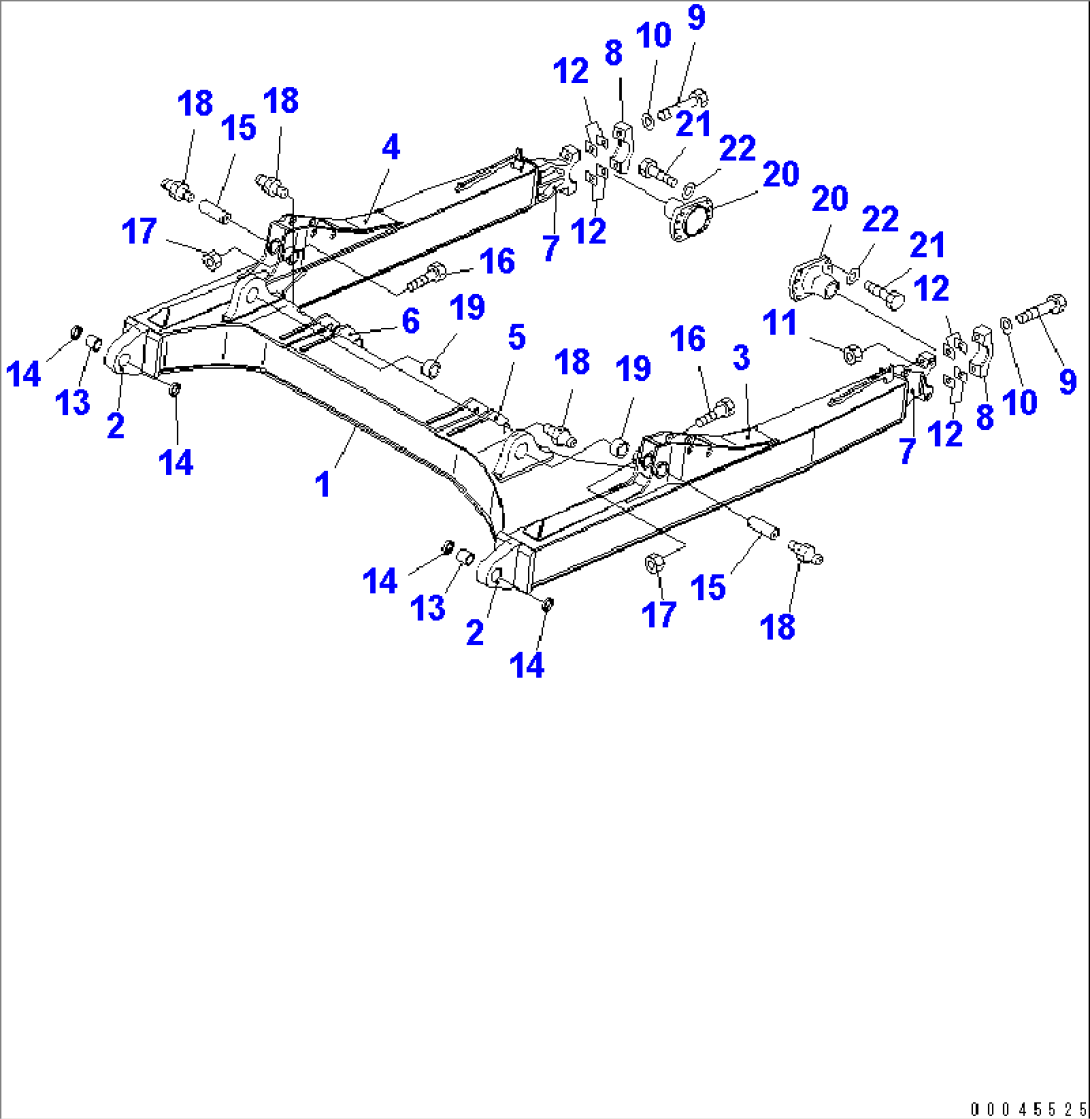

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-Y16-1380 | FRAME ASS'Y | 1001- | |
| 2 | 134-Y16-1F50 | PLATE (WELDED) | 1001- | |
| 3 | 134-Y16-1390 | BRACKET,L.H. (WELDED) | 1001- | |
| 4 | 134-Y16-1410 | BRACKET,R.H. (WELDED) | 1001- | |
| 5 | 14X-916-1130 | BRACKET,L.H. (WELDED) | 1001- | |
| 6 | 14X-916-1140 | BRACKET,R.H. (WELDED) | 1001- | |
| 7 | \6\ | BEARING,(WELDED) (KIT) | 1001- | |
| 8 | 14Y-71-22150 | CAP (KIT) | 1001- | |
| 9 | 01011-82465 | BOLT (KIT) | 1001- | |
| 10 | 01643-32460 | WASHER (KIT) | 1001- | |
| 11 | 130-70-13241 | NUT (KIT) | 1001- | |
| 12 | 14Y-71-22280 | SHIM, T=1.0 (KIT) | 1001- | |
| 13 | 07143-10606 | BUSHING | 1001- | |
| 14 | 07145-00060 | SEAL | 1001- | |
| 15 | 134-Y16-1430 | PIN | 1001- | |
| 16 | 01011-81025 | BOLT | 1001- | |
| 17 | 01598-01011 | NUT | 1001- | |
| 18 | 07020-00000 | FITTING,GREASE | 1001- | |
| 19 | 154-55-16860 | BUSHING | 1004- | |
| 20 | 14Z-71-33212 | TRUNNION | 1003- | |
| 20 | 14Z-71-33211 | TRUNNION | 1001-1002 | |
| 21 | 01010-82065 | BOLT | 1001- | |
| 22 | 01643-32060 | WASHER | 1001- | |
| SERVICE PARTS | ||||
| 7 | 14Y-71-00091 | PIVOT ASS'Y | 1001- | |
| 7 | \6\ | BEARING (WELDED) | 1001- | |
| 8 | 14Y-71-22150 | CAP | 1001- | |
| 9 | 01011-82465 | BOLT | 1001- | |
| 10 | 01643-32460 | WASHER | 1001- | |
| 11 | 130-70-13241 | NUT | 1001- | |
| 12 | 14Y-71-22280 | SHIM, T=1.0 | 1001- |
