| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 140-908-1110 | WIRE ROPE | 3001- | |
| 2 | 140-908-1120 | CLIP | 3001- | |
| 3 | 140-908-1130 | CLAMP | 3001- | |
| 4 | 01580-10806 | NUT | 3001- | |
| 5 | 01602-20825 | WASHER,SPRING | 3001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ess 2 s/n 3001 3033 (for southeast asia)
- Miscellaneous
- Dozer lock (for angle)(#3001 )
Поиск по каталогу

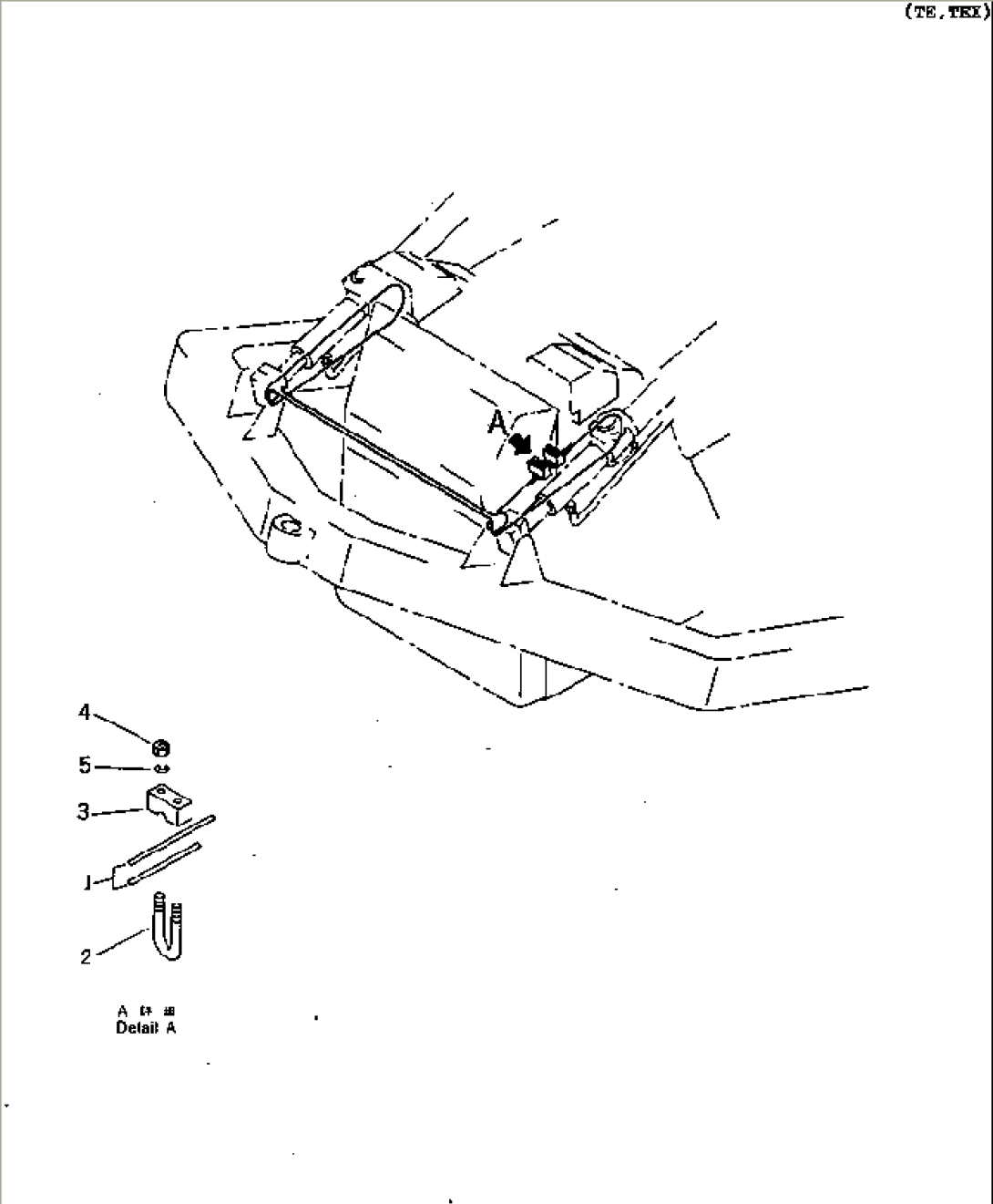

DOZER LOCK (FOR ANGLE)(#3001-)
