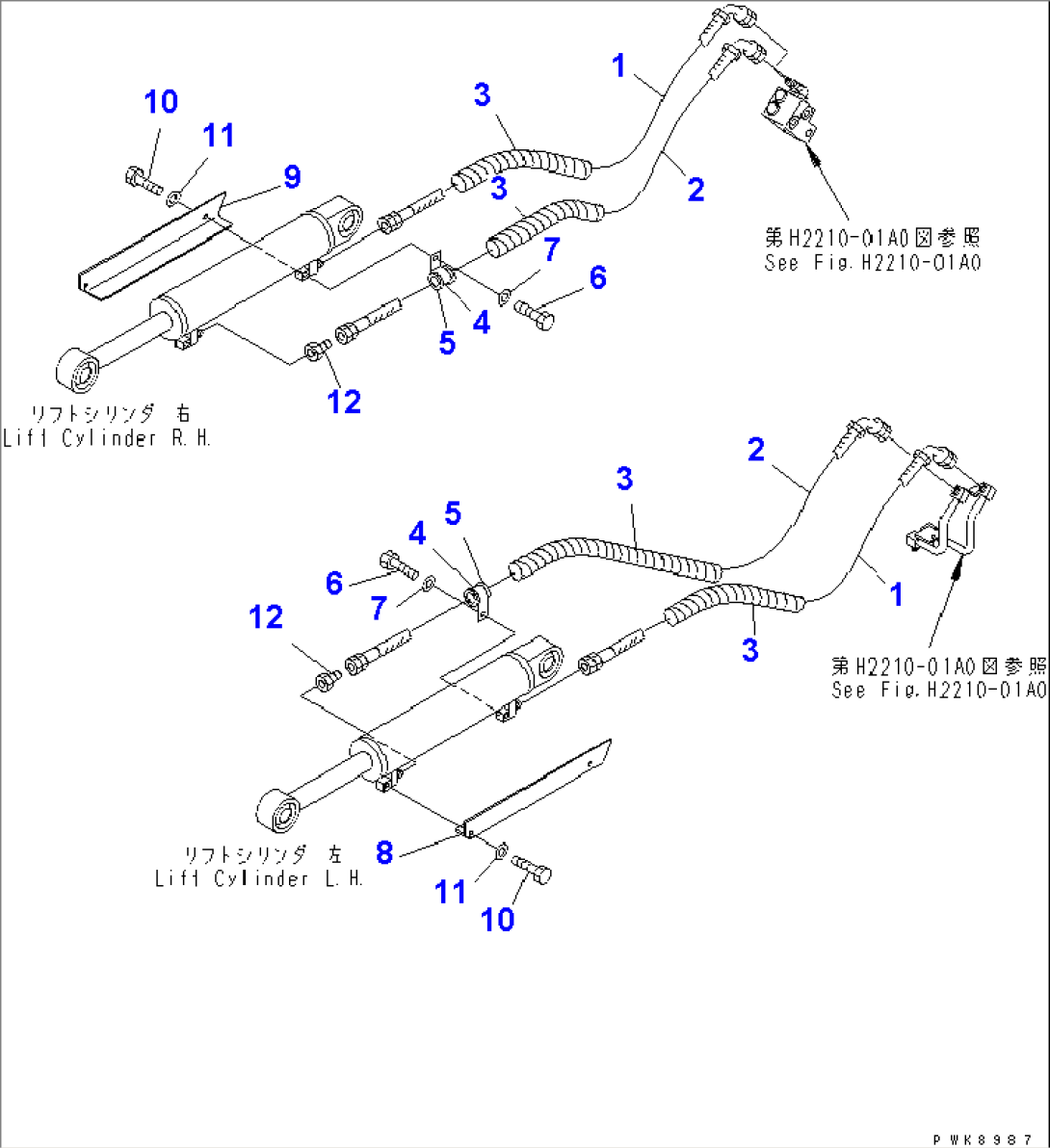

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-62-63111 | HOSE¤ 700MM | 1001- | |
| 2 | 134-62-63121 | HOSE¤ 1150MM | 1001- | |
| 3 | 08210-01806 | SPIRAL TUBE | 1143- | |
| 08210-01803 | SPIRAL TUBE | 1001-1142 | ||
| 4 | 04434-52712 | CLIP | 1001- | |
| 5 | 07095-20420 | CUSHION | 1001- | |
| 6 | 01010-81220 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 134-62-63132 | COVER,L.H. | 1001- | |
| 9 | 134-62-63141 | COVER,R.H. | 1001- | |
| 10 | 01010-81220 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 134-62-64130 | NIPPLE | 1001- |
