| Item | Part No. | Part Name | Qty | Serial No. |

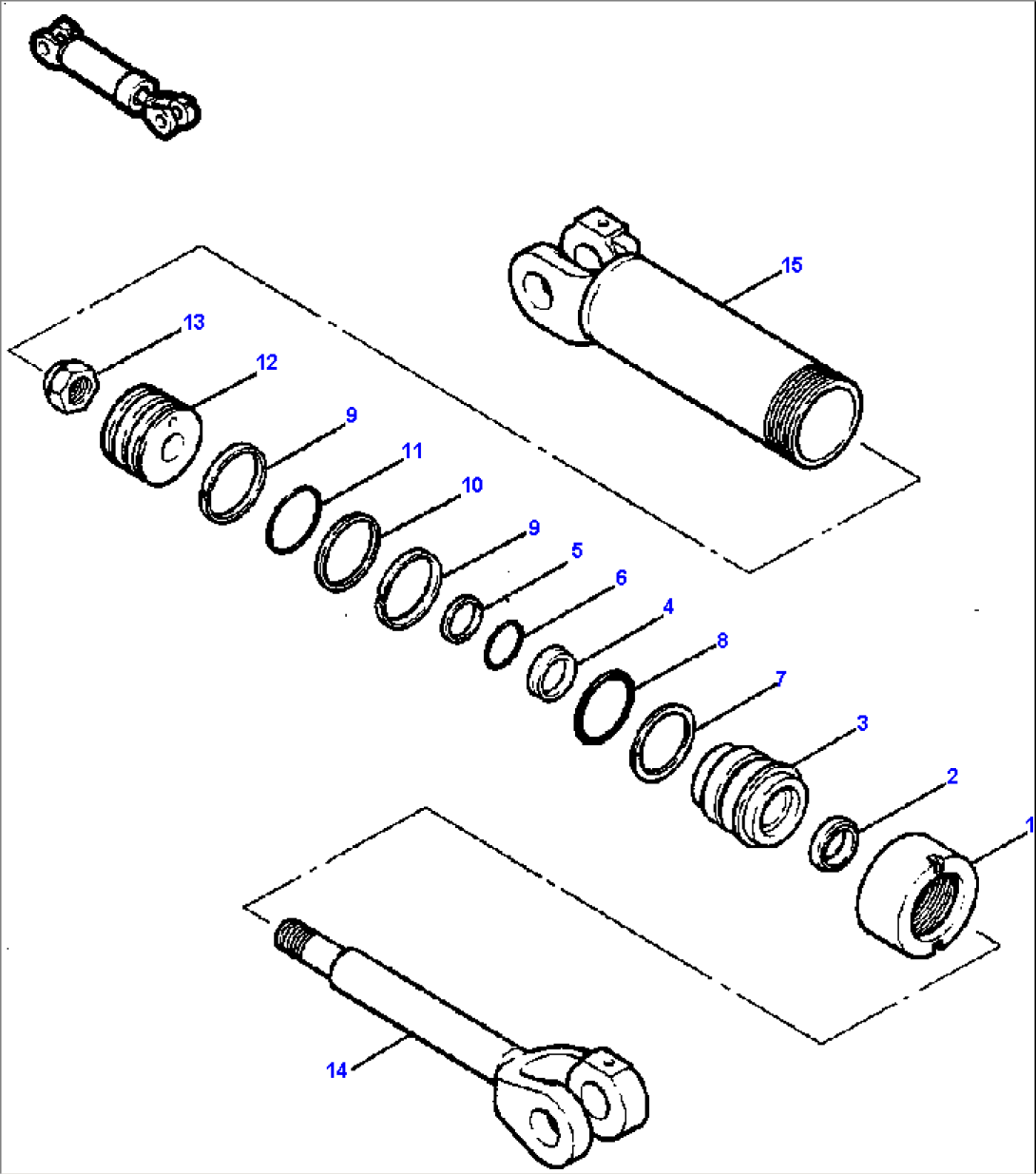

| 620 615 C93 | CYLINDER ASSEMBLY, TILT | |||
| 1 | 940 678 C1 | RETAINER, GLAND | ||
| 2 | (NSS) | WIPER, ROD | ||
| 3 | 620 609 C3 | GLAND, CYLINDER | ||
| 4 | (NSS) | SEAL, ROD | ||
| 5 | (NSS) | RING, WEAR | ||
| 6 | (NSS) | O-RING | ||
| 7 | (NSS) | RING, BACKUP | ||
| 8 | (NSS) | O-RING | ||
| 9 | (NSS) | RING, WEAR | ||
| 10 | (NSS) | SEAL, PISTON | ||
| 11 | (NSS) | O-RING | ||
| 12 | 620 607 C1 | PISTON, CYLINDER | ||
| 13 | 25 126 R1 | NUT, LOCK - 1-1/8NF | ||
| 14 | 620 619 C1 | ROD, CYLINDER | ||
| 15 | 620 616 C1 | HOUSING, CYLINDER | ||
| 1124 732 C93 | KIT, SEAL | |||
| (NSS) | WIPER, ROD | |||
| (NSS) | SEAL, ROD | |||
| (NSS) | RING, WEAR | |||
| (NSS) | O-RING | |||
| (NSS) | RING, BACKUP | |||
| (NSS) | O-RING | |||
| (NSS) | RING, WEAR | |||
| (NSS) | SEAL, PISTON | |||
| (NSS) | O-RING | |||
| F1 - FOR MOUNTING SEE PG 10-120. | ||||
| F2 - PART OF SEAL KIT 1124 732 C93 OR 626 230 C5. |
