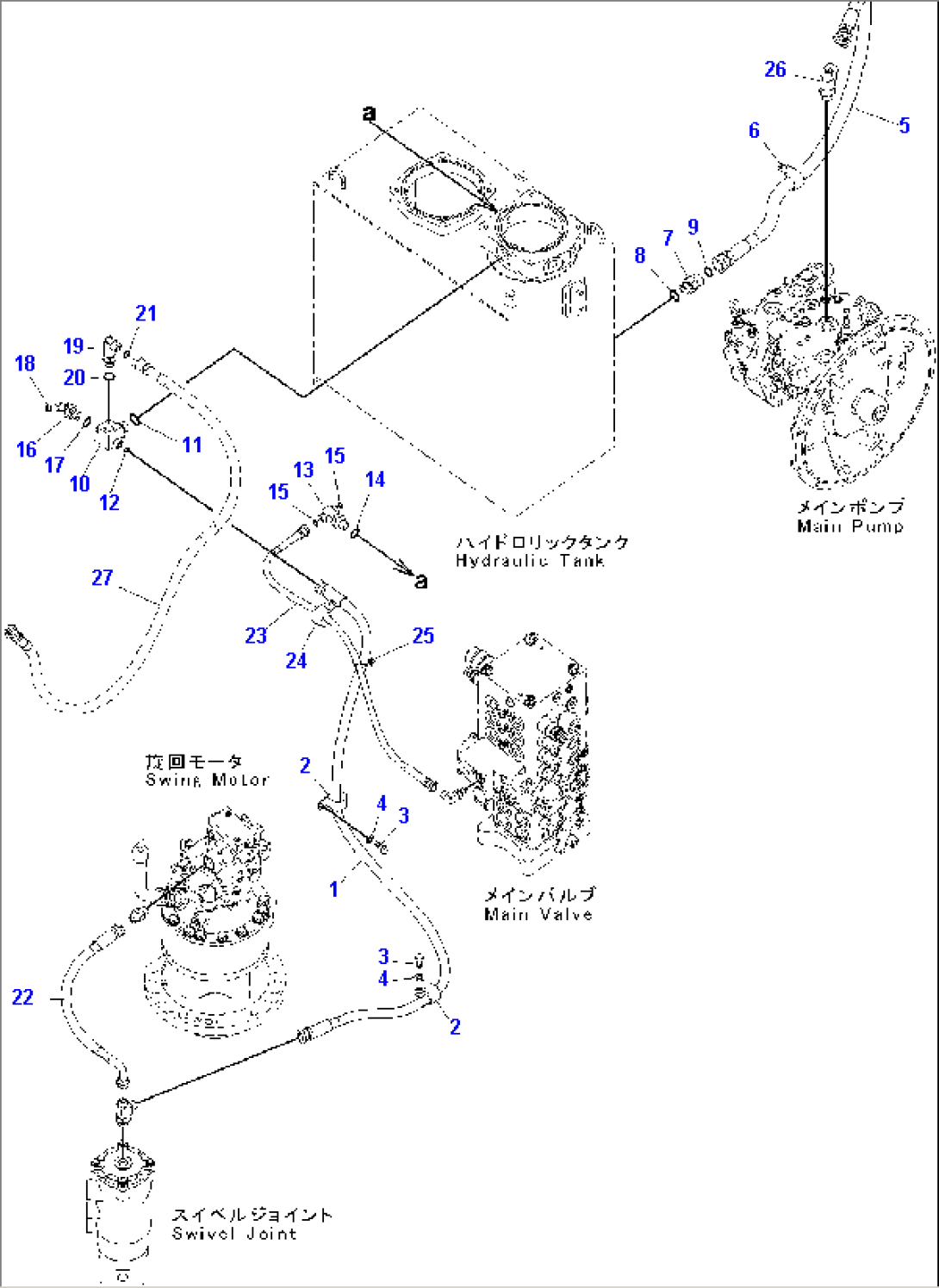

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02762-00417 | Hose, Face Seal Type | C30001- | |
| 2 | 04434-51812 | Clip | C30001- | |
| 3 | 01010-81220 | Bolt | C30001- | |
| 4 | 01643-31232 | Washer | C30001- | |
| 5 | 203-62-11761 | Hose | C30001- | |
| 6 | 04434-52712 | Clip | C30001- | |
| 7 | 02781-00628 | Union | C30001- | |
| 8 | 07002-12434 | O-ring | C30001- | |
| 9 | 02896-11018 | O-ring | C30001- | |
| 10 | 203-62-13441 | Tee | C30001- | |
| 11 | 07002-12434 | O-ring | C30001- | |
| 12 | 02896-11012 | O-ring | C30001- | |
| 13 | 209-64-16721 | Tee | C30001- | |
| 14 | 07002-12034 | O-ring | C30001- | |
| 15 | 02896-11009 | O-ring | C30001- | |
| 16 | 02782-10315 | Elbow | C30001- | |
| 17 | 07002-12034 | O-ring | C30001- | |
| 18 | 02896-11009 | O-ring | C30001- | |
| 19 | 02782-10423 | Elbow | C30001- | |
| 20 | 07002-12034 | O-ring | C30001- | |
| 21 | 02896-11012 | O-ring | C30001- | |
| 22 | 203-62-11691 | Hose | C30001- | |
| 23 | 203-62-11741 | Hose | C30001- | |
| 24 | 04434-51412 | Clip | C30001- | |
| 25 | 08034-20536 | Band | C30001- | |
| 26 | (22B-62-17110) | Elbow | - | |
| 27 | (203-62-13830) | Hose | - |
