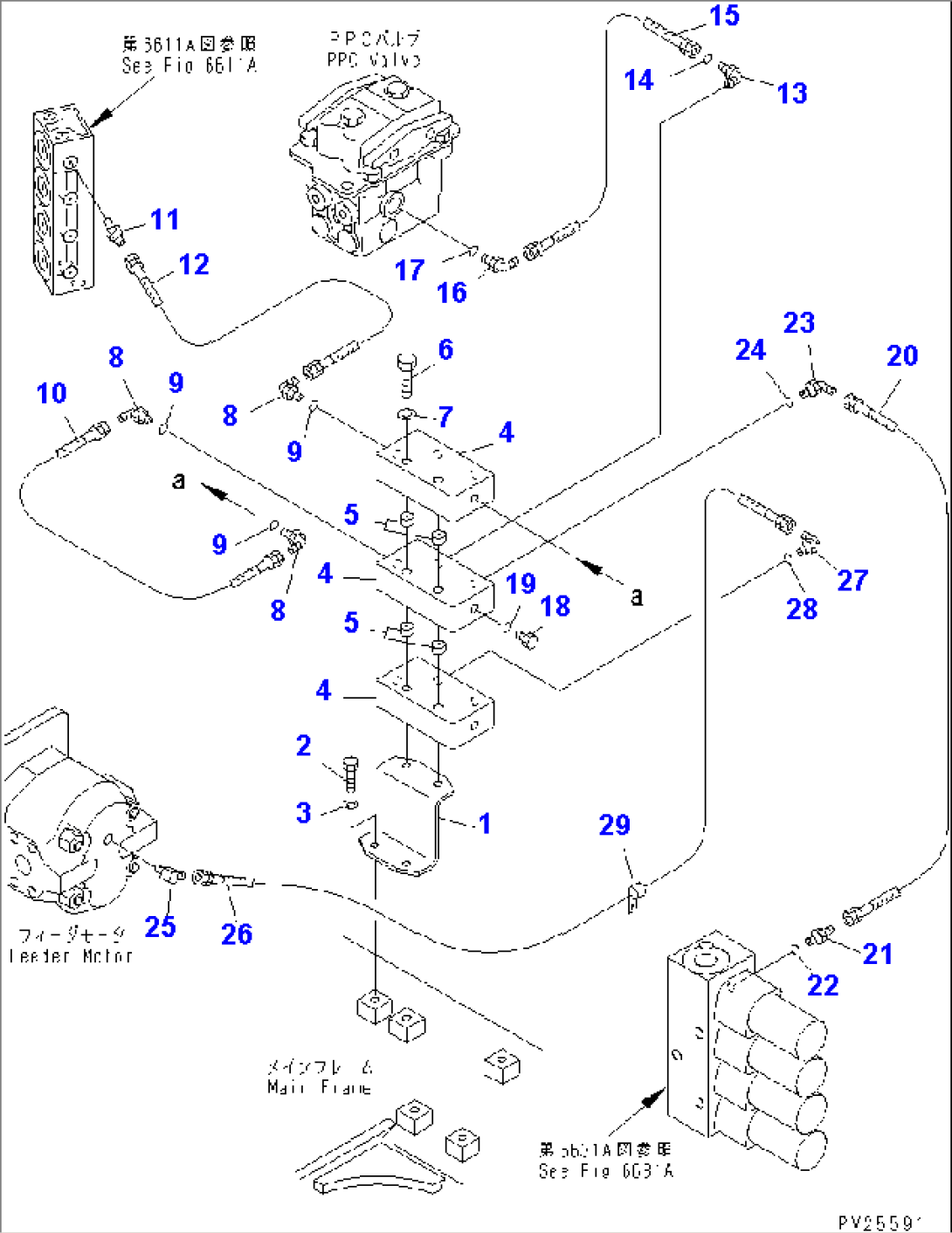

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8206-62-3160 | BRACKET | 1002- | |
| 2 | 01010-81020 | BOLT | 1002- | |
| 3 | 01643-31032 | WASHER | 1002- | |
| 4 | 20Y-62-15831 | BLOCK | 1002- | |
| 5 | 567-54-11610 | SPACER | 1002- | |
| 6 | 01011-81020 | BOLT | 1002- | |
| 7 | 01643-31032 | WASHER | 1002- | |
| 8 | 07235-10210 | ELBOW | 1002- | |
| 9 | 07002-01423 | O-RING | 1002- | |
| 10 | 07102-20203 | HOSE | 1002- | |
| 11 | 208-06-11220 | NIPPLE | 1002- | |
| 12 | 07102-20216 | HOSE | 1101- | |
| 13 | 07235-10210 | ELBOW | 1002- | |
| 14 | 07002-01423 | O-RING | 1002- | |
| 15 | 07102-20220 | HOSE | 1002- | |
| 16 | 07235-10210 | ELBOW | 1002- | |
| 17 | 07002-01423 | O-RING | 1002- | |
| 18 | 07040-11409 | PLUG | 1002- | |
| 19 | 07002-01423 | O-RING | 1002- | |
| 20 | 07102-20303 | HOSE | 1002- | |
| 21 | 07230-20315 | UNION | 1002- | |
| 22 | 07002-02034 | O-RING | 1002- | |
| 23 | 207-62-33920 | ELBOW | 1002- | |
| 24 | 07002-01423 | O-RING | 1002- | |
| 25 | 567-35-12160 | ELBOW | 1101- | |
| 26 | 07102-20239 | HOSE | 1002- | |
| 27 | 07235-10210 | ELBOW | 1002- | |
| 28 | 07002-01423 | O-RING | 1002- | |
| 29 | 04434-52112 | CLIP | 1002- |
