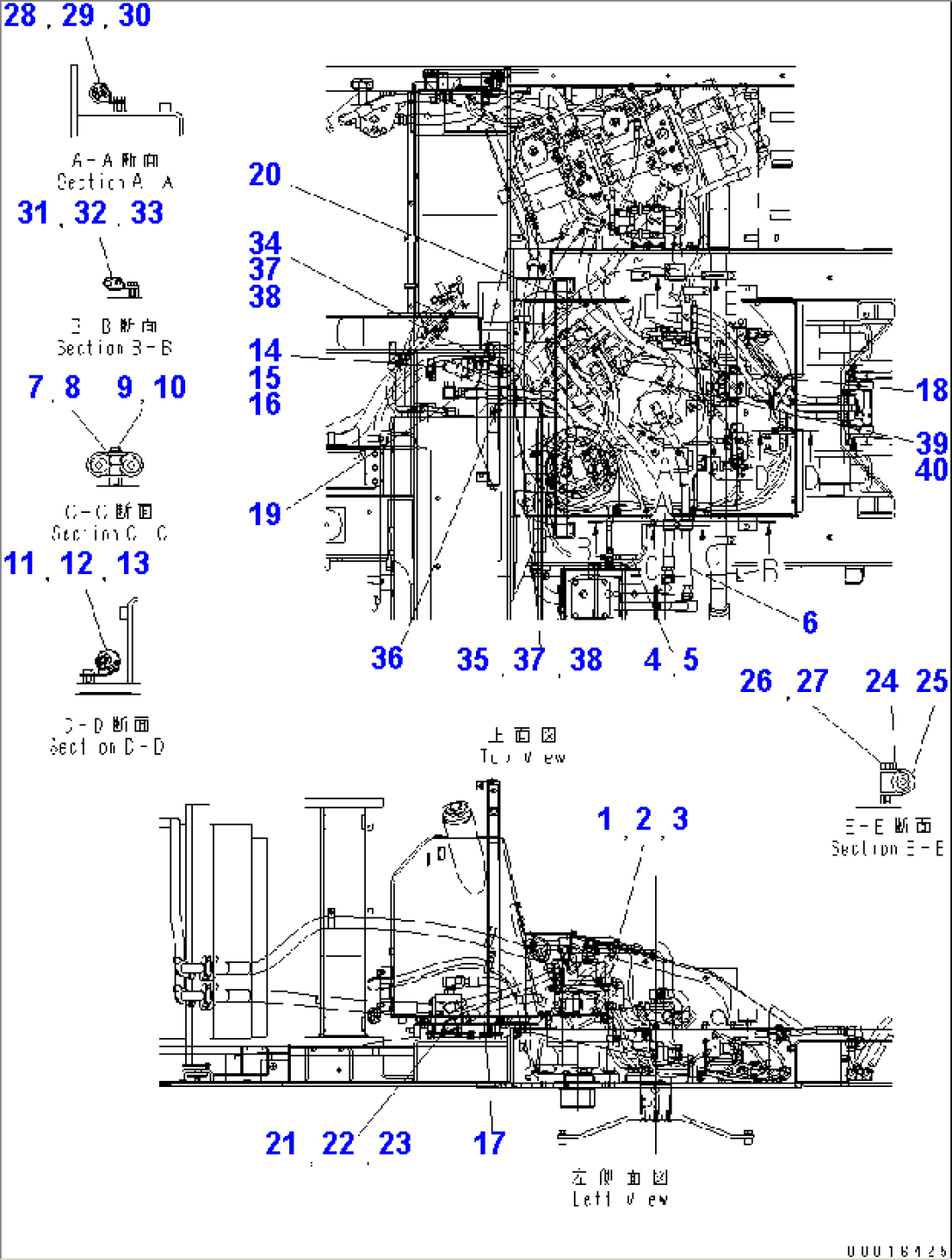

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-61-35140 | TEE | 1501- | |
| 2 | 07002-12034 | O-RING | 1501- | |
| 3 | 02896-11009 | O-RING | 1501- | |
| 4 | 02761-00307 | HOSE | 1501- | |
| 5 | 08210-01205 | SPIRAL TUBE | 1501- | |
| 6 | 14S-62-22190 | HOSE, 780MM | 1501- | |
| 7 | 07094-31024 | CLAMP | 1507- | |
| 7 | 07094-30620 | CLAMP | 1501-1506 | |
| 8 | 07095-01037 | CUSHION | 1507- | |
| 8 | 07095-00630 | CUSHION | 1501-1506 | |
| 9 | 01010-81275 | BOLT | 1507- | |
| 9 | 01010-81265 | BOLT | 1501-1506 | |
| 10 | 01643-31232 | WASHER | 1507- | |
| 10 | 01643-31232 | WASHER | 1501-1506 | |
| 11 | 419-09-11150 | CLIP | 1501- | |
| 12 | 01010-81020 | BOLT | 1501- | |
| 13 | 01643-31032 | WASHER | 1501- | |
| 14 | 569-43-84720 | ELBOW | 1501- | |
| 15 | 07000-13029 | O-RING | 1501- | |
| 16 | 207-62-64740 | O-RING | 1501- | |
| 17 | 14S-62-22170 | HOSE, 1700MM | 1501- | |
| 18 | 08210-01812 | SPIRAL TUBE | 1504- | |
| 19 | 14S-62-22720 | HOSE, 1430MM | 1504- | |
| 19 | 14S-62-22470 | HOSE, 1100MM | 1501-1503 | |
| 20 | 08210-01805 | SPIRAL TUBE | 1504- | |
| 21 | 21W-62-42640 | ELBOW | 1501- | |
| 22 | 07002-13334 | O-RING | 1501- | |
| 23 | 207-62-64740 | O-RING | 1501- | |
| 24 | 07094-11024 | CLAMP | 1507- | |
| 24 | 07094-10620 | CLAMP | 1501-1506 | |
| 25 | 07095-01037 | CUSHION | 1507- | |
| 25 | 07095-00630 | CUSHION | 1501-1506 | |
| 26 | 01010-81275 | BOLT | 1507- | |
| 26 | 01010-81265 | BOLT | 1501-1506 | |
| 27 | 01643-31232 | WASHER | 1501- | |
| 28 | 04434-53411 | CLIP | 1501- | |
| 29 | 01010-81020 | BOLT | 1501- | |
| 30 | 01643-31032 | WASHER | 1501- | |
| 31 | 04435-51810 | CLIP | 1501- | |
| 32 | 01010-81020 | BOLT | 1501- | |
| 33 | 01643-31032 | WASHER | 1501- | |
| 34 | 14S-54-21790 | BRACKET | 1504- | |
| 35 | 155-61-15350 | CLIP | 1504- | |
| 36 | 04434-52712 | CLIP | 1504- | |
| 37 | 01010-81020 | BOLT | 1504- | |
| 38 | 01643-31032 | WASHER | 1504- | |
| 39 | 07095-01037 | CUSHION | 1507- | |
| 39 | 07095-01035 | CUSHION | 1504-1506 | |
| 40 | 08034-40521 | BAND | 1507- |
