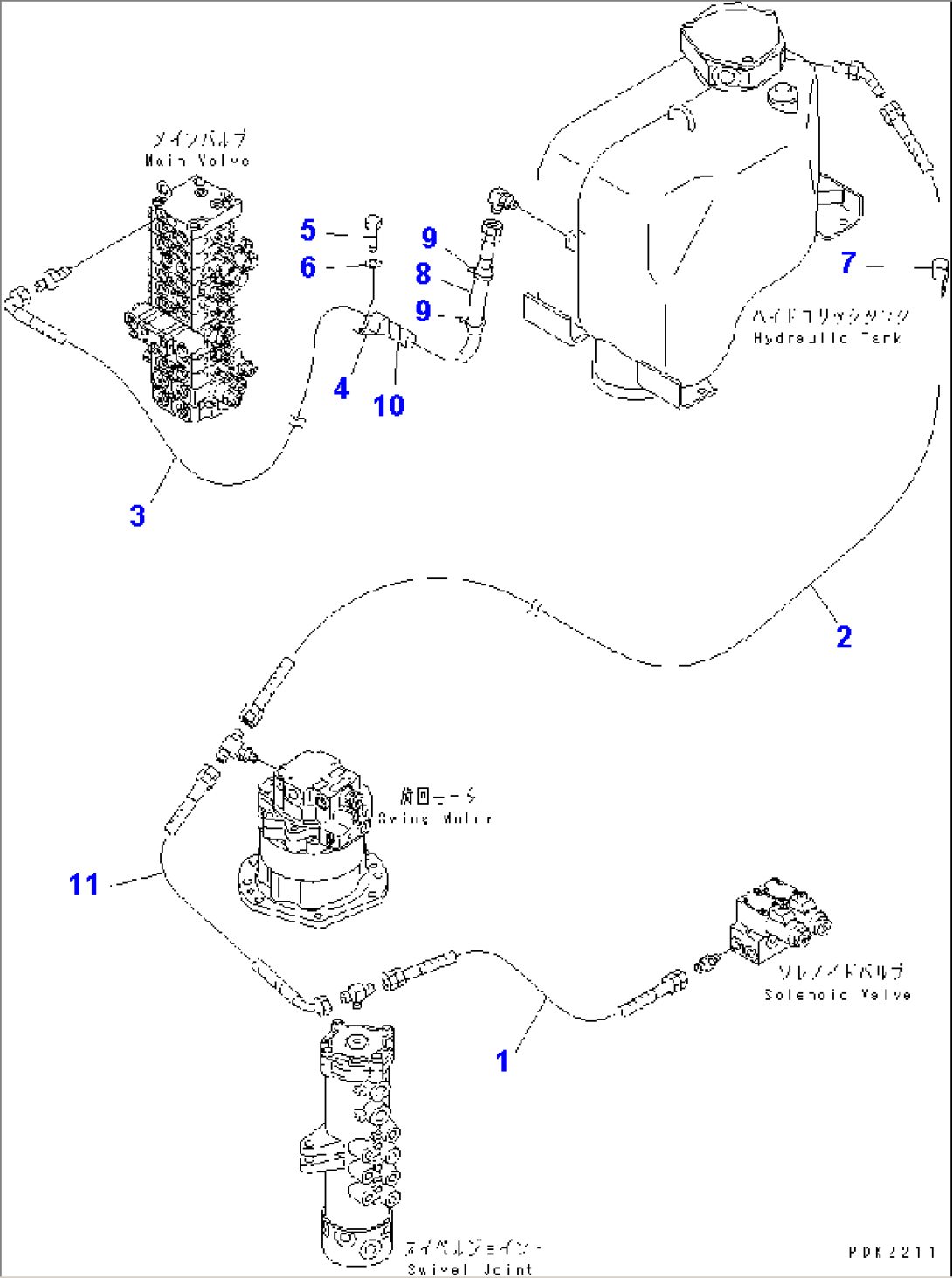

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20304 | HOSE | 10001- | |
| 2 | 20T-62-84430 | HOSE | 10001- | |
| 3 | (20T-62-84150) | HOSE,(SEE FIG. H1840-01A0-22) | 10001-10793 | |
| 4 | 04434-53211 | CLIP | 10001- | |
| 5 | 01010-81025 | BOLT | 10001- | |
| 6 | 01643-31032 | WASHER | 10001- | |
| 7 | 04434-51510 | CLIP | 10001- | |
| 8 | 203-62-41150 | COVER | 10001- | |
| 9 | 08034-00823 | BAND | 10001- | |
| 10 | 203-62-32440 | COVER | 10001- | |
| 11 | 20S-910-8370 | HOSE | 10374- | |
| 11 | 20S-910-8360 | HOSE | 10001-10373 |
