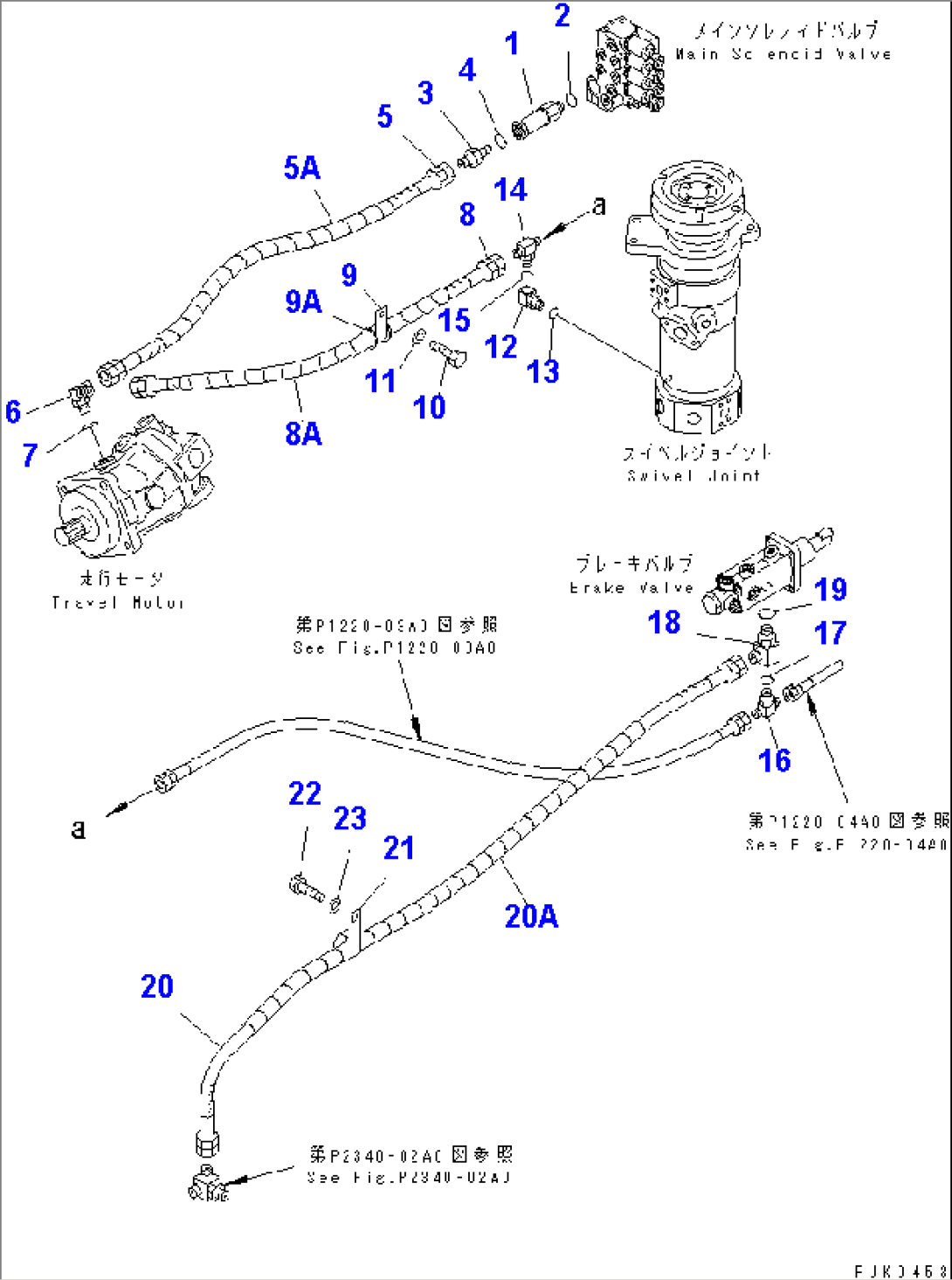

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11T-61-11310 | NIPPLE | 1001- | |
| 2 | 07002-22034 | O-RING | 1201- | |
| 07002-12034 | O-RING | 1001-1200 | ||
| 3 | 07230-20422 | UNION | 1001- | |
| 4 | 07002-22034 | O-RING | 1201- | |
| 07002-12034 | O-RING | 1001-1200 | ||
| 5 | 07102-20406 | HOSE | 1001- | |
| 5A | 08210-01805 | SPIRAL TUBE | 1216- | |
| 6 | 21J-62-16590 | ELBOW | 1201- | |
| 14X-43-14760 | ELBOW | 1001-1200 | ||
| 7 | 07002-22034 | O-RING | 1201- | |
| 07002-12034 | O-RING | 1001-1200 | ||
| 8 | 07102-20409 | HOSE | 1001- | |
| 8A | 08210-01808 | SPIRAL TUBE | 1216- | |
| 9 | 04434-53212 | CLIP | 1201- | |
| 04434-52112 | CLIP | 1001-1200 | ||
| 9A | 07095-20523 | CUSHION | 1201- | |
| 10 | 01010-81220 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 21X-62-21140 | ELBOW | 1001- | |
| 13 | 07002-22034 | O-RING | 1201- | |
| 07002-12034 | O-RING | 1001-1200 | ||
| 14 | 17A-49-16970 | TEE | 1001- | |
| 15 | 07002-22034 | O-RING | 1001- | |
| 16 | 17A-49-16970 | TEE | 1001- | |
| 17 | 07002-22034 | O-RING | 1201- | |
| 07002-12034 | O-RING | 1001-1200 | ||
| 18 | 209-62-52680 | ELBOW | 1001- | |
| 19 | 07002-22434 | O-RING | 1201- | |
| 07002-12434 | O-RING | 1001-1200 | ||
| 20 | 07102-20613 | HOSE | 1001- | |
| 20A | 08210-02911 | SPIRAL TUBE | 1216- | |
| 08210-01811 | SPIRAL TUBE | 1201-1215 | ||
| 21 | 21J-62-17170 | CLIP | 1201- | |
| 142-06-13590 | CLIP | 1001-1200 | ||
| 22 | 01010-81220 | BOLT | 1001- | |
| 23 | 01643-31232 | WASHER | 1001- |
