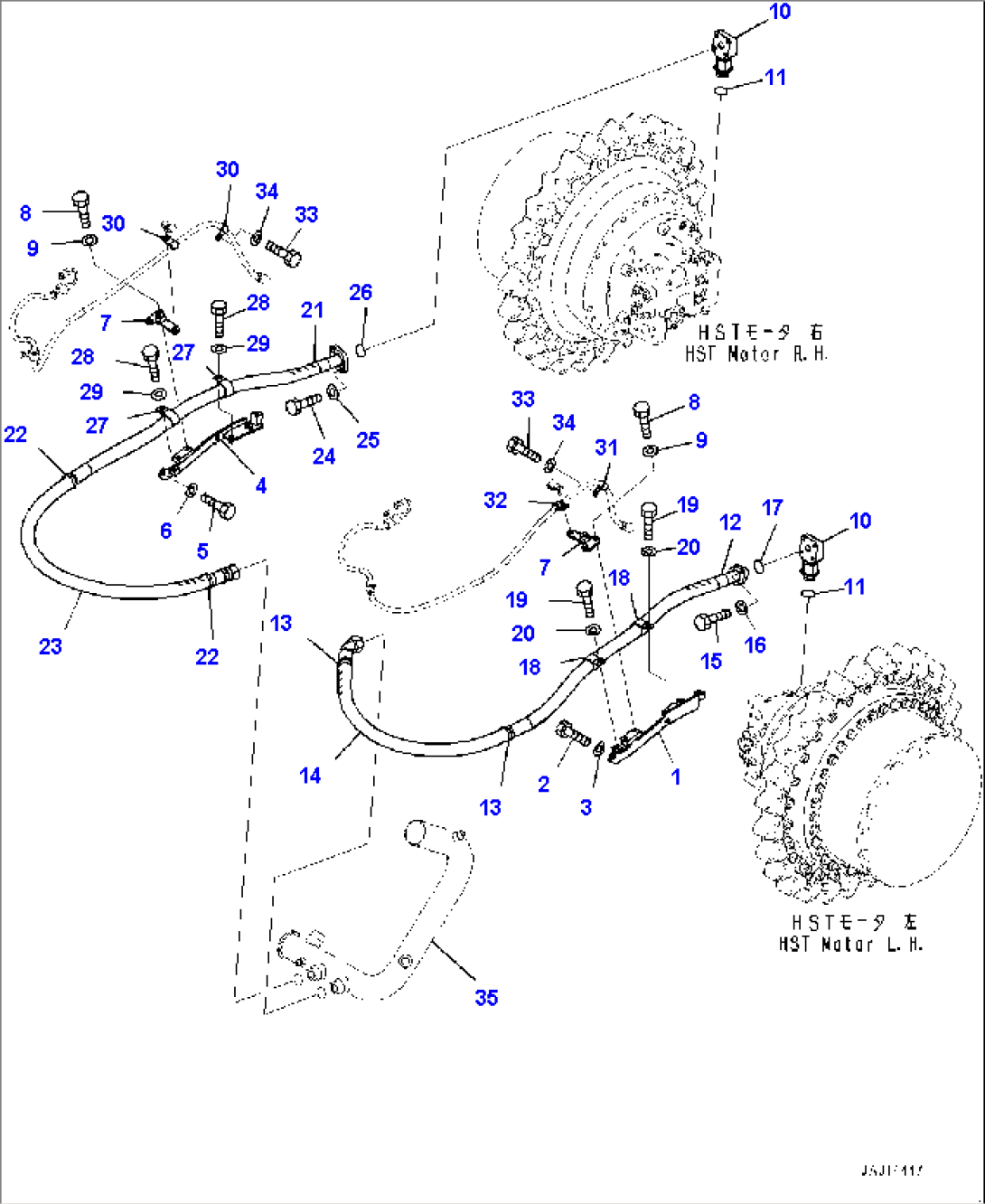

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13Y-62-13752 | Bracket | 30001- | |
| 2 | 01010-81225 | Bolt | 30001- | |
| 3 | 01643-31232 | Washer | 30001- | |
| 4 | 13Y-62-13761 | Bracket | 30001- | |
| 5 | 01010-81225 | Bolt | 30001- | |
| 6 | 01643-31232 | Washer | 30001- | |
| 7 | 13Y-62-13411 | Bracket | 30001- | |
| 8 | 01010-81025 | Bolt | 30001- | |
| 9 | 01643-31032 | Washer | 30001- | |
| 10 | 13Y-62-13254 | Elbow | 30001- | |
| 11 | 07002-63334 | O-ring | 30001- | |
| 12 | 13Y-62-13662 | Hose Assembly | 30001- | |
| 13 | 08034-20414 | Band, Black | 30001- | |
| 14 | 13Y-62-13910 | Cover | 30001- | |
| 15 | 01010-81030 | Bolt | 30001- | |
| 16 | 01643-31032 | Washer | 30001- | |
| 17 | 07000-A3032 | O-ring | 30001- | |
| 18 | 6217-21-7150 | Clip | 30001- | |
| 19 | 01010-81025 | Bolt | 30001- | |
| 20 | 01643-31032 | Washer | 30001- | |
| 21 | 13Y-62-13213 | Hose Assembly | 30001- | |
| 22 | 08034-20414 | Band, Black | 30001- | |
| 23 | 13Y-62-13920 | Cover | 30001- | |
| 24 | 01010-81030 | Bolt | 30001- | |
| 25 | 01643-31032 | Washer | 30001- | |
| 26 | 07000-A3032 | O-ring | 30001- | |
| 27 | 6217-21-7150 | Clip | 30001- | |
| 28 | 01010-81025 | Bolt | 30001- | |
| 29 | 01643-31032 | Washer | 30001- | |
| 30 | 04434-51510 | Clip | 30617- | |
| 31 | 04434-51510 | Clip | 30617- | |
| 32 | 04434-51510 | Clip | 30617- | |
| 33 | 01010-81025 | Bolt | 30001- | |
| 34 | 01643-31032 | Washer | 30001- | |
| 35 | (13Y-62-11583) | Tube | - |
