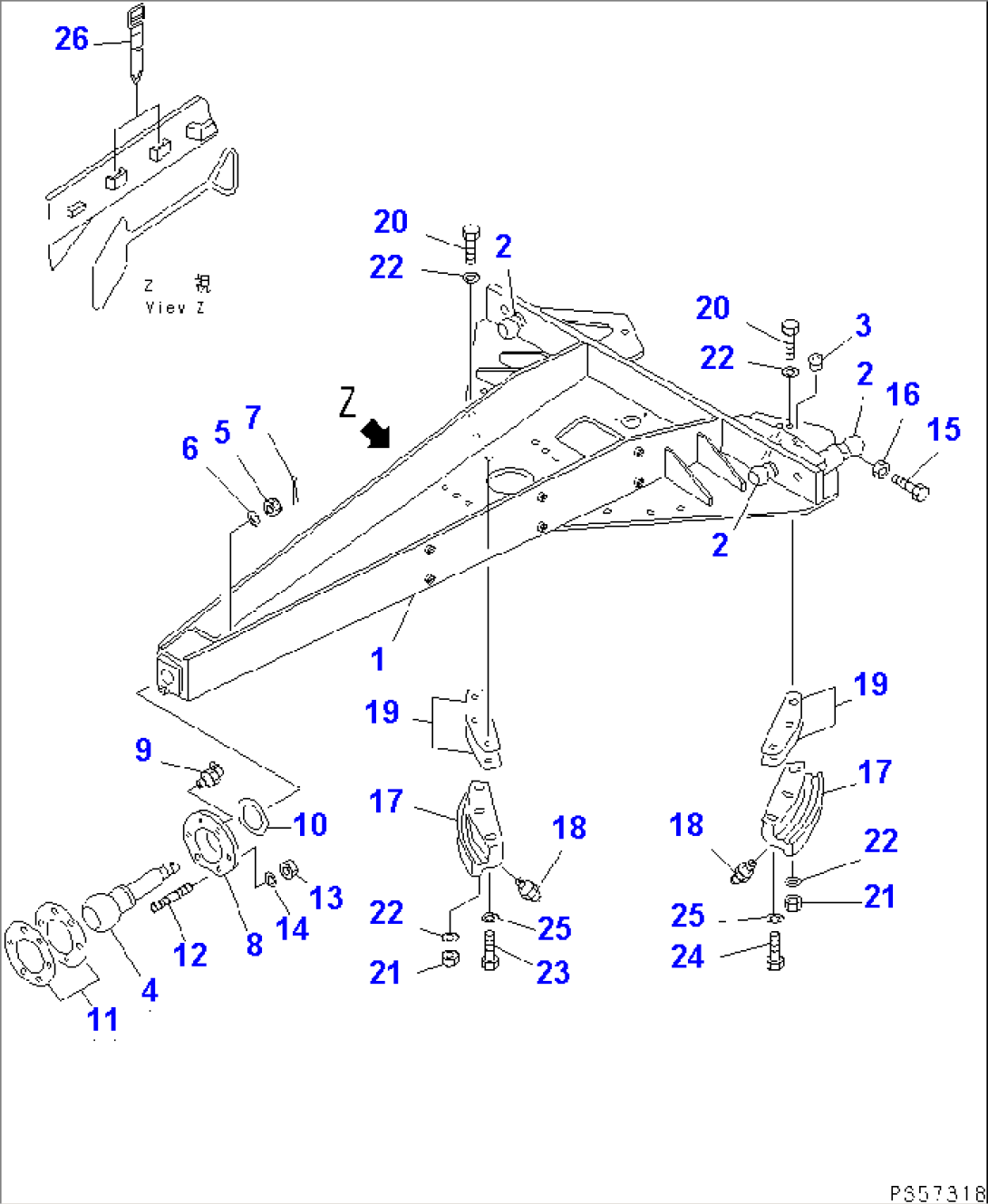

DRAWBAR (DOUBLE BLADE SPEC.)(#12001-)

Item	Part No.	Part Name	Qty	Serial No.
1	23F-979-0010	DRAWBAR,(WITH ACCUMULATOR)		12001-
	23F-979-0020	DRAWBAR,(WITHOUT ACCUMULATOR)		12001-
2	234-70-11131	STUD,BALL (WELDED)		12001-
3	234-70-31190	PLUG		12001-
4	234-70-11140	STUD,BALL		12001-
5	01590-14850	NUT		12001-
6	234-70-11230	WASHER		12001-
7	04050-18085	PIN,COTTER		12001-
8	234-70-31260	FLANGE		12001-
9	07020-00675	FITTING,GREASE		12001-
10	234-46-11190	SEAL,OIL		12001-
11	234-70-05121	SHIM ASS'Y		12001-
	\6\	SHIMÂ¤ 0.2MM		12001-
12	01124-82055	STUD		12001-
13	01580-12016	NUT		12001-
14	01643-32060	WASHER		12001-
15	01016-52480	BOLT		12001-
16	01580-12419	NUT		12001-
17	234-70-31141	GUIDE		12001-
18	07020-00000	FITTING,GREASE		12001-
19	234-70-05130	SHIM ASS'Y		12001-
	\6\	SHIMÂ¤ 0.5MM		12001-
	\6\	SHIMÂ¤ 1.0MM		12001-
20	01011-82445	BOLT		.-
	\0\01011-52445	BOLT		12001-.
21	01580-12419	NUT		12001-
22	01643-32460	WASHER		12001-
23	01011-82465	BOLT		.-
	\0\01011-52465	BOLT		12001-.
24	01011-82445	BOLT		.-
	\0\01011-52445	BOLT		12001-.
25	01643-32460	WASHER		12001-
26	232-971-6460	BAND		12001-
