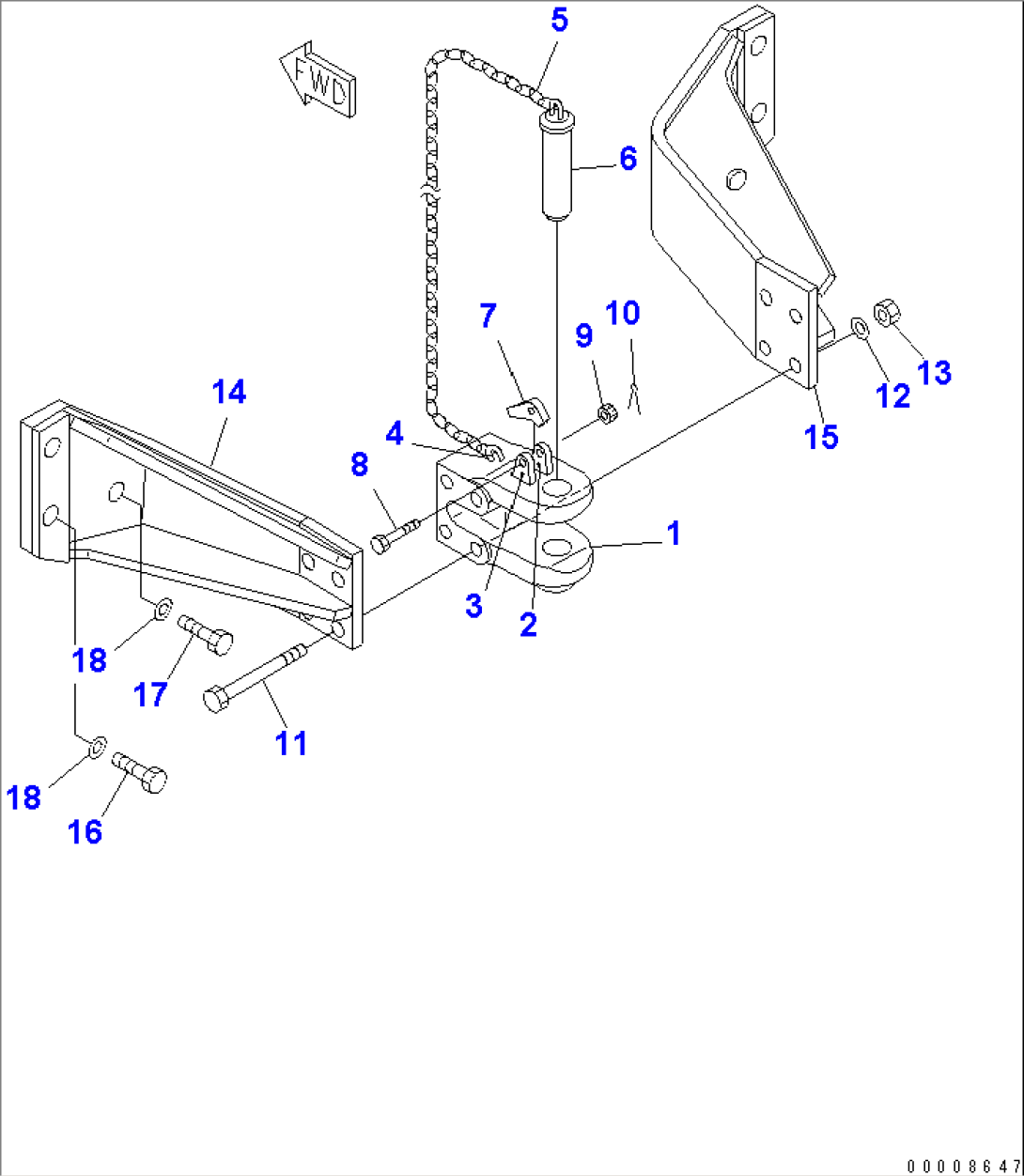

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-69-11120 | DRAWBAR ASS'Y | 3034- | |
| 2 | 131-69-11120 | PLATE (WELDED) | 3034- | |
| 3 | 131-69-11130 | PLATE (WELDED) | 3034- | |
| 4 | 09245-50060 | HOOK (WELDED) | 3034- | |
| 5 | 09245-24830 | CHAIN | 3034- | |
| 6 | 09247-45180 | PIN | 3034- | |
| 7 | 09249-00016 | LATCH | 3034- | |
| 8 | 01052-51260 | BOLT | 3034- | |
| 9 | 01592-11215 | NUT | 3034- | |
| 10 | 04050-13022 | PIN,COTTER | 3034- | |
| 11 | 144-69-11161 | BOLT | 3034- | |
| 12 | 01643-32460 | WASHER | 3034- | |
| 13 | 01582-12419 | NUT | 3034- | |
| 14 | 14X-69-11210 | BRACKET,L.H. | 3034- | |
| 15 | 14X-69-11220 | BRACKET,R.H. | 3034- | |
| 16 | 01010-83390 | BOLT | 3034- | |
| 17 | 01010-83375 | BOLT | 3034- | |
| 18 | 01643-33380 | WASHER | 3034- |
