| Item | Part No. | Part Name | Qty | Serial No. |

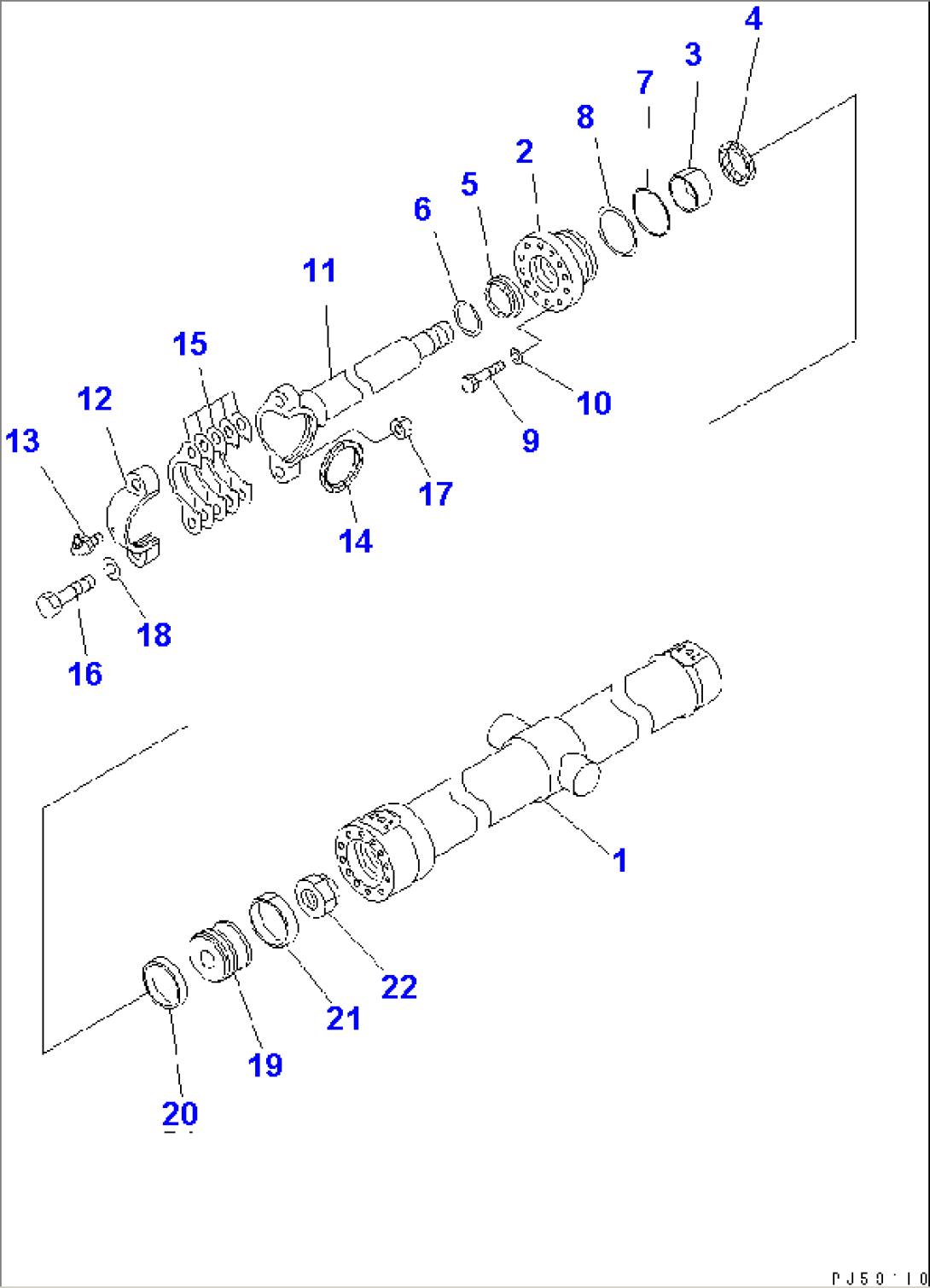

| G1 | (\8\707-04-XZ030) | CYLINDER GROUP | 12103- | |
| ==================== | ||||
| 235-63-22002 | CYLINDER ASS'Y | 12051- | ||
| 1 | 235-63-22240 | CYLINDER | 12051- | |
| 2 | 707-66-65120 | CAP | 12051- | |
| 3 | 07020-00900 | FITTING,GREASE | 11001- | |
| 4 | 707-56-12550 | SEAL,DUST (KIT) | 12051- | |
| 5 | 707-88-32170 | SHIM¤ 0.2MM | 12051- | |
| 6 | 707-88-32180 | SHIM¤ 0.5MM | 12051- | |
| 7 | 01011-82710 | BOLT | 11001- | |
| 8 | 01580-12722 | NUT | 11001- | |
| 9 | 01602-22783 | WASHER,SPRING | 11001- | |
| 10 | 707-27-10040 | HEAD,CYLINDER | 11001- | |
| 11 | 07177-06030 | BUSHING | 11001- | |
| 12 | 707-51-60211 | PACKING,ROD (KIT) | 11001- | |
| 13 | 141-63-93270 | SEAL,DUST (KIT) | 11001- | |
| 14 | 07179-12074 | RING,SNAP | 11001- | |
| 15 | 07000-12095 | O-RING (KIT) | 11001- | |
| 16 | 07146-02096 | RING,BACK-UP (KIT) | 11001- | |
| 17 | 01010-81455 | BOLT | 11001- | |
| 18 | 01643-31445 | WASHER | 12013- | |
| 19 | 235-63-22220 | ROD,PISTON | 12051- | |
| 20 | 707-66-65120 | CAP | 12051- | |
| 21 | 07020-00900 | FITTING,GREASE | 11001- | |
| 22 | 707-56-12550 | SEAL,DUST (KIT) | 12051- | |
| 23 | 707-88-32170 | SHIM¤ 0.2MM | 12051- | |
| 24 | 707-88-32180 | SHIM¤ 0.5MM | 12051- | |
| 25 | 01011-82710 | BOLT | 11001- | |
| 26 | 01580-12722 | NUT | 11001- | |
| 27 | 01602-22783 | WASHER,SPRING | 11001- | |
| 28 | 707-36-10280 | PISTON | 11001- | |
| 29 | 707-44-10180 | RING,PISTON (KIT) | 11001- | |
| 30 | 07155-01025 | RING,WEAR (KIT) | 11001- | |
| 31 | 07165-14547 | NUT,NYLON | 11001- | |
| 32 | 235-60-14311 | TUBE | 12103- | |
| 33 | 235-60-14291 | TUBE | 12103- | |
| 34 | 07000-13025 | O-RING | 12103- | |
| 35 | 01010-80830 | BOLT | 12103- | |
| 36 | 01010-80840 | BOLT | 12103- | |
| 37 | 01643-30823 | WASHER | 12103- | |
| 38 | 232-60-54830 | CLIP | 12103- | |
| 39 | 235-60-34310 | CLAMP | 12103- | |
| 40 | 01010-81055 | BOLT | 12103- | |
| 41 | 01643-31032 | WASHER | 12103- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-35280 | SERVICE KIT,DRAWBAR SIDE SHIFT CYLINDER | 12051- |
