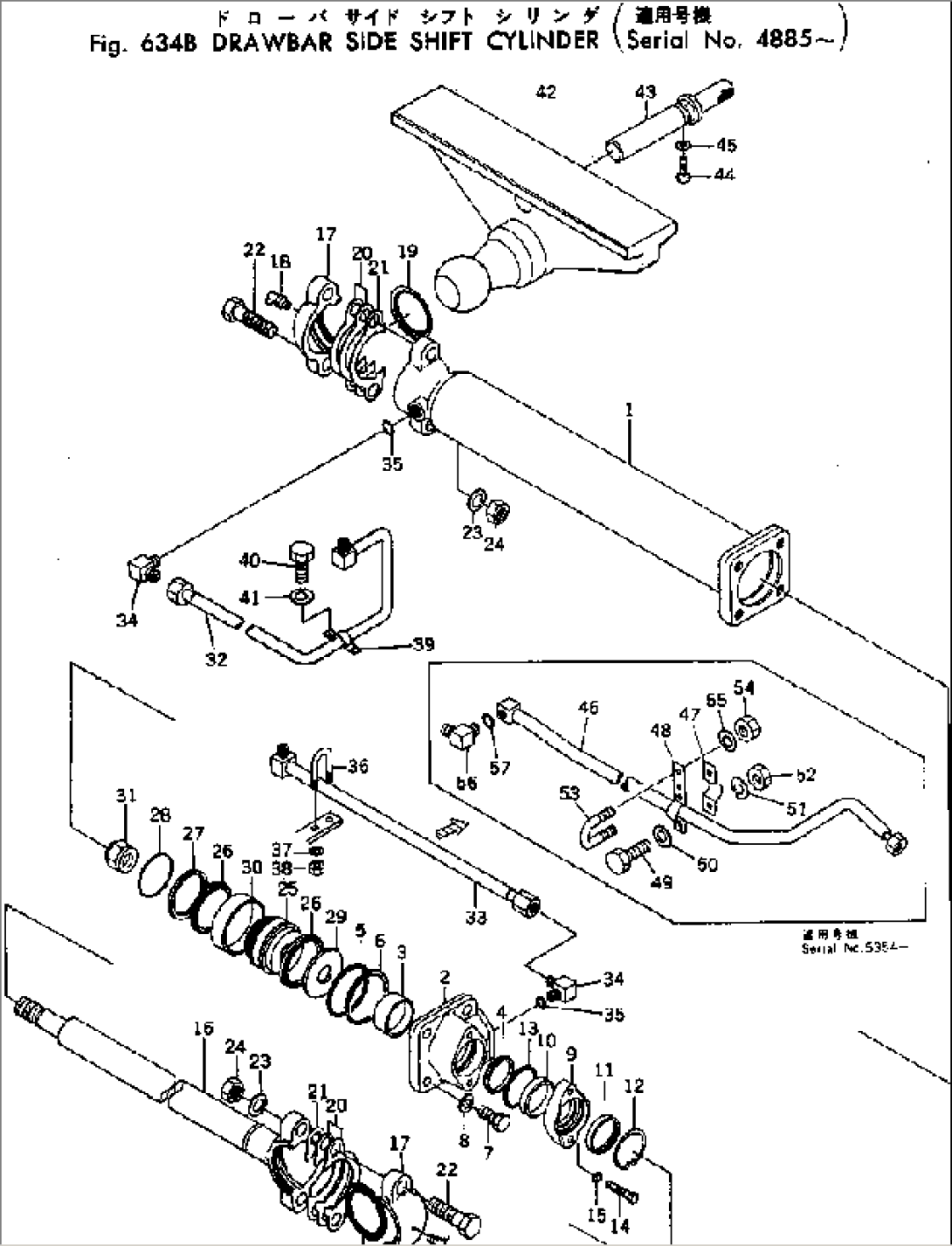

| Item | Part No. | Part Name | Qty | Serial No. |
| 232-63-22005 | CYLINDER ASS'Y | 5354- | ||
| 232-63-22004 | CYLINDER ASS'Y | 4885-5353 | ||
| 1 | 232-63-22144 | CYLINDER | 5354- | |
| 232-63-22143 | CYLINDER | 4885-5353 | ||
| 2 | 232-63-12130 | HEAD | 2591- | |
| 3 | 07177-05030 | BUSHING | 2591- | |
| 4 | 236-63-62173 | PACKING (KIT) | 2591- | |
| 5 | 07000-12085 | O-RING (KIT) | 2591- | |
| 6 | 07146-02086 | RING (KIT) | 2591- | |
| 7 | 01010-31645 | BOLT | 2975- | |
| 8 | 01602-01648 | WASHER | 2591- | |
| 9 | 07178-05035 | GLAND | 2591- | |
| 10 | 07177-05012 | BUSHING | 2591- | |
| 11 | 07016-00507 | SEAL (KIT) | 2591- | |
| 12 | 07179-00069 | RING | 2591- | |
| 13 | 07000-03065 | O-RING (KIT) | 2591- | |
| 14 | 01010-31240 | BOLT | 2975- | |
| 15 | 01602-01236 | WASHER | 2591- | |
| 16 | 232-63-22120 | ROD | 2591- | |
| \6\ | HEAD | 2591- | ||
| 17 | 07138-00980 | CAP | 2591- | |
| 18 | 07020-00900 | FITTING | 2591- | |
| 19 | 232-63-12390 | SEAL (KIT) | 2591- | |
| 20 | 07139-00902 | SHIM¤ 0.2MM (KIT) | 2591- | |
| 21 | 07139-00905 | SHIM¤ 0.5MM (KIT) | 2591- | |
| 22 | 01010-32075 | BOLT | 2975- | |
| 23 | 01602-02060 | WASHER | 2591- | |
| 24 | 01580-02016 | NUT | 2975- | |
| 232-61-00010 | PISTON SUB ASS'Y | 2591- | ||
| 25 | 232-63-12471 | PISTON | 3705- | |
| 26 | 232-63-12451 | PACKING | 2591- | |
| 27 | 232-63-12490 | RETAINER | 3705- | |
| 28 | 112-63-79550 | RING (KIT) | 3705- | |
| 29 | 232-63-12480 | RETAINER | 2591- | |
| 30 | 07155-00925 | RING (KIT) | 2591- | |
| 31 | 07165-12729 | NUT | 3705- | |
| 32 | 232-63-22192 | TUBE | 4885-5353 | |
| 33 | 232-63-22290 | TUBE | 4885-5353 | |
| 34 | 07235-10422 | ELBOW | 4885- | |
| 35 | 07002-12034 | O-RING (KIT) | 2591- | |
| 36 | 07283-22236 | CLIP | 4885-5353 | |
| 37 | 01643-01032 | WASHER | 2591-5353 | |
| 38 | 01599-01011 | NUT | 2975-5353 | |
| 39 | 07282-02288 | CLAMP | 4885-5353 | |
| 40 | 01010-51020 | BOLT | 4885-5353 | |
| 41 | 01602-21030 | WASHER | 4885-5353 | |
| 42 | 232-71-12312 | BRACKET | 2591- | |
| 232-71-12323 | SHAFT (WELDED) | 5005- | ||
| 232-71-12322 | SHAFT (WELDED) | 2591-5004 | ||
| 43 | 232-71-12331 | PIN | 2101- | |
| 44 | 232-71-12341 | BOLT | 2975- | |
| 45 | 01602-21030 | WASHER | 2101- | |
| 46 | 232-60-14380 | TUBE | 5354- | |
| 47 | 232-870-8320 | BAND | 5354- | |
| 48 | 232-870-8330 | BAND | 5354- | |
| 49 | 01010-50830 | BOLT | 5354- | |
| 50 | 01643-30823 | WASHER | 5354- | |
| 51 | 01602-20825 | WASHER | 5354- | |
| 52 | 01580-10806 | NUT | 5354- | |
| 53 | 07283-22236 | CLIP | 5354- | |
| 54 | 01599-01011 | NUT | 5354- | |
| 55 | 01643-31032 | WASHER | 5354- | |
| 56 | 07235-10422 | ELBOW | 5354- | |
| 57 | 07002-12034 | O-RING | 5354- |
