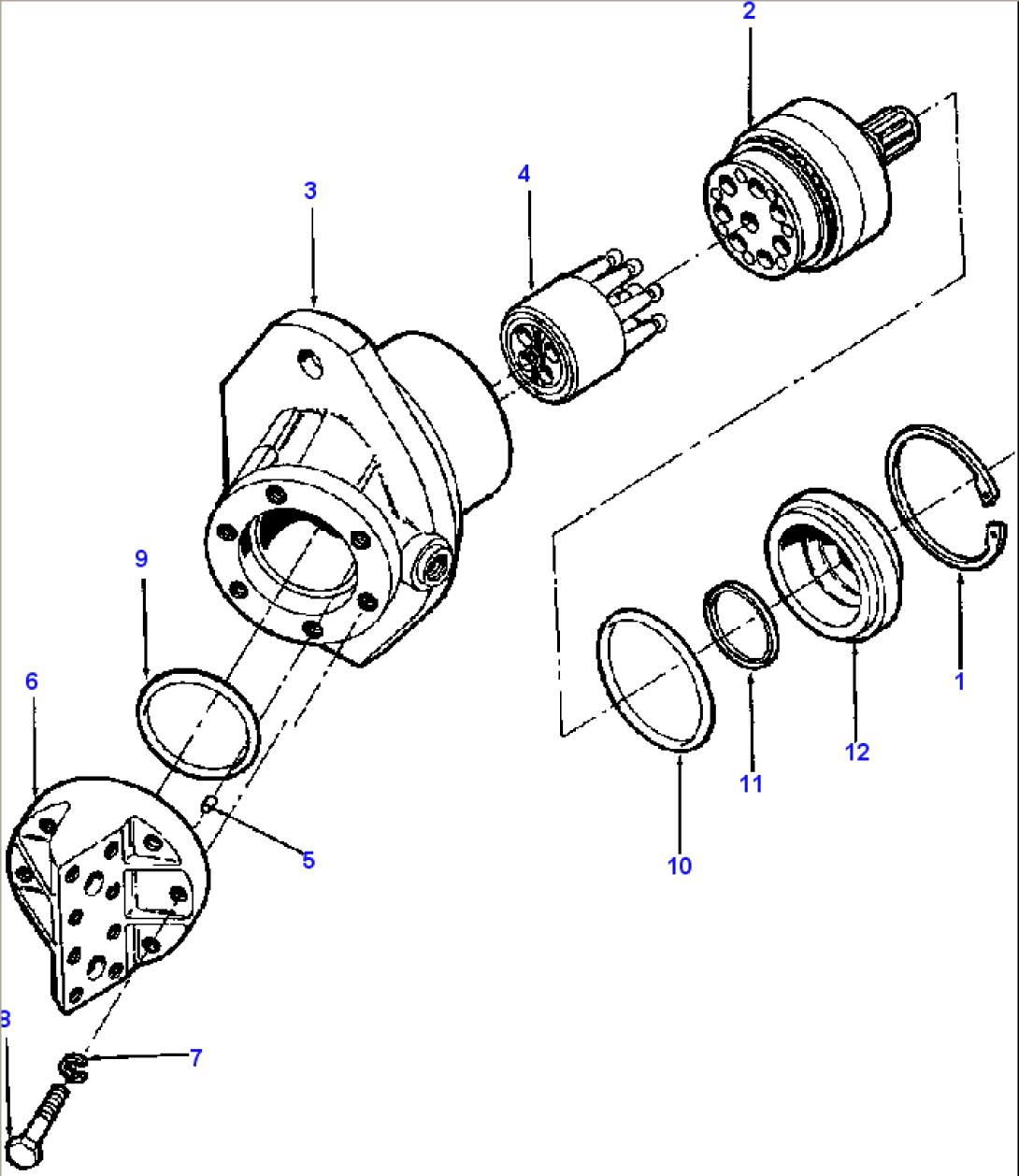

| Item | Part No. | Part Name | Qty | Serial No. |
| 1228 963 H92 | MOTOR, DRUM DRIVE | |||
| 1 | 1279 032 H1 | RING, RETAINING | ||
| 2 | (NSS) | SHAFT & BEARING ASSEMBLY | ||
| 3 | (NSS) | HOUSING | ||
| 4 | (NSS) | ROTARY GROUP | ||
| 5 | (NSS) | PIN, DOWEL | ||
| 6 | (NSS) | PLATE, PORT | ||
| 7 | 933 965 R1 | WASHER, LOCK | ||
| 8 | 930 265 R1 | BOLT | ||
| 1279 058 H91 | KIT, SEAL | |||
| 9 | (NSS) | O-RING | ||
| 10 | (NSS) | O-RING | ||
| 11 | (NSS) | SEAL, OIL | ||
| 12 | (NSS) | COVER | ||
| F1 - FOR MOUNTING HARDWARE SEE PG 15-007 | ||||
